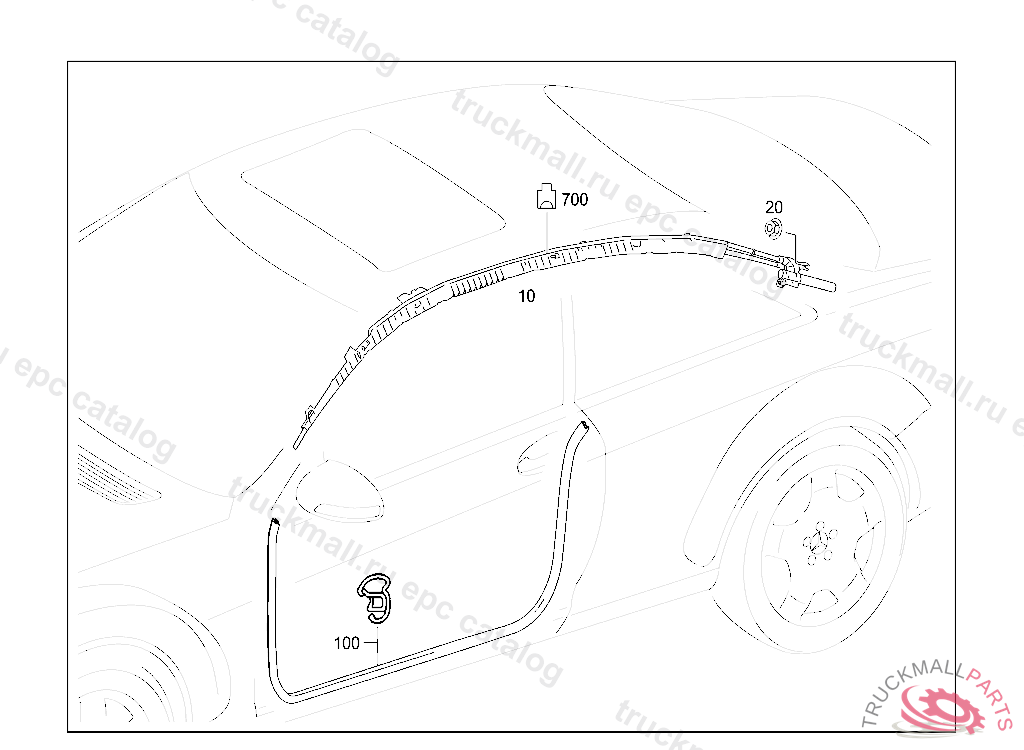

CL 600 - 216.376 - 69 PANELLING AND LINING

10

WINDOWBAG RIGHT

10

WINDOWBAG LEFT

20

NUT BRACKET TO BODY SHELL M6

20

NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY

100

EDGE GUARD LEFT FRONT DOOR

100

EDGE GUARD RIGHT FRONT DOOR

700

REP.SET CONTACT FRONT LEFT BELT TENS. R12/1, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41, CABLE TIE5 X A 002 997 24 90
