Поз.
Артикул
Описание

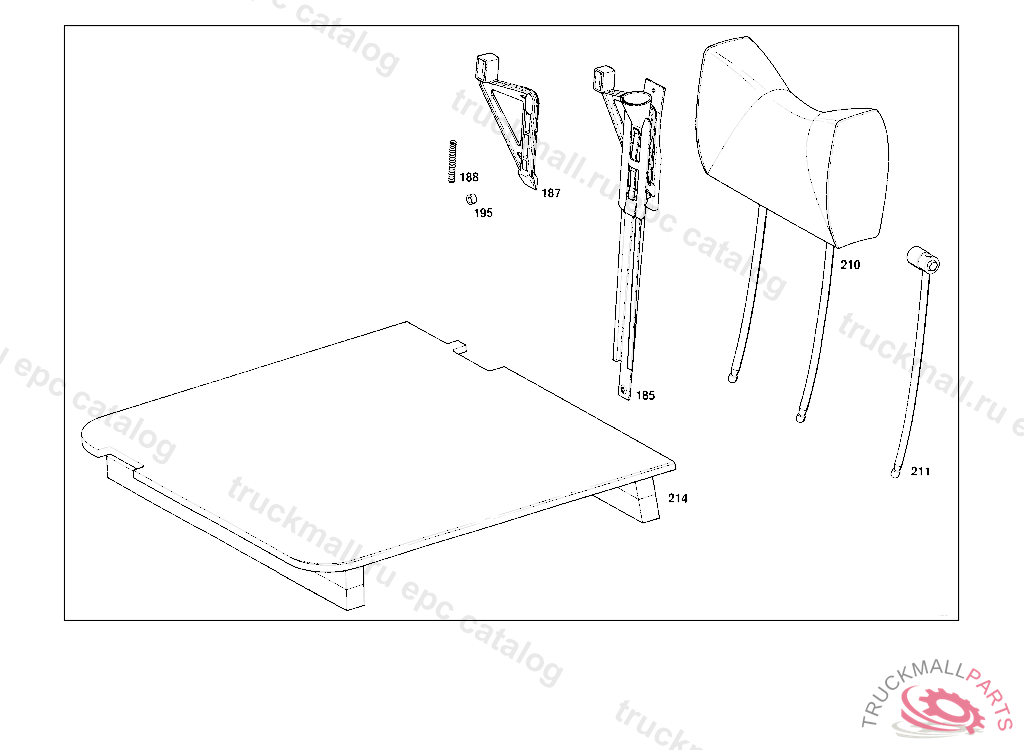

185
RAIL LEFT
187
CONTROL MECHANISM
188
SPRING
195
SPACER TUBE VALVE TO BRACKET
210
HEADREST LEATHER, STATE COLOR NUMBER WHEN ORDERRING002417
211
CLAMP LEFT, 100.012 FROM CHASSIS 001902 EXCEPT FOR:001928-001940,107.023,044 FROM CHASSIS 000001,CONTINUED,SEE FOOTNOTE 66
214
FOOTREST REAR COMPARTMENT,LEFT, STATE COLOR NUMBER WHEN ORDERING
999
SCREW
999
LOCK WASHER FITTING TO BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER T-FITTING TO BRACKET
999
NUT
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
BULB2W
999
BULB12V/5W
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
WASHER COVERING TO CYCLONE AIR TRAP
999
WASHER , Replaced By: N009021004207
999
WASHER CHAIN TO ENGINE COMPARTMENT INSULATION, ON VEHICLES HAVING MERCEDES-BENZ BODY UP TO CHASSIS 037773 ON VEHICLES HAVING NO MERCEDES-BENZ BODY UP TO CHASSIS 037601 EXCEPT FOR 037688,037693,037696,037735,037756. ALSO INSTALLED ON 037783
999
WASHER DIAGNOSIS BOX TO BRACKET
999
WOOD SCREW
999
WOOD SCREW
999
WOOD SCREW , 016 FROM CHASSIS 034564, ALSO INSTALLED ON, SEE FOOTNOTE 20, 018,019 FROM CHASSIS 035564, ALSO INSTALLED ON, SEE FOOTNOTE 21
999
WOOD SCREW
999
SCREW
999
SCREW
999
SCREW
999
SCREW
999
SCREW LINE TO CROSS MEMBER
999
SCREW REGULATOR AND CUT-OUT M 6X12
999
SCREW FUEL CONSUMPTION DISPLAY
999
SHEET METAL SCREW
999
SHEET METAL SCREW
999
SHEET METAL SCREW , Replaced By: N007982003203
999
SHEET METAL SCREW , Replaced By: N007982003238
999
SHEET METAL SCREW
999
SHEET METAL SCREW
999
SHEET METAL SCREW COVERING TO HOUSING
999
SHEET METAL SCREW
999
SHEET METAL SCREW VALVE TO UNIT PARTITION PANEL
999
SHEET METAL SCREW , Replaced By: N000000000453
999
SHEET METAL SCREW REFLECTOR TO BUMPER
999
SHEET METAL SCREW TACHOGRAPH
999
SHEET METAL SCREW , Replaced By: N007981002322
999
SHEET METAL SCREW BLIND PLUG SOCKET
999
LOCK PLATE RELEASE LEVER TO SHAFT
999
TOOTHED WASHER MASKED STOP LAMP
999
TOOTHED WASHER BALANCING PLATES TO FAN AND TO PULLEY
999
SCREW HANDLE TO LID
999
SCREW
999
SCREW , 000943
999
NUT , Replaced By: N304032008006
999
NUT BALL PIVOT TO LEVER
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
NUT PLUG SOCKET TO BRACKET,5 906887
999
SCREW CAB FLOOR COVERING M 6X25
999
SCREW , Replaced By: N304017006020
999
SCREW , Replaced By: N304017006018
999
SCREW COVER PLATE TO BRACKET
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
LOCK WASHER BRACKET TO COVERING
999
LOCK WASHER BRACKET TO COVERING
999
WASHER
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
SCREW
999
CYLINDRICAL PIN
999
SHEET METAL SCREW MODULE TO HOUSING
999
SEAL INSIDE 4000 MM
999
WASHER , UP TO CHASSIS107.022 004444 107.023 012129 107.024 019861
999
BUSHING
999
SPACER TUBE BELT END FITTINGTO SIDE MEMBER
999
WASHERFA.KLIPPAN
999
SCREW SELF-REELING DEVICE TO CENTRAL PILLAR
999
WASHER GUIDE BRACKET TO TOP OF CENTRAL PILLAR
999
SCREW , Replaced By: A1159904801
999
CUSHION FRAME LEFT AND RIGHT, 010 FROM CHASSIS 130558, 110 FROM CHASSIS 225648
999
SEALING RAIL 2200 MM
999
FASTENER
999
ADAPTER WINDOW RUN TO FRONT DOOR,TOP 1.0 MM
999
ANGLE , Replaced By: A1109100412
999
ADJUSTER
999
HEADREST COMPLETE,BUT LESS COVER, 100.012,014,015,016 FROM CHASSIS 001237
999
HEADREST , STATE COLOR NUMBER WHEN ORDERING 100.012,014,015,016 FROM CHASSIS 001237
999
CLAMP RIGHT, 100.012 FROM CHASSIS 001902 EXCEPT FOR:001928-001940,107.023,044 FROM CHASSIS 000001,CONTINUED,SEE FOOTNOTE 66
999
FOOTREST RIGHT,001120
999
RAIL RIGHT
999
FOOTREST VELOURS CARPET, STATE COLOR NUMBER WHEN ORDERING
999
PAD LATERAL OUTSIDE RIGHT, 000893
999
PAD LATERAL OUTSIDE LEFT, FROM CHASSIS 000893
999
PAD CENTRAL RIGHT, UP TO CHASSIS 000892
999
PAD CENTRAL LEFT, 000893
999
PAD LATERAL INSIDE LEFT, 002293
999
PAD LATERAL INSIDE LEFT, 000893
999
PAD , Replaced By: A1009142016
999
PAD , Replaced By: A1009142216
999
PAD , Replaced By: A1009141716
999
PAD
999
BACKREST BRACKET RIGHT INSIDE
999
BACKREST BRACKET RIGHT OUTSIDE
999
COVER RIGHT,LEATHER, STATE COLOR NUMBER WHEN ORDERING 001237
999
COVER LEFT WITH LEATHER COVER, STATE COLOR NUMBER WHEN ORDERING 001237
999
COVER RIGHT, FROM CHASSIS 000893-001236
999
COVER LEFT, FROM CHASSIS 000893-001236
999
BACKREST RIGHT, STATE COLOR NUMBER WHEN ORDERING FROM CHASSIS 001237
999
BACKREST LEFT LEATHER, STATE COLOR NUMBER WHEN ORDERING, AND PLEASE STATE WHETHER FRONT SEAT BACKREST SHOULD BE MADE READY FOR INSTALLATION OF HEADRE ST 001237
999
SEAT CUSHION , STATE COLOR NUMBER WHEN ORDERING
999
BACKREST RIGHT LEATHER, STATE COLOR NUMBER WHEN ORDERING, AND PLEASE STATE WHETHER FRONT SEAT BACKREST SHOULD BE MADE READY FOR INSTALLATION OF HEADRE ST 000893-001236
999
SEAT CUSHION , STATE COLOR NUMBER WHEN ORDERING RIGHT FRONT SEAT CUSHION FOR U.S.A. UP TO CHASSIS 002403,EXCEPT FOR 002007,FROM CHASSIS,SEE SA 56038
999
COVER (COMPLETELY SEWN), STATE COLOR NUMBER WHEN ORDERING FROM CHASSIS 000943
999
BACKREST LEFT, STATE COLOR NUMBER WHEN ORDERING FROM CHASSIS 000893-001236
999
PAD CENTRAL RIGHT, FROM CHASSIS 000893
999
COVER RIGHT,LEATHER, STATE COLOR NUMBER WHEN ORDERING 000892
999
BACKREST RIGHT LEATHER, STATE COLOR NUMBER WHEN ORDERING, AND PLEASE STATE WHETHER FRONT SEAT BACKREST SHOULD BE MADE READY FOR INSTALLATION OF HEADRE ST 000892
999
CUSHION FRAME , Replaced By: A1159104322
999
COVER
999
BACKREST , Replaced By: A1009101632
999
FRONT SEAT RIGHT, STATE COLOR NUMBER WHEN ORDERING, AND PLEASE STATE WHETHER FRONT SEAT BACKREST SHOULD BE MADE READY FOR INSTALLATION OF HEADRE ST 001237
999
FRONT SEAT LEFT, FROM CHASSIS 001237
999
FRONT SEAT RIGHT, STATE COLOR NUMBER WHEN ORDERING FROM CHASSIS 000893-001236
999
FRONT SEAT LEFT, STATE COLOR NUMBER WHEN ORDERING FROM CHASSIS 000893-001236
999
COVER , Replaced By: A1009101847
999
FRONT SEAT RIGHT, STATE COLOR NUMBER WHEN ORDERING UP TO CHASSIS 000892
999
SAFETY BELT ,002391
999
SAFETY BELT , Replaced By: A1008603885, +001A1008600769
999
GARNISH MOULDING TOP
999
GARNISH MOULDING , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 000995, Replaced By: A1008050881, +001A1006801692, +001A1006801792, +001A1006801992, +001A1006890670
999
BUTTON
999
THREADED PIN , FROM CHASSIS 000186 ALSO INSTALLED ON: 000148,000149,000155,000160,000161,000165,000168,000171,000175,000177,000178,000179,000 180,000181,000182
999
LEVER
999
SWITCH
999
SWITCH , Replaced By: A1008008073
999
SWITCH
999
SWITCH , Replaced By: A1008002373
999
LINE , Replaced By: A1008004583
999
LINE *** 1451 MM
999
CONTROL UNIT , Replaced By: A1008000950
999
CONTROL UNIT , Replaced By: A1008000550
999
CONNECTOR (AT TUNNEL,LEFT)
999
CONTROL LEVER
999
CONTROL UNIT , UP TO CHASSIS 000185 EXCEPT FOR 000148,000149,000155,000160,000161,000165,000168,000171,000175,000177,000178-000182.
999
GLASS PANE LATERAL RIGHT
999
FRAME LATERAL RIGHT
999
GUIDE REAR RIGHT
999
GLASS PANE , UP TO CHASSIS 000791,ALSO INSTALLED IN 000795
999
FRAME RIGHT
999
GLASS PANE LATERAL RIGHT
999
CONNECTION RIGHT
999
INNER MOULDING , STATE COLOR NUMBER WHEN ORDERRING
999
PANELLING RIGHT
999
PANELLING , Replaced By: A1007101018
999
WINDOW RUN LATERAL TOP RIGHT
999
PARTITION PANEL , UP TO CHASSIS 000791 ALSO INSTALLED ON 000795
999
WINDOW REGULATOR , UP TO CHASSIS 000791,ALSO INSTALLED IN 000795
999
RAIL RIGHT
999
LINING RIGHT ENTRANCE, STATE COLOR NUMBER WHEN ORDERING FOR COLOR AND CODE NUMBERS,SEE FOOTN.29 AND 30
999
INNER MOULDING RIGHT, ENCLOSE SAMPLE WHEN ORDERING
999
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
999
SCREW BELT LOCK TO FLOOR BELOW REAR SEAT
999
SCREW
999
PLUG , Replaced By: A0085453728, +002A0035452626, +001A0085453828
999
WASHER
999
WASHER
999
LATCH
999
LATCH , Replaced By: A0009880664
999
LOCKING CAP. CAP , NO.9051I.......I.......I.......I.......I....... I, Replaced By: A6319973286
999
SEALING SECTION , Replaced By: A1157250965
999
FOAM PLASTICS FRONT ROOF RAIL
999
CARDBOARD3 MM, ORDER BY THE METER
999
LEATHER *** 210X160 MM, STATE COLOR NUMBER WHEN ORDERING002417
999
STRIP 18 X 1470 MM
999
FOAM PLASTICS 10 MM, ORDER BY THE METER
999
FELT 2 X 15 X 50 MM, RADIATOR GRILLE, AT INSIDE PANEL
999
FOAM PLASTICS , Replaced By: A0009831298
999
LEATHER ORDER BY THE METER, STATE COLOR NUMBER WHEN ORDERING
999
FOAM PLASTICS , Replaced By: A0009833598
999
FOAM PLASTICS , Replaced By: A0009833598
999
CAP
999
CAP MAKE REPA
999
PLUG , Replaced By: A0025454928
