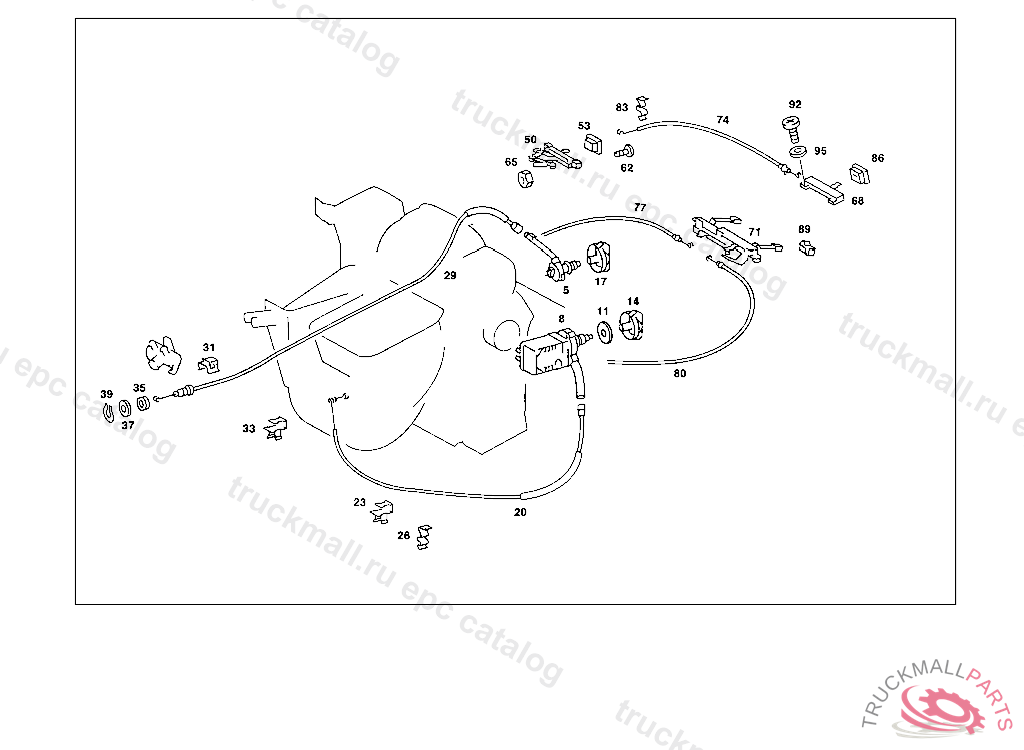

Поз.
Артикул
Описание
5
OPERATING UNIT RIGHT DOUBLE CONTROL VALVE WIRE PULL
5
OPERATING UNIT LEFT
8
SWITCH
11
WASHER
11
SPACER WASHER , Replaced By: A1244630077
14
KNOB BLOWER SWITCH
14
KNOB BLOWER SWITCH
17
KNOB HEATER OPERATION
17
KNOB HEATER OPERATION
20
WIRE CABLE MAIN AIR FLAP, UP TO MODEL YEAR '81
20
WIRE CABLE WIRE CABLE TO AIR FLAP
23
CLIP
26
CLAMP WIRE CABLE TO BLOWER HOUSING
29
WIRE CABLE RIGHT DOUBLE CONTROL VALVE
29
WIRE CABLE LEFT DOUBLE CONTROL VALVE
33
CLIP
35
GROMMET , FROM CHASSIS: 000,002,010 013352 EXCEPT FOR: 013355,013825 015 010341 EXCEPT FOR: 010347,010405,010406 100,102,103,110,112 029021 EXCEPT FOR: 029562 115 013141
37
WASHER
39
LOCK RINGTO 000 553 37 01,000 553 39 01,
68
OPERATING UNIT DEFROSTER NOZZLE FLAP
71
OPERATING UNIT DEFROSTER NOZZLE FLAP
74
WIRE CABLE FROM OPERATING UNIT TO DEFROSTER NOZZLE FLAP, LEGROOM
77
WIRE CABLE FROM OPERATING UNIT TO DEFROSTER NOZZLE FLAP, LEGROOM
80
WIRE CABLE FROM OPERATING UNIT TO DEFROSTER NOZZLE FLAP, LEGROOM
80
WIRE CABLE FROM OPERATING UNIT TO DEFROSTER NOZZLE FLAP, LEGROOM
83
CLAMP WIRE CABLE TO BLOWER HOUSING
86
OPERATING HANDLE DEFROSTER NOZZLE FLAP CONTROL
92
SCREW
95
WASHER COMPRESSED AIR LINE TO BRACKET
95
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
