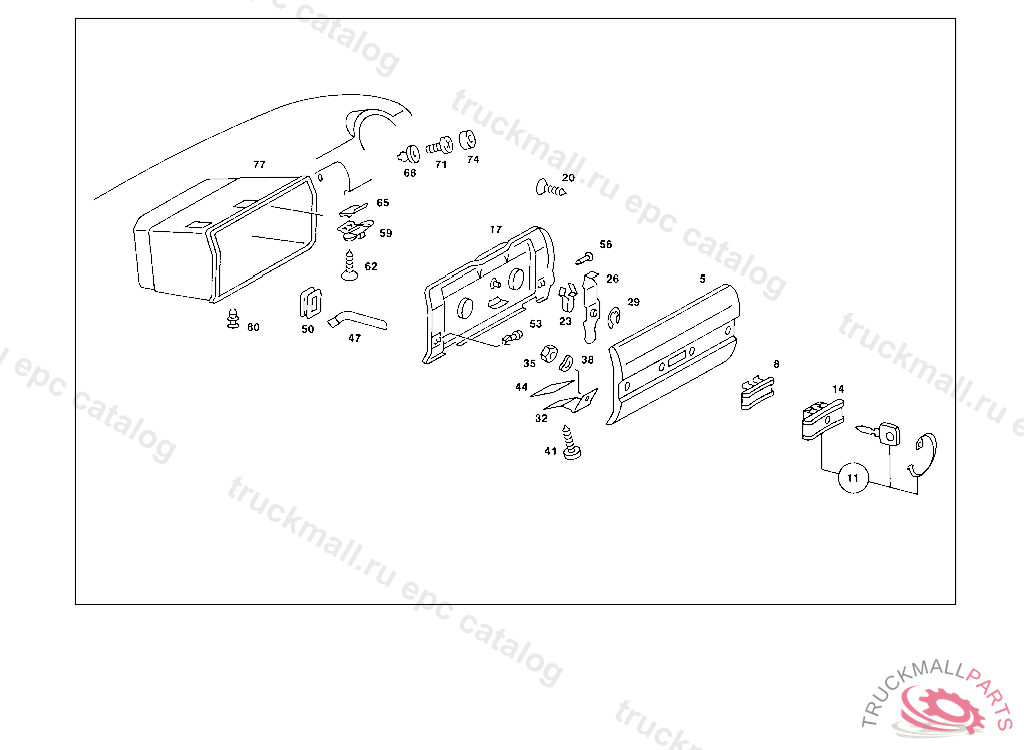

Поз.
Артикул
Описание
5
GLOVE COMPARTMENT LID OUTSIDE PART
5
GLOVE COMPARTMENT LID
8
HANDLE
11
FASTENER WITH KEY, WITH LOCK NUMBER UNDEFINED,FOR STORAGE PURPOSES ONLY
14
FASTENER LESS KEY, STATE LOCK NUMBER WHEN ORDERING
17
GLOVE COMPARTMENT LID INSIDE PART, 000 032226 003 014991 007 018380 102,103 021337 105 029136
17
COVER INSIDE PART, 023 026486 033 018380 123 021337 130 029136
17
COVER , 020 026485 023 032225 026,028 014990 030 013829 033 018379 120 036995 123,125 021336 126 016786 130,132 029135, Replaced By: A1236802998, +001A1236890132, +001A1236890434
17
COVER , 023 026485 033 018379 123 021336 130 029135, Replaced By: A1236890583, +001A1236890132, +001A1236890434
20
SHEET METAL SCREW
23
SPRING
26
CLAMP , 023 026485 033 018379 123 021336 130 029135, Replaced By: A1236890132, +001A1236890434, +001A1236890583
26
CLAMP , 023 026485 033 018379 123 021336 130 029135, Replaced By: A1236890132, +001A1236890434, +001A1236890583
26
CLAMP , 023 026486 033 018380 123 021337 130 029136
29
LOCK PLATE
32
HINGE
35
NUT
38
SPRING WASHER ALTERNATOR CONNECTION D+
41
SHEET METAL SCREW BRACKET TO PROTECTIVE GRILL
44
LOCK GLOVE COMPARTMENT LID TO INSTRUMENT PANEL
47
STOP
50
GROMMET
53
PIN
56
PIN
59
STRIKER
62
SHEET METAL SCREW
65
LOCK
68
TREENAIL
71
SCREW
74
LOCKING CAP
77
GLOVE COMPARTMENT
77
GLOVE COMPARTMENT
80
RIVET
