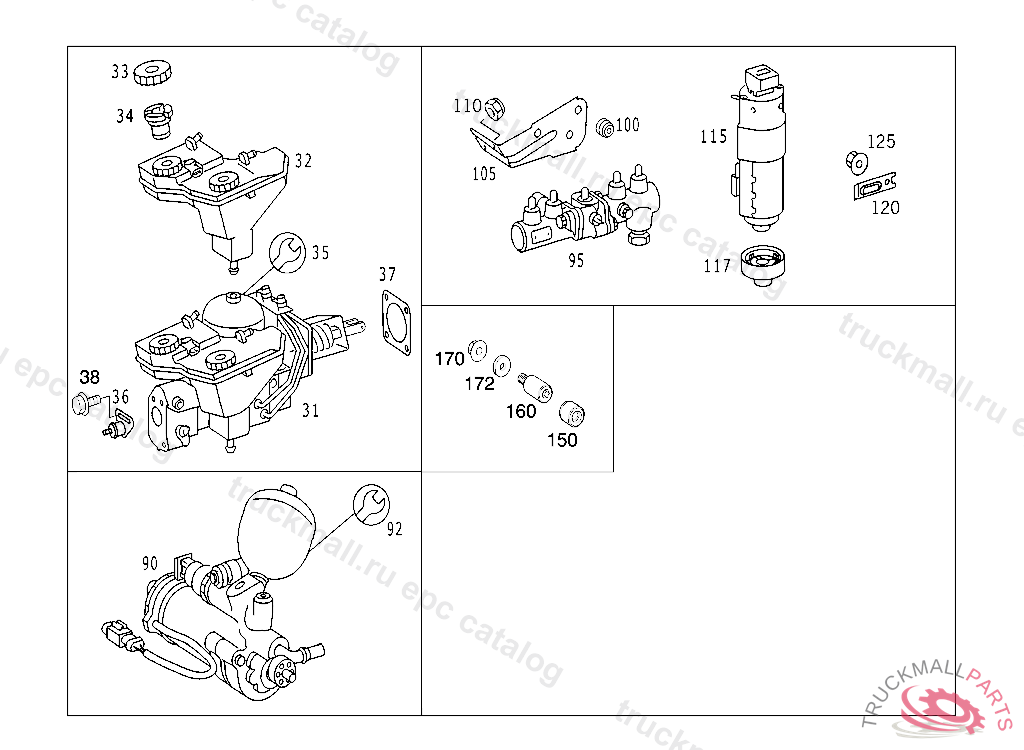

Поз.
Артикул
Описание
31
BRAKE BOOSTER ASSEMBLY
32
DASHPOT PARTS KIT, ORDER WHEN USING CASE OR STRAINER
33
COVER
34
STRAINER
35
REPAIR KIT PRESSURE ACCUMULATOR
36
BRACKET
37
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL
38
HEXAGON HEAD BOLT LINE MOUNTING M6X10
90
HYDRAULIC PUMP BRAKE BOOSTER ASSEMBLY
92
REPAIR KIT PRESSURE ACCUMULATOR
95
CHARGE PLUNGER UNIT
100
RUBBER BUFFER SERVICE VALVE TO BRACKET
105
BRACKET
110
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
115
PUMP CHARGING PUMP
117
RUBBER BUFFER CHARGING PUMP
120
BRACKET CHARGING PUMP
125
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
150
RUBBER BUFFER BRAKE POWER REGULATOR TO BRACKET
160
THREADED UNION BRAKE POWER REGULATOR TO BRACKET
170
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
170
NUT COMPRESSED AIR LINE MOUNTING,5 908243
172
WASHER COMPRESSED AIR LINE TO BRACKET
