Поз.
Артикул
Описание

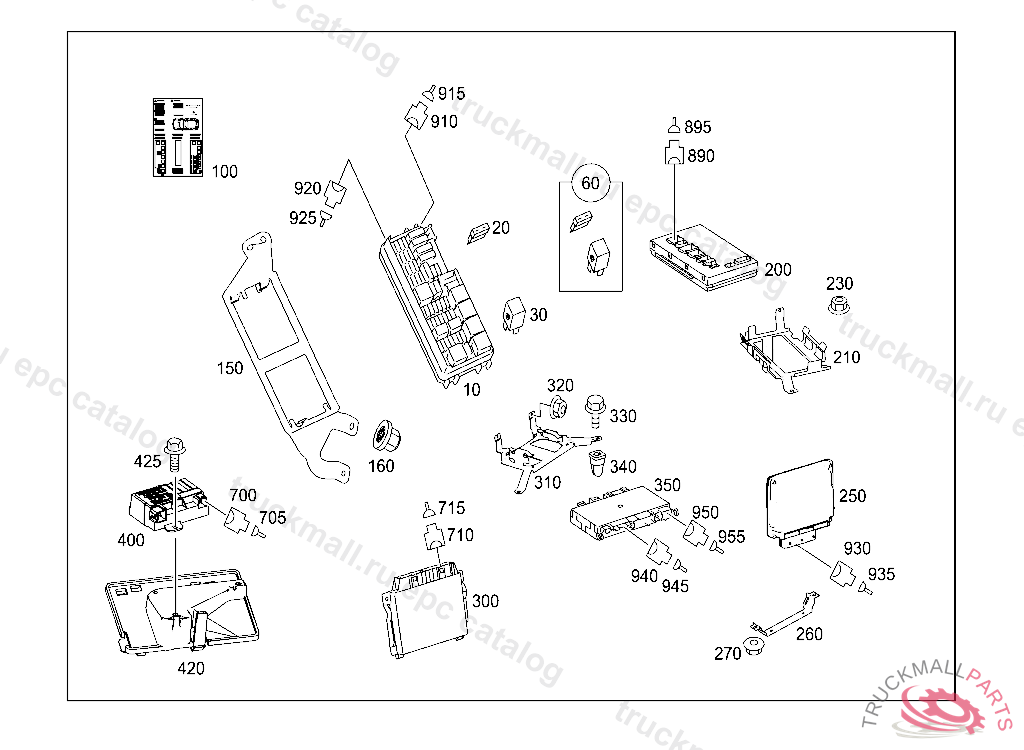

10
RELAY FUSE AND RELAY MODULE, REAR, A 15574520120605
10
RELAY UNIT FUSE AND RELAY MODULE, REAR, A 06859520070928808 A 15574420120605
20
FUSE LINKE-40
20
FUSE LINK30 A, Replaced By: N000000007654
20
FUSE LINK NATURAL WHITE 25A,V 202043
20
FUSE LINK40 A (MAXI)
20
FUSE LINK IN CASE OF SUBSEQUENT INSTALLATION
20
FUSE LINK BLUE 15A,V 202043
20
FUSE LINK10A
20
FUSE LINK20 A
30
RELAY HEADLAMP WIPER/WASHER, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806, Replaced By: A0035420219
30
RELAY , Replaced By: A0045452905
30
PREGLOW TIME RELAY PLUG POSITION: F30
30
RELAY STARTING MOTOR
30
RELAY MAKE PULSE
30
RELAY TWO-TONE HORN, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
30
RELAYETS/ASR/ESP, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
30
RELAY HEADLAMP WIPER/WASHER, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
60
RELAY UNIT ADDITIONAL CIRCULATION PUMP, TRANSMISSION COOLING, A 32101520070928808 A 61885620100510
60
RELAY UNIT SECONDARY AIR PUMP
100
INFORMATION SHEET FUSE/RELAY BOX, A 10483520090930800
150
BRACKET FUSE AND RELAY MODULE, REAR
160
NUT COVERING TO CAB FIRE WALL
200
CONTROL UNIT SAM SIGNAL ACQUISITION AND ACTUATION MODULE, REAR, A 69428920110111 PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
200
CONTROL UNIT SIGNAL ACQUISITION AND ACTUATION MODULE, REAR, A 48000720081001809 A 69428920110111 PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE, Replaced By: A1644404601
200
CONTROL UNIT SAM SIGNAL ACQUISITION AND ACTUATION MODULE, REAR, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE, Replaced By: A1649005101
200
CONTROL UNIT , A 05300820051005 PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
200
CONTROL UNIT SIGNAL ACQUISITION AND ACTUATION MODULE, REAR, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
210
BRACKET SIGNAL ACQUISITION AND ACTUATION MODULE, REAR
250
CONTROL UNIT DIFFERENTIAL LOCK N15/9, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
260
BRACKET DIFFERENTIAL LOCK CONTROL UNIT
270
NUT , Replaced By: N913023006001
300
CONTROL UNIT PARKTRONIC SYSTEM, A 48000720081001809
310
BRACKET CONTROL UNIT
320
NUT COVERING TO CAB FIRE WALL
330
SCREW W COLLAR A DRIVEM5X35
340
TREENAIL BRACKET TO FIRE WALL
350
CONTROL UNIT SEATS THIRD SEAT ROW, ELECTRICALLY FOLDABLE
400
CONTROL UNIT FUEL PUMP, A 53123920110228 L 04716120110228 V 00315120110228 F 67796720110331 L 14743220110729, Replaced By: A0009003101
400
CONTROL UNIT FUEL PUMP, A 53123820110228 L 04716020110228 V 00315020110228 F 67796620110331 L 14743120110729
420
BRACKET CONTROL UNIT, A 32101520070928808
425
BOLT CONTACT PLATE FASTENER M5X10
700
PIN BUSHING HOUSING DOOR CONTROL UNIT AT REAR DOOR, LEFT AND RIGHT 8-PIN MQS,N69/3 N69/4
700
PLUG HOUSING. PIN BUSHING HOUSING STEERING COLUMN ELECTRICALLY ADJUSTABLE 4-POLIG, A 843748 X 019421
705
CONTACT SPRINGTO A 038 545 76 28
705
CONTACT BUSHINGR 27, 0.75 MM2
710
PLUG HOUSING CONTROL UNIT EGS
710
PLUG HOUSING CONTROL UNIT CONNECTION
710
PLUG HOUSING CONTROL UNIT EGS
715
CAPTO 210 545 01 40
715
CONTACT SPRING. PIN BUSHING FRAME PLUG-CONNECTION
715
CONTACT SPRING0.5-1.0 MM2
715
COVER CONTROL UNIT PARKTRONIC
890
HOUSING SIGNAL ACQUISITION AND ACTUATION MODULE, PASSENGER SIDE 2-PIN,N10
890
SOCKET HOUSING CONTROL UNIT PARKTRONIC 18-PIN MQS,N62
890
HOUSING. PLUG
890
PLUG HOUSING
890
PLUG SIGNAL ACQUISITION AND ACTUATION MODULE, PASSENGER SIDE 40-PIN, CODE B, N10
890
CLUTCH OPERATING UNIT, HEATER AND AIR COND. 16-PIN MQS, JPT,N22/7
890
PIN BUSHING HOUSING CENTRAL ELECTRICAL SYSTEM 2-PIN
895
CONTACT BUSHINGR 27, 0.75 MM2
895
CONTACT SPRING0.5-1.0 MM2
895
REP.SET CONTACT. CABLE HARNESS4.0-6.0 MM2
895
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
910
FUSE BOX CODE B
915
REP.SET CONTACT1.5 MM2 GSK1,F1
920
PIN BUSHING HOUSING CENTRAL ELECTRICAL SYSTEM 10-PIN
920
PIN BUSHING HOUSING LEFT POWER WINDOW MOTOR 6-PIN SLK2.8,M10/1
920
PIN BUSHING HOUSING10-PIN
920
PLUG FUSE AND RELAY MODULE, REAR F4 (P3)
920
HOUSING SAM/SRB CONTROL MODULE REAR BLACK 3 PIN MCP2.8,N10/2, F 60080020040714 F 95500020070630809
920
PIN BUSHING HOUSING SEAT ADJUSTMENT CONTROL UNIT 14-PIN SLK2.8,N32/1, N32/2
920
PIN BUSHING HOUSING SAM CONTROL UNIT 14-PIN SLK2.8,N10
920
HOUSING N10/2, SAM/SRB, CONNECTOR: 14-PIN SLK2.8,3I
920
PLUG HOUSING
925
CONTACT SPRING0.22-0.5 MM2 SLK2.8
925
CONTACT SPRING0.5MM2-1.0MM2, A 843748 X 019421
925
CONTACT BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
925
CONTACT SPRING4.0 MM2 SLK2.8
925
CONTACT SPRING1-2.5 MM2
930
PLUG HOUSING DIFFERENTIAL LOCK CONTROL UNIT N15/9
935
CONTACT SPRING WITH DETENT 0.2-0.5 MM2
935
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
935
CONTACT SPRING WITH DETENT 0.5-1.0 MM2
935
CONTACT SPRING
935
SINGLE-WIRE SEAL SINGLE-WIRE SEAL, BLUE
940
PIN BUSHING HOUSING SAM CONTROL UNIT 14-PIN SLK2.8,N10
940
PIN BUSHING HOUSING LEFT POWER WINDOW MOTOR 6-PIN SLK2.8,M10/1
940
PIN BUSHING HOUSING SEAT ADJUSTMENT CONTROL UNIT 14-PIN SLK2.8,N32/1, N32/2
945
CONTACT SPRINGTO A 038 545 76 28
945
CONTACT SPRING4.0 MM2 SLK2.8
945
CONTACT SPRING0.5MM2-1.0MM2, A 843748 X 019421
950
PLUG HOUSING BUS NODE ROOF 6-PIN MQS,N70/3
950
PLUG DRIVE UNIT CONTROL UNIT 6-PIN MQS,N145*4
955
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
