Mercedes A0009983385 - Клипса

ML 350 BlueTEC 4MATIC 166.024

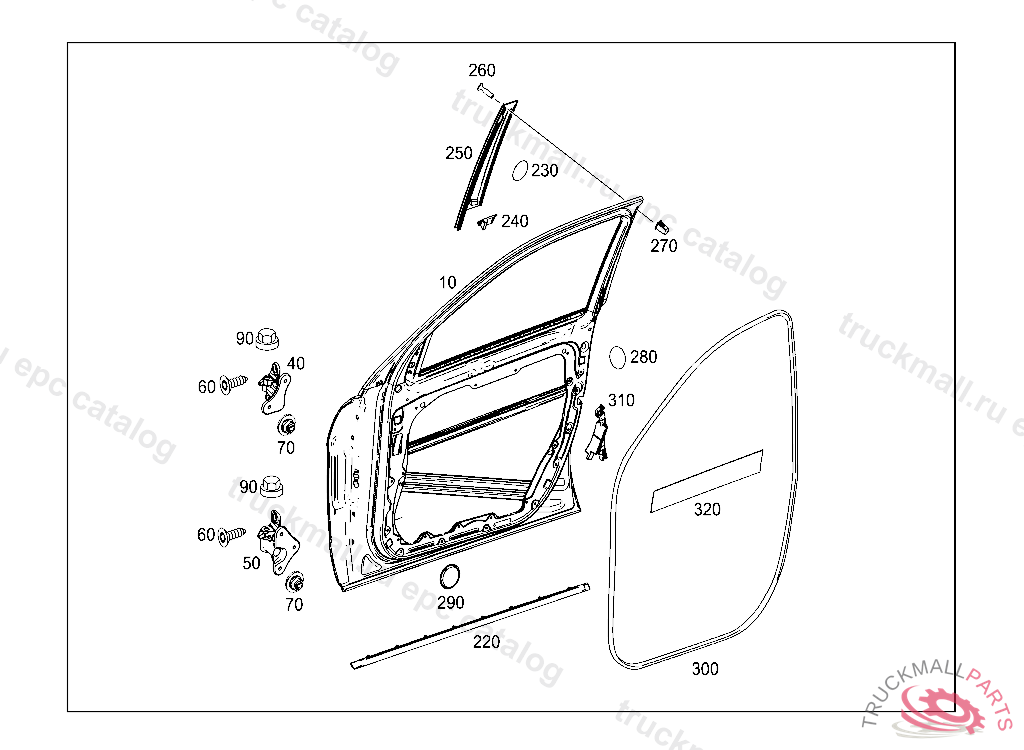

72 FRONT DOORS - 015 FRONT DOORS

Поз.
Артикул
Описание
10
A1667200205
DRIVER'S DOOR RIGHT
10
A1667200105
DRIVER'S DOOR LEFT
40
A1667200237
HINGE TOP RIGHT
40
A1667200137
HINGE TOP LEFT
50
A1667200337
HINGE BOTTOM LEFT
50
A1667200437
HINGE BOTTOM RIGHT
60
A2309840129
BOLT HINGE TO LEFT DOOR M8X35
70
A0059902050
COMBINATION NUT FOR HINGE TO B-PILLAR AT RIGHT M8
70
A0029908450
MULTIPLE NUT FOR HINGE TO B-PILLAR AT LEFT M8
90
A0009877945
CAP TO RIGHT DOOR HINGE SCREW
220
A1666980162
COVER STRIP BOTTOM LEFT
220
A1666980262
COVER STRIP BOTTOM RIGHT
230
A0069893085
ADHESIVE TAPE PIPING
240
A1667271088
COVER RIGHT
240
A1667270988
COVER LEFT
250
A1666900187
ORNAMENTAL MOLDING LEFT
250
A1666900087
ORNAMENTAL MOLDING RIGHT
260
N000000004778
SCREW PLATE AT HANDLE, J 47509420000815
270
A0009983385
BODY-BOUND NUT CONTROL UNIT FIXTURE
280
A0019985150
PLUG TO BODY 10 MM, J 78221020091022
290
A2517220280
SEAL RIGHT POWER WINDOW MOUNTING HOLE
300
A2047271187
CIRCUMFERENTIAL DOOR SEAL LEFT DOOR SEAL, TO BE ADAPTED DURING ASSEMBLY
310
A1667270200
REINFORCEMENT RIGHT
310
A1667270100
REINFORCEMENT LEFT
320
A2046820108
INSULATION AT LEFT PANELING 500X100MM, TO BE ADAPTED DURING ASSEMBLY
