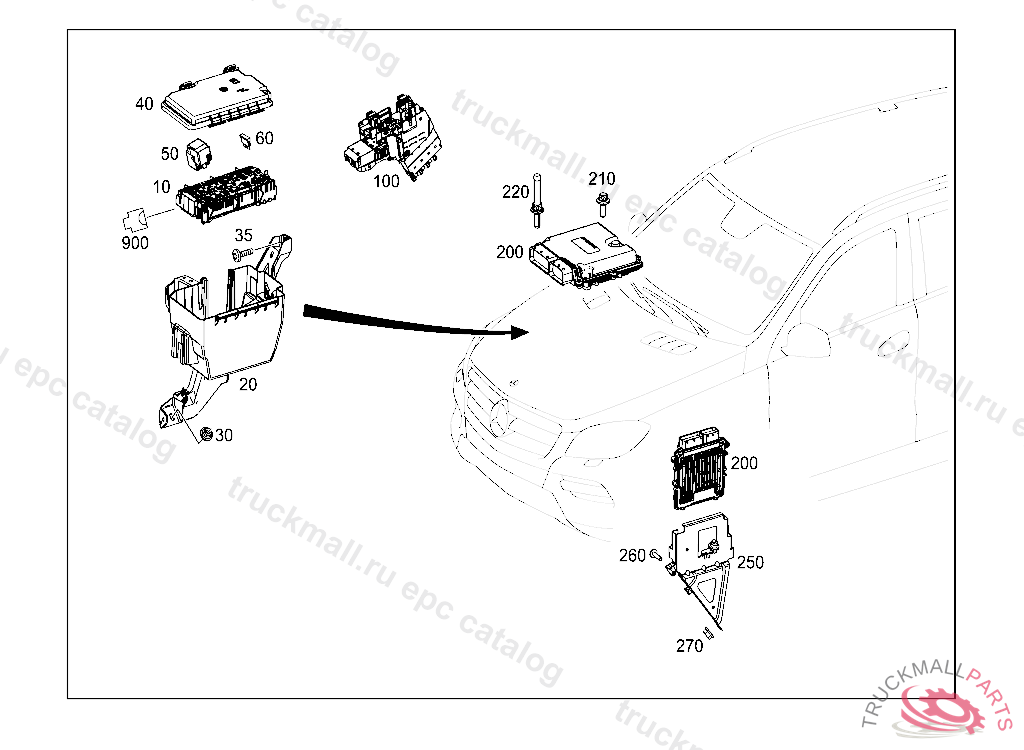

Поз.
Артикул
Описание
10
RELAY UNIT EQUIP. COMP., FRONT RIGHT ENGINE COMP. F58, L 00301820131130 M 00301820131130 A 07625020120419
10
RELAY UNIT EQUIP. COMP., FRONT RIGHT ENGINE COMP. F58, L 00000020120430 M 00000020120430 A 07624920120419
20
EQUIPMENT BOX IN ENGINE COMPARTMENT
30
NUT-AND-WASHER ASSEMBLY EVAPORATOR HOUSING TO CROSSMEMBER M6
35
PAN HEAD SCREW. SCREW GROUND CONNECTION
40
COVER EQUIPMENT BOX APPARATUS CASE
50
RELAY PLUG POSITION C
50
CONTACTOR FUEL PUMP
50
RELAY SLOT L
50
RELAY SLOT J
50
RELAY SLOT R
50
RELAY SLOT O
50
RELAY SLOT L
50
RELAY SLOT K
50
RELAY SLOT J
50
RELAY SLOT R
50
RELAY SLOT D
50
RELAY PLUG POSITION C
50
RELAY SLOT Q
50
RELAY SLOT O
50
RELAY HEADLAMP WIPER/WASHER
50
RELAY SLOT Q
60
FUSE LINK30 A
60
FUSE LINKC-15A-S
60
FUSE LINK YELLOW 20A
60
FUSE LINK SILVER-PLATED E-30A-S
60
FUSE LINKC-5A-S
60
FUSE LINKE-40A-S
60
FUSE LINKC-7,5A-S
60
FUSE LINKC-10A-S
60
FUSE LINKC-25A-S
100
FUSE BOX ENGINE COMPARTMENT,RIGHT F32/3, L 00000120120301 M 00000120120301 A 05447420120220
100
FUSE BOX ENGINE COMPARTMENT,RIGHT F32/3, L 00000020120228 M 00000020120228 A 05447320120220
200
CONTROL UNIT ENGINE CONTROL MODULE, THEFT-RELEVANT PART PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
200
CONTROL UNIT ENGINE CONTROL MODULE, THEFT-RELEVANT PART PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
200
CONTROL UNIT ENGINE CONTROL MODULE, THEFT-RELEVANT PART PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
250
BRACKET ENGINE CONTROL MODULE
260
HEXALOBULAR BOLT BRACKET MOUNTING M6X25
270
NUT , Replaced By: N913023006001
900
FUSE BOX FRONT FUSE BOX F58/S3
900
FUSE BOX FRONT FUSE BOX F58/S1
