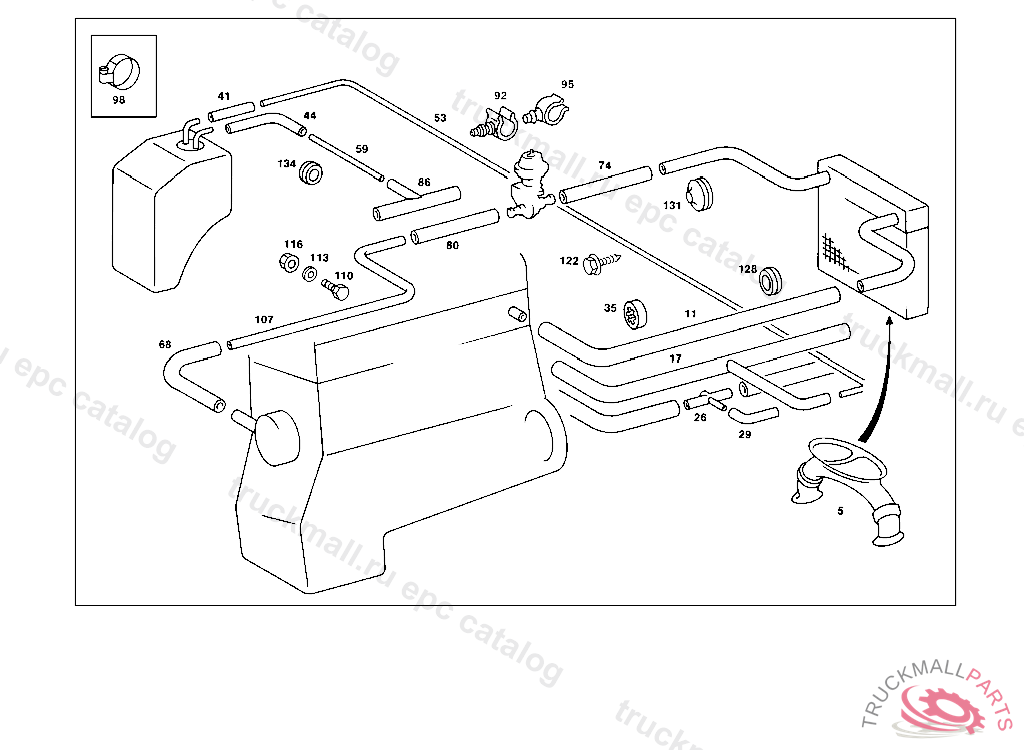

Поз.
Артикул
Описание
5
PIPE SOCKET WATER DRAIN,CENTER
11
HOSE FROM ENGINE TO HEAT EXCHANGER
17
HOSE FROM ENGINE TO HEAT EXCHANGER, ONLY USED W/HEATED WINDSHIELD WASHER
41
HOSE FEED LINE LEADING TO WINDSHIELD WASHER WATER TANK, ONLY USED WITH HEATED PANE WASHER
44
HOSE RETURN LINE LEADING TO WINDSHIELD WASHER WATER TANK, ONLY USED WITH HEATED PANE WASHER
53
PIPE LINE FEED, HEATED WINDSHIELD WASHER
59
PIPE LINE RETURN, TO HEATED PANE WASHER SYSTEM
68
HOSE FROM RETURN LINE TO ENGINE
74
HOSE FROM RIGHT HEAT EXCHANGER TO WATER VALVE
80
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR, ORDER BY THE METER
86
HOSE FROM WATER VALVE TO WATER PUMP RETURN LINE, USED W/HEATED WINDSHIELD WASHER
92
CLAMP6/14-15 MM
95
BRACKET LINE MOUNTING 11 MM
98
CLAMP PRESSURE REGULATOR
98
CLAMP , Replaced By: N000000000667
98
CLAMP , Replaced By: N000000000665
98
CLAMP , Replaced By: A0059970190
98
HOSE CLAMP LINE MOUNTING
98
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
98
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
107
PIPE LINE RETURN
110
SCREW , Replaced By: N304017006034
110
SCREW COVER PLATE TO COVER PLATE M 6 X 10
113
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
113
WASHER COMPRESSED AIR LINE TO BRACKET
116
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
116
NUT , Replaced By: N910112006001
116
NUT , Replaced By: N913023006001
122
SCREW , Replaced By: A1269901036
122
SCREW , Replaced By: A2039900036
128
GROMMET FEED LINE TO FIRE WALL,F 016102
131
GROMMET 34 MM
134
GROMMET CAB ROOF
