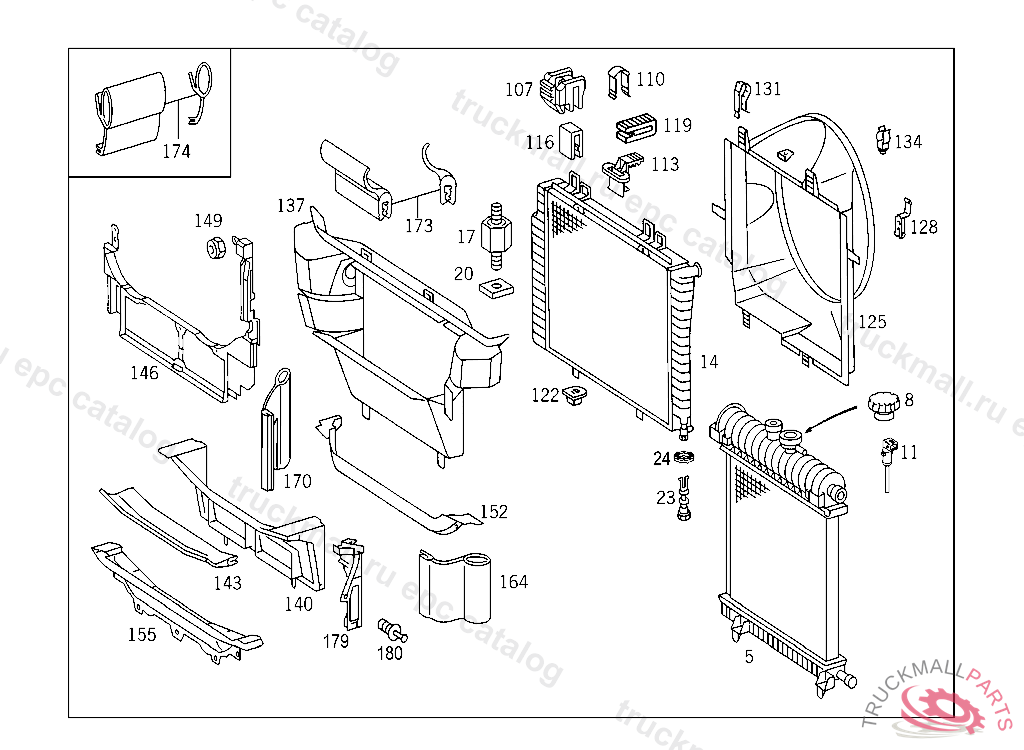

Поз.
Артикул
Описание
14
RADIATOR
17
BUFFER PUMP TO BRACKET
20
NUT CONDENSER TO RADIATOR
23
SCREW WATER DRAIN
24
WASHER WATER DRAIN
107
CLAMP RADIATOR TO CENTRAL STIFFENING
110
CLAMP RADIATOR TO CENTRAL STIFFENING
113
LOCK , Replaced By: A2105040146, +002A2105040412
116
RUBBER MOUNT RADIATOR TO CENTRAL STIFFENING
119
RUBBER MOUNTING , Replaced By: A2105040412, +002A2105040146
122
RUBBER MOUNTING RADIATOR TO SUPPORT
125
FAN SHROUD
131
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
140
AIR BAFFLE
143
BOOT
155
COVERING BOTTOM
164
BOOT LATERAL LEFT
179
COVERING LATERAL LEFT
179
COVERING LATERAL LEFT
180
RIVET
