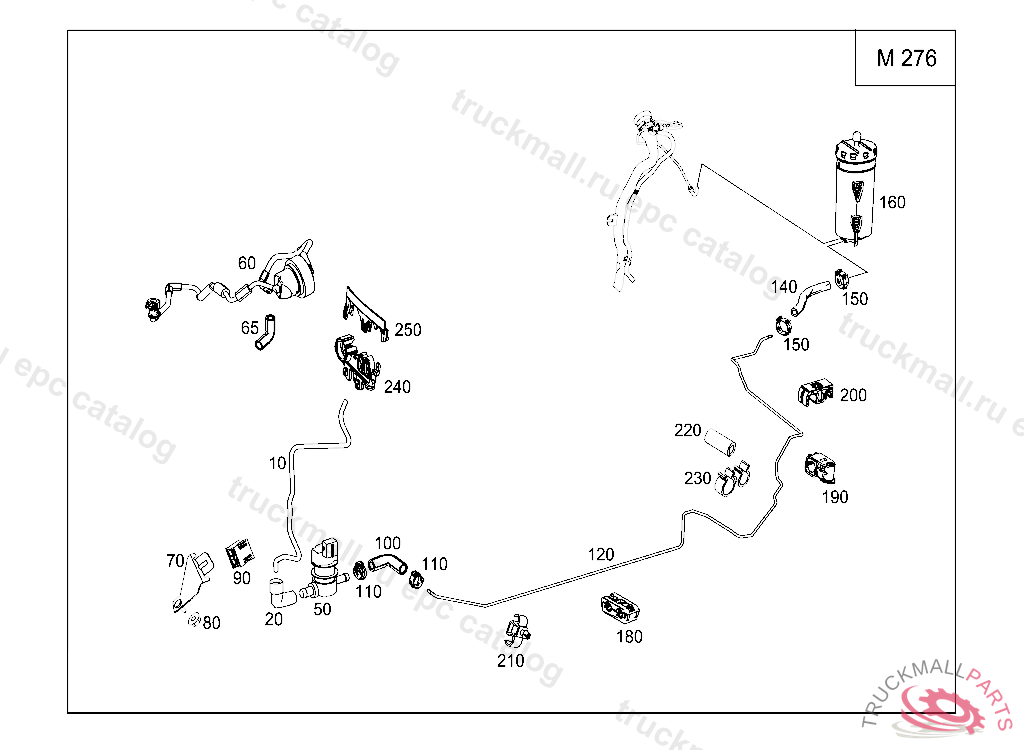

Поз.
Артикул
Описание
10
PURGE LINE
10
PURGE LINE MOTOR AT DAMPER FILTER
50
PURGE VALVE
70
BRACKET PURGE VALVE TO LONGITUDINAL MEMBER
70
BRACKET PURGE VALVE TO LONGITUDINAL MEMBER
80
NUT , Replaced By: N913023006001
80
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
90
BRACKET PURGE VALVE AT BRACKET
100
PURGE LINE
100
PURGE LINE
110
HOSE CLAMP FUEL LINE TO FUEL FILTER
120
PURGE LINE
140
HOSE FROM ACTIVATED CHARCOAL FILTER TO BREATHER LINE, FROM MODEL YEAR '98
140
HOSE PURGE LINE TO ACTIVATED CHARCOALFILTER
150
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
160
ACTIVATED CHARCOAL FILTER
160
ACTIVATED CHARCOAL FILTER
180
LINE FASTENER FUEL LINE TO FIREWALL
180
LINE HOLDER FUEL LINE TO FIREWALL, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0049958277
190
LINE HOLDER FUEL LINE MOUNTING
200
LINE HOLDER FUEL LINE MOUNTING
210
BRACKET FUEL LINE MOUNTING
220
HOSE FROM FEED LINE TO FILTER 240 MM
240
FEED-THROUGH GROMMET LOWER PART
250
FEED-THROUGH GROMMETOBERTEIL, A 58879420110630 L 05094120110630 V 00365520110630 F 73545920110707 L 15437920111012
