Поз.
Артикул
Описание

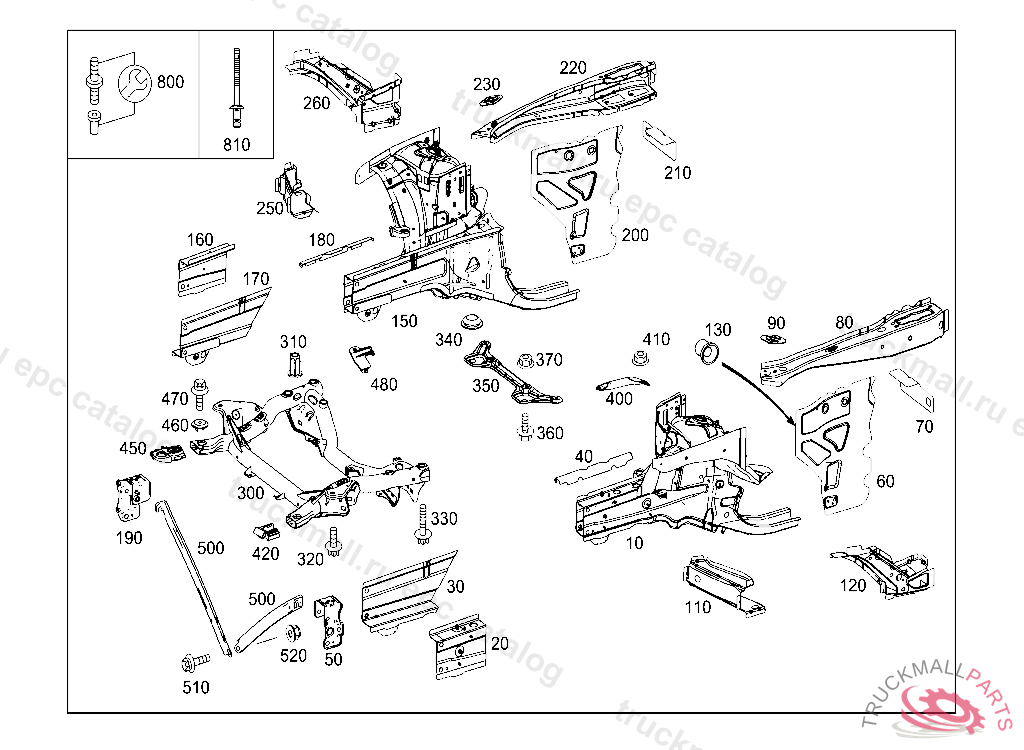

10
WHEEL HOUSE LEFT, L 03887520100401 V 00243120100401 A 50752820101231 F 62949620101231 L 12864620101231
10
LONGITUDINAL MEMBER LEFT, L 03887520100401 V 00243120100401, Replaced By: A2046200150
20
COVER LONGITUDINAL MEMBER LEFT, F 53236920100408 P F 502825
30
SIDE MEMBER LEFT
40
ANGLE RIGHT SIDE MEMBER
50
BRACKET LEFT, F 06715920100620
60
STRIKING PLATE LEFT, Replaced By: A2046200587
60
LONGITUDINAL MEMBER LEFT
70
BRACKET LEFT REAR FENDER
80
LONGITUDINAL MEMBER TOP LEFT
90
PLATE ON CARRIER AT TOP LEFT
110
CROSS MEMBER LEFT, PEDAL FLOOR PANEL
120
STRUT LEFT
130
PROTECTIVE CAP GROUND CONNECTION
150
WHEEL HOUSE RIGHT
150
SIDE MEMBER RIGHT, Replaced By: A2046200250
160
COVER RIGHT
170
SIDE MEMBER RIGHT
180
ANGLE RIGHT SIDE MEMBER
190
BRACKET RIGHT, F 06715920100620
200
STRIKING PLATE RIGHT, Replaced By: A2046200687
200
LONGITUDINAL MEMBER RIGHT
210
BRACKET RIGHT REAR FENDER
220
LONGITUDINAL MEMBER TOP RIGHT
230
PLATE ON CARRIER AT TOP LEFT
250
CROSS MEMBER RIGHT, PEDAL FLOOR PANEL
260
STRUT RIGHT
300
INTEGRAL CARRIER
300
INTEGRAL CARRIER
300
INTEGRAL CARRIER
310
BLIND CLINCH NUT IN FRAME-TYPE INTEGRAL SUPPORT M10
320
BOLT FRONT FRAME-TYPE INTEGRAL SUPPORT M14X1,5-SGX50
330
BOLT REAR FRAME-TYPE INTEGRAL SUPPORT M14X1,5-SGX100
340
EXPANSION PLUG IN FLOOR,FRONT
340
EXPANSION PLUG ELECTRIC CABLE THRU FIRE WALL,4 9400475 187082
350
FASTENING PLATE STEERING TO FRAME-TYPE INTEGRAL SUPPORT
350
FASTENING PLATE STEERING TO FRAME-TYPE INTEGRAL SUPPORT
360
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
360
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
370
NUT BRACKET TO SIDE MEMBER M12X1.5
400
SUPPORT INTEGRAL SUPPORT
410
HEXALOBULAR BOLT SUPPORTING STRUT AT BRACKET AT RIGHT BOTTOM M12X1,5X30
420
DEFLECTOR RAMP LEFT
420
DEFLECTOR RAMP RIGHT
450
BRACKET FRAME-TYPE INTEGRAL SUPPORT,RIGHT
450
BRACKET LEFT
500
STRUT LEFT, F 06715920100620
500
STRUT RIGHT, F 06715920100620
510
BOLT STRUT TO FRAME-TYPE INTEGRAL SUPPORT
520
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
800
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
810
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
