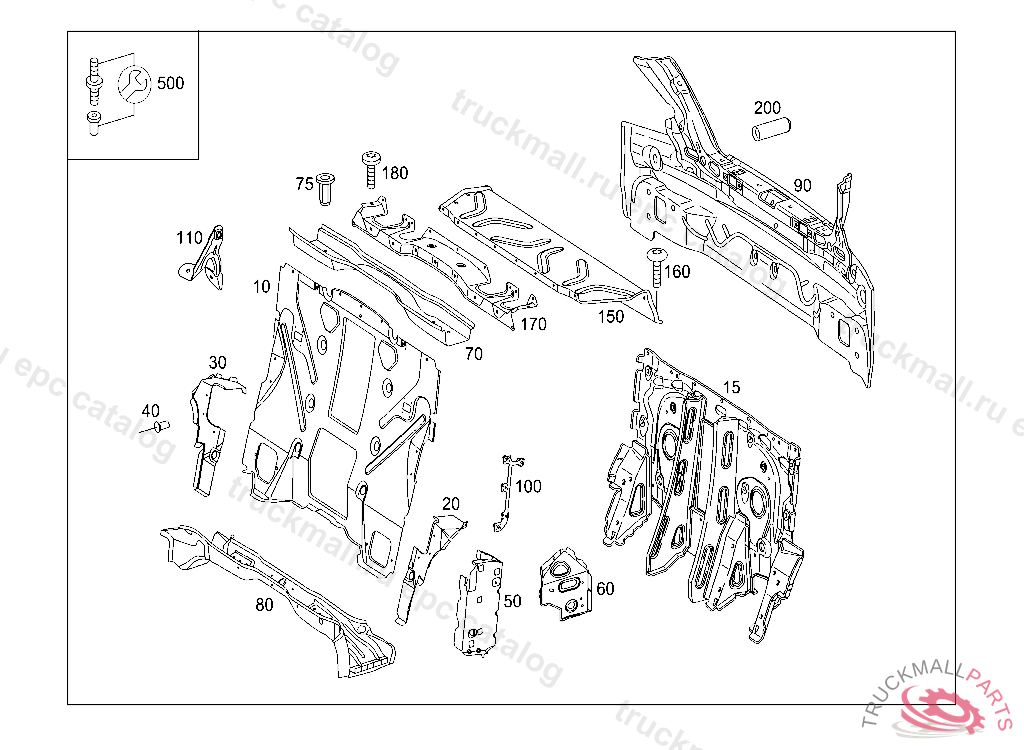

Поз.
Артикул
Описание
10
REAR PANEL
15
REAR PANEL TOP
20
CONSOLE LEFT
30
CONSOLE RIGHT
40
RIVET BRACKET TO SUBFRAME
50
END PIECE LEFT
50
END PIECE RIGHT
60
END PIECE LEFT
60
END PIECE RIGHT
70
CENTRAL PART TOP INSIDE
75
RIVET NUT6X23,5
80
CROSS MEMBER
90
REAR END CENTER ASSEMBLY. REAR END CENTER ASSEMBLY BOTTOM
100
BRACKET LEFT
100
BRACKET RIGHT
110
CONSOLE RIGHT
110
CONSOLE LEFT
150
COVER
160
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
170
REINFORCEMENT
180
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M6X10, Replaced By: A0019844329
180
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
180
SCREW CLAMP MOUNTING M 6X16
200
COVER FOR PIN
500
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
999
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
