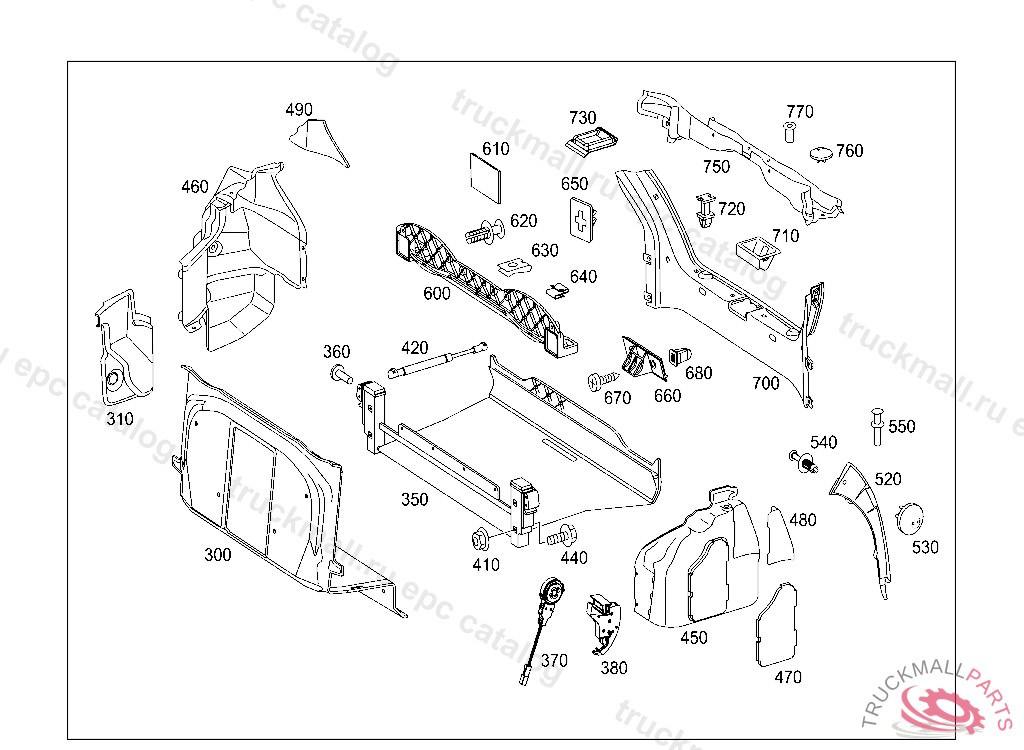

Поз.
Артикул
Описание
300
PANELING REAR PANEL
300
PANELING REAR PANEL
310
COVER LEFT
310
COVER RIGHT
350
PARTITION PANEL , 9B69QFT209A0005 ANTHRACITE
350
PARTITION PANEL , 9B69QFT209A0005 ANTHRACITE
360
CATCH AT PARTITION PANEL
370
SWITCH MICRO-SWITCH
380
SWITCH MICRO-SWITCH
410
HEXAGON NUT. NUT LINE TO SIDE MEMBER
420
GAS-OPERATED SPRING
440
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
450
PANELING LEFT
460
PANELING RIGHT
470
FLAP LEFT
480
FLAP LEFT
490
FLAP RIGHT
520
COVER LEFT, T 01381320030922 F 11096020040111
520
COVER RIGHT
530
FASTENER BUTTON PANELLING TO SIDE PANEL,LEFT AND RIGHT
540
RIVET BUSHING AND LEVER TO CAB
550
EXPANSION RIVET COVERING
600
EDGE GUARD , 9B51QFT209A0127 ANTHRACITE
610
INTERMEDIATE LAYER ANTENNA COMBINER TO LATERAL LEFT COVERING IN LUGGAGE COMPARTMENT
620
RIVET SEALING LIP TO RADIATOR
640
CLIP SOUNDPROOFING, RIGHT FRONT
650
GUIDE SIGN FIRST AID BOX
660
BRACKET PARTITION WALL TO SOFT-TOP COMP., 9B51QFT209A0065 ANTHRACITE
670
SHEET METAL SCREW BRACKET TO SUPPORT
680
BODY-BOUND NUT CONTROL UNIT FIXTURE
680
TREENAIL BRACKET TO FIRE WALL
700
RIVET BUSHING AND LEVER TO CAB
700
RIVET LOADING SILL PANELING AT TOP OUTSIDE LEFT AND RIGHT
700
PANELING LOADING EDGE, 7C45QFT209A0007 DEEP GREY
710
COVER
710
COVER ON MIDDLE REAR PANELLING
720
RIVET REAR BODY PANEL,BOTTOM,A 561621I
720
RIVET PANELING LOAD SILL TO REAR END CENTER ASSEMBLY 13 X 9.2 MM
750
PANELING AT CROSS MEMBER
760
FASTENER BUTTON PANELLING TO SIDE PANEL,LEFT AND RIGHT
770
EXPANSION RIVET FRAME BRACKET, J 26440820070611 THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A2019900292
