Поз.
Артикул
Описание

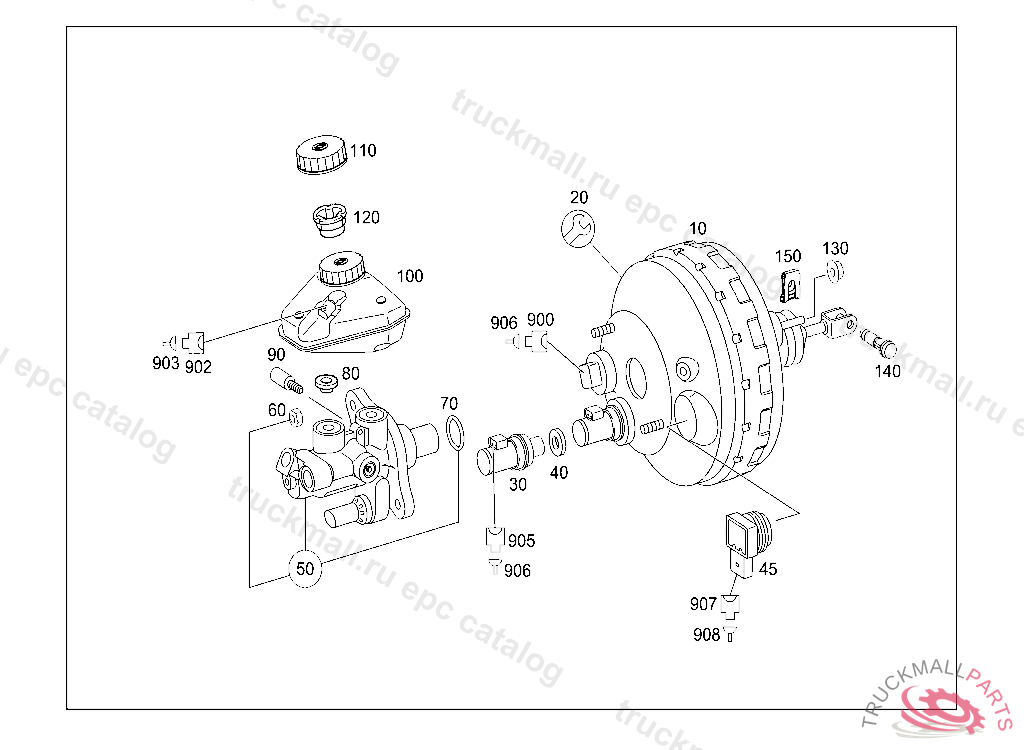

10
TS TANDEM BRAKE UNIT
10
TS BRAKE BOOSTER
10
TS BRAKE BOOSTER , A 02430720090731800
10
TS BRAKE BOOSTER , Replaced By: A2214304330
20
ADAPTER BRAKE BOOSTER ASSEMBLY
30
SENDER UNIT DIAPHRAGM POSITION SENSOR,BAS, A 809595 F 894084 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE TO A 809594, F 894083 WITH CODE 800
40
SEALING PLUGS VACUUM LINE AT BRAKE BOOSTER
45
PRESSURE SENSOR VACUUM SENSOR IN BRAKE UNIT
45
TS PRESSURE SENSOR , J 99953520111007
50
TS MASTER BRAKE CYLINDER
60
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
70
SEAL RING
80
STOP PLUG EXPANSION RESERVOIR TO MASTER CYLINDER
90
BOLT EXPANSION RESERVOIR TO MASTER CYLINDER
100
DASHPOT BRAKE FLUID
110
COVER
120
STRAINER BRAKE FLUID RESERVOIR
130
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
900
CLUTCH. PIN BUSHING HOUSING RADAR SENSOR 6 PIN, CODE B,TO A0004460449
902
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
903
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
905
CLUTCH. PIN BUSHING HOUSING SIREN
906
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
906
GASKET YELLOW 0.2-0.5MM2,126373
906
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
906
GASKET. BLIND PLUG BLUE
907
SOCKET HOUSING VACUUM SENSOR A7/7
908
CONTACT SPRING WITH GASKET 1.5-2.5 MM2
908
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
