Поз.
Артикул
Описание

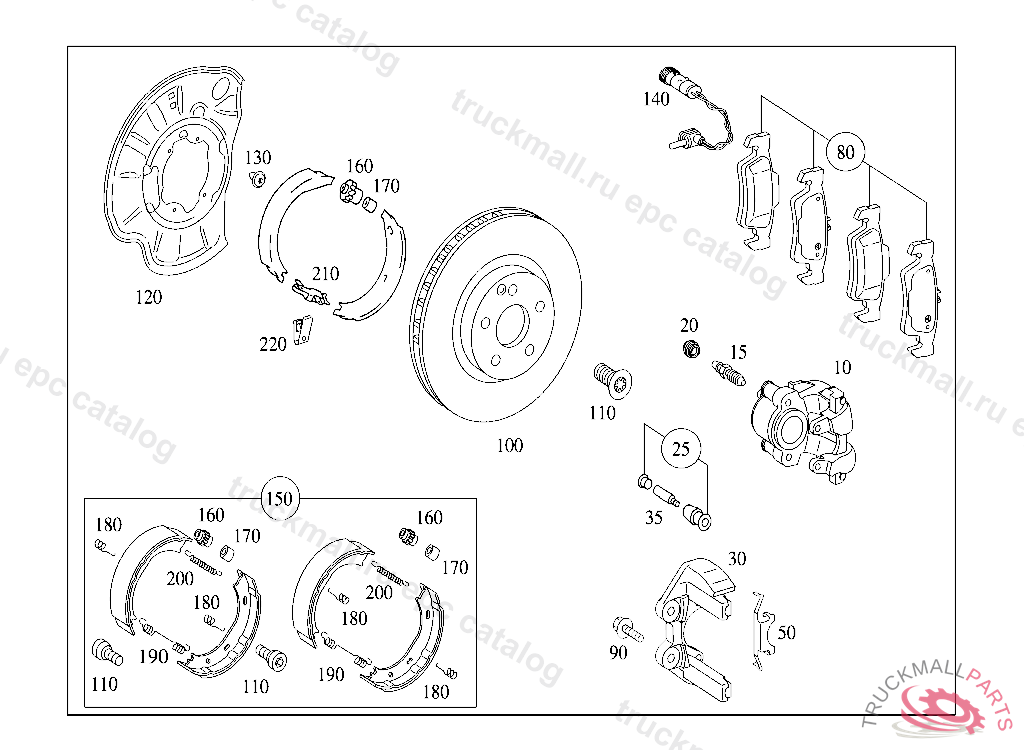

10
HOUSING LEFT
10
TS BRAKE CALIPER REAR RIGHT
10
CALIPER LEFT
10
HOUSING RIGHT
10
PISTON HOUSING RIGHT
10
TS BRAKE CALIPER REAR LEFT
15
BLEEDER VALVE
20
PROTECTIVE CAP , Replaced By: A0004217187
25
PROTECTIVE SLEEVE
30
BRACKET BRAKE CALIPER, REAR AXLE, Replaced By: A2214230094
30
BRAKE ANCHOR BRAKE CALIPER, REAR AXLE
35
PIN. PIVOT PIN
50
SPREADER SPRING REAR LEFT AND RIGHT
50
RETAINING SPRING REAR, A 02427920020830802
80
TS DISK BRAKE PAD PARTS KIT, WITHOUT WEAR SENSOR, WHEN SELLING BRAKE LININGS TO END USERS/DESK BUYERS THE A 203 005 25 99 IS TO BE HANDED OVER FREE OF CHARGE
80
TS BRAKE PAD PARTS KIT, WHEN SELLING BRAKE LININGS TO END USERS/DESK BUYERS THE A 203 005 25 99 IS TO BE HANDED OVER FREE OF CHARGE, Replaced By: A0064200120
90
HEXAGON HEAD BOLT STEERING ARM TO STEERING KNUCKLE
100
BRAKE DISC, UNVENTED REAR, ONLY REPLACEABLE BY PAIRS
100
BRAKE DISK, VENTED REAR AXLE
100
BRAKE DISC REAR AXLE
100
BRAKE DISC REAR AXLE, Replaced By: A2214231012
110
FITTED BOLT BRAKE DISC TO WHEEL HUB M8X12
120
PROTECTIVE PLATE BRAKE DISK, LEFT
120
PROTECTIVE PLATE BRAKE DISK, RIGHT
130
BOLT EXPANSION LOCK AND COVER PANEL TOWHEEL CARRIER M8X12
130
BOLT PROTECTIVE PLATE TO BRAKE ANCHOR M6X12
140
BRAKE WEAR SENSOR BRAKE LINING WEAR INDICATOR
150
BRAKE SHOE PARTS KIT, CAUTION! ALSO ORDER CALIPER FASTENINGS
160
SCREW BRAKE SHOE ADJUSTMENT
170
SUPPORTING BUSH
180
SPRING BRAKE SHOES TO COVER PLATES
190
EXTENSION SPRING BRAKE SHOE PULL-BACK
200
EXTENSION SPRING BRAKE SHOE PULL-BACK
210
SHACKLE EXPANDING LOCK
220
PRESSURE CLIPS EXPANDING LOCK
