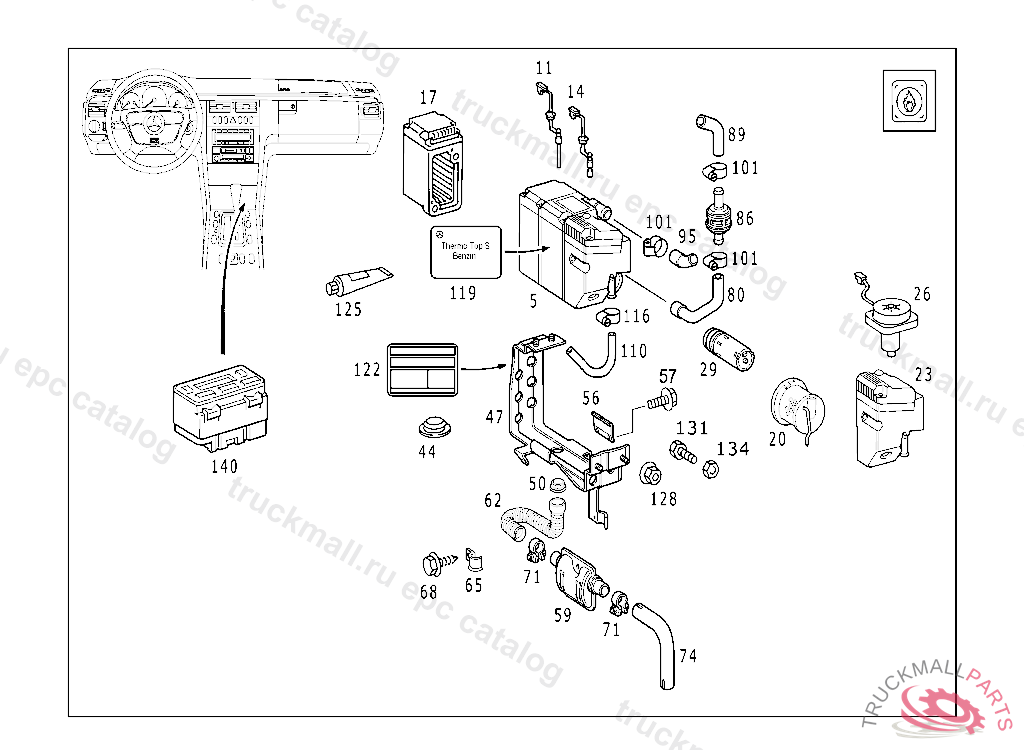

Поз.
Артикул
Описание
5
HEATER UNITDIESEL THERMO TOP S,A 719078 DIESEL
5
HEATER UNIT , Replaced By: A2105002098
5
HEATER UNIT , Replaced By: A2105002198
11
LOCK FLAME DETECTION PHOTOCELL
14
GLOW PLUG
17
HEAT EXCHANGER ,A 719078 DIESEL
20
BURNER INSET ,A 719078 DIESEL
23
HOUSING ,A 719078 DIESEL
26
BLOWER
29
RECIRCULATING PUMP
44
EXPANSION PLUG ANTENNA CABLE IN FRONT PANEL PILLAR
47
BRACKET
50
GASKET
56
BRACKET ,096674 EXCEPT 096676
57
SCREW HEATER UNIT TO BRACKET, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
59
MUFFLER EXHAUST MUFFLER
62
EXHAUST PIPE ,A 719078 DIESELA 672083,X 018446 BENZIN
65
CLAMP , Replaced By: A1239950320
68
SHEET METAL SCREW ELECTRIC CABLE TO CAB
71
CLAMP EXHAUST PIPE
74
END PIECE EXHAUST MUFFLER,A 719078 DIESELA 672083,X 018446 BENZIN
80
HOSE FROM HEATER UNIT TO CHECK VALVE, TO BE ADAPTED DURING ASSEMBLY
86
VALVE CHECK VALVE
89
HOSE FROM HEATER UNIT TO CHECK VALVE, TO BE ADAPTED DURING ASSEMBLY
89
HOSE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A2105060135
95
HOSE FROM HEATER UNIT TO PIPE LINE,A 068276
101
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
101
CLAMP , Replaced By: N000000000667
110
HOSE , Replaced By: A2104765726
110
HOSE ON FUEL TUBE
116
CLAMP ,B 926099
119
GUMMED LABELDIESEL,A 068276
119
GUMMED LABELBENZIN,A 068277A 672083,X 018446 BENZIN
119
GUMMED LABELDIESEL,A 719079 DIESEL
119
GUMMED LABELDIESEL,A 719078 DIESEL
119
GUMMED LABEL HEATER UNIT BENZIN,A 672084,X 018447 BENZIN
122
GUMMED LABEL ON HEATER UNIT BRACKET DIESEL,A 719078 DIESEL
122
STICKERDIESEL
125
SEALING COMPOUND ,A 719078 DIESELA 672083,X 018446 BENZIN
128
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
128
NUT , Replaced By: N913023006001
128
NUT , Replaced By: N910112006001
131
SCREW
134
NUT BATTERY MOUNTING
140
CLOCK
999
VALVE
999
BRACKET INDEPENDENT HEATING
999
NUT CYLINDER TO BRACKET TO0002902112
999
SCREW , Replaced By: N910106006000, +001N000125006421
