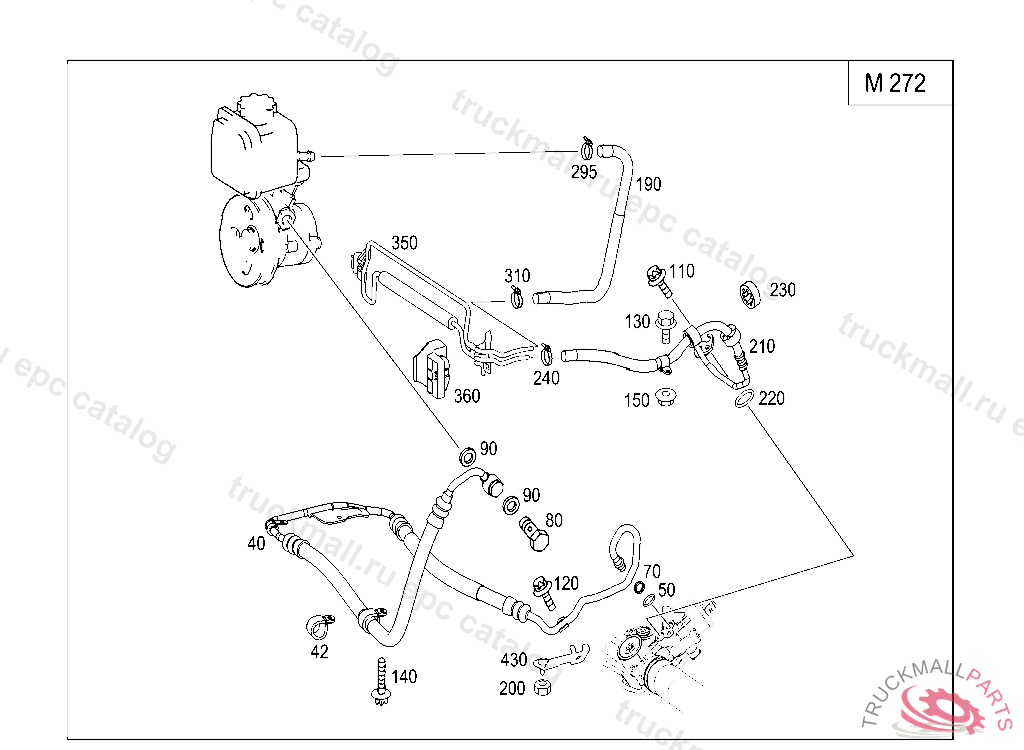

Поз.
Артикул
Описание
40
LINE FROM PUMP TO STEERING
40
LINE FROM PUMP TO STEERING
40
LINE FROM PUMP TO STEERING
40
HOSE FROM PUMP TO STEERING
42
CLAMP DE-AERATION LINE
50
SEAL RING LOW PRESSURE LINE TO STEERING
70
SUPPORT RING HIGH PRESSURE LINE TO STEERING 11MM, A 83219220050630 E 01999920070101
80
HOLLOW SCREW DELIVERY LINE TO PUMP
90
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
110
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
120
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
130
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
130
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
130
SCREW
140
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
150
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
190
HOSE FROM COOLING PIPE TO PUMP
200
NUT , Replaced By: N913023006001
210
LINE FROM STEERING TO COOLING PIPE
220
O-RING TO HP HOSE 7.65MM, A 83219320050630 E 02000020070101
230
BUFFER. RUBBER RING PROTECTION AGAINST SCORING FOR HOSE
240
HOSE CLAMP FUEL LINE TO SENDER UNIT
295
HOSE CLAMP LOW PRESSURE HOSE TO COOLER PIPE OR PUMP 15.5 MM, A 54101820030515 E 02000020070101
310
HOSE CLAMP FUEL LINE TO SENDER UNIT
350
COOLING PIPE TO COOLING MODULE, 07791720060428
350
COOLING PIPE TO COOLING MODULE, 07791820060428
350
COOLING PIPE TO COOLING MODULE
360
BRACKET COOLING PIPE TO CONDENSER
