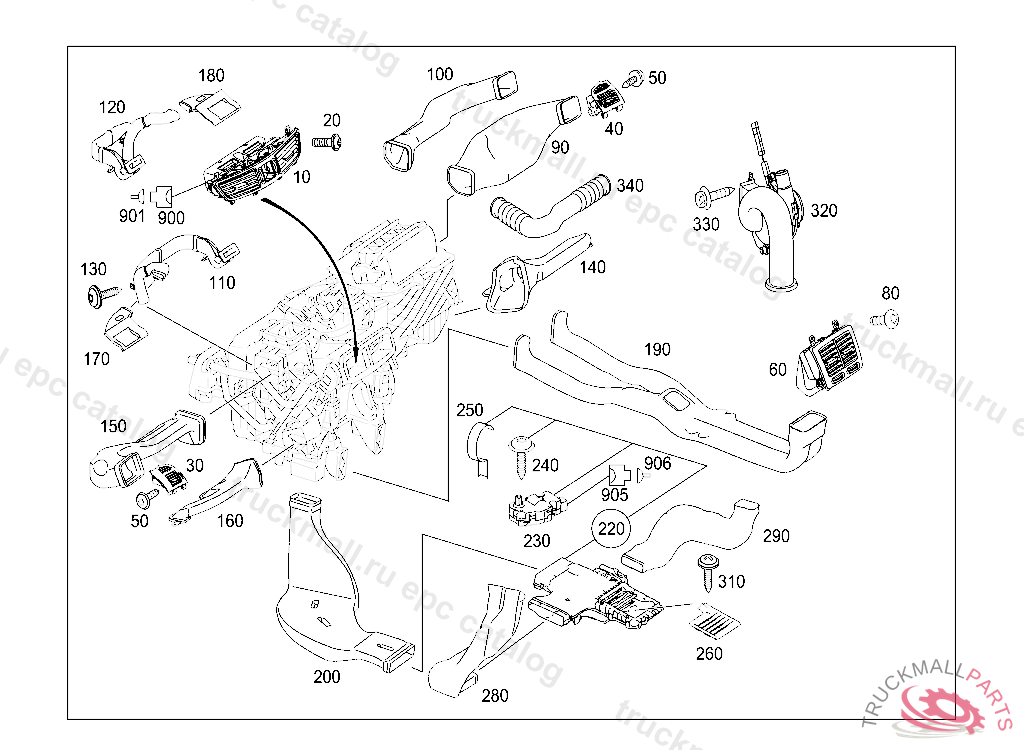

Поз.
Артикул
Описание
10
NOZZLE IN INSTRUMENT PANEL CENTER, 7J22QFT221A4001 SILVER
20
BOLT. SCREW (SENSOR CABLE) BRAKE WEAR INDICATOR, REAR,AXLE,LEFT AND RIGHT,V 207570
30
AIR NOZZLE INSTRUMENT PANEL LEFT
40
AIR NOZZLE INSTRUMENT PANEL RIGHT
50
SHEET METAL SCREW BRACKET TO SUPPORT
60
NOZZLE IN THE REAR
60
NOZZLE IN THE REAR
80
HEXALOBULAR BOLT CONTROLLER FASTENER
90
DUCT BETWEEN HEATER CASE AND RIGHT SIDE NOZZLE
100
DUCT BETWEEN HEATER CASE AND RIGHT SIDE NOZZLE
110
AIR DUCT IN INSTRUMENT PANEL, A 02125720080905
120
AIR DUCT IN INSTRUMENT PANEL
130
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
140
DUCT LEGROOM VENTILATION,RIGHT
140
DUCT LEGROOM VENTILATION,RIGHT
140
DUCT LEGROOM VENTILATION,RIGHT
150
DUCT BETWEEN HEATER CASE AND LEFT SIDE NOZZLE
150
DUCT BETWEEN HEATER CASE AND LEFT SIDE NOZZLE
160
DUCT LEGROOM VENTILATION,RIGHT
160
DUCT LEGROOM VENTILATION,LEFT
160
DUCT LEGROOM VENTILATION,LEFT
170
DUCT TO NOZZLE LEFT SIDE
180
DUCT TO NOZZLE RIGHT SIDE
190
DUCT ON TUNNEL, A 26557620081001809
200
DUCT FRONT RIGHT BOTTOM
200
DUCT FRONT BOTTOM LEFT
220
AIR DUCT REAR AIR DEFLECTOR, BOTTOM RIGHT, A 02436320090914
220
AIR DUCT REAR AIR DEFLECTOR, BOTTOM LEFT, A 02436320090914
220
AIR DUCT REAR AIR DEFLECTOR, BOTTOM RIGHT
220
AIR DUCT REAR AIR DEFLECTOR, BOTTOM LEFT
230
STEPPER MOTOR AIR BAFFLE, A 02436320090914
240
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
250
SPRING
260
AIR DUCT REAR BOTTOM RIGHT
260
AIR DUCT REAR BOTTOM LEFT
280
DUCT TO RIGHT B PILLAR
280
DUCT TO LEFT B-PILLAR
290
DUCT LEGROOM REAR RIGHT
290
DUCT LEFT REAR FOOTWELL
310
SCREW SOCKET MOUNTING
320
VENTILATOR INSTRUMENT PANEL LEFT
320
VENTILATOR INSTRUMENT PANEL RIGHT
330
SCREW SOCKET MOUNTING
340
DUCT GLOVE COMPARTMENT, A 02295520080930809
340
DUCT GLOVE COMPARTMENT, A 02295520080930809
900
PLUG HOUSING BUS NODE ROOF 6-PIN MQS,N70/3
901
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
905
CONNECTOR HOUSING ACTUATOR MOTOR AIR DUCT AT REAR BOTTOM, LEFT AND RIGHT 4-PIN MQS,M16/33, M16/34
906
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
