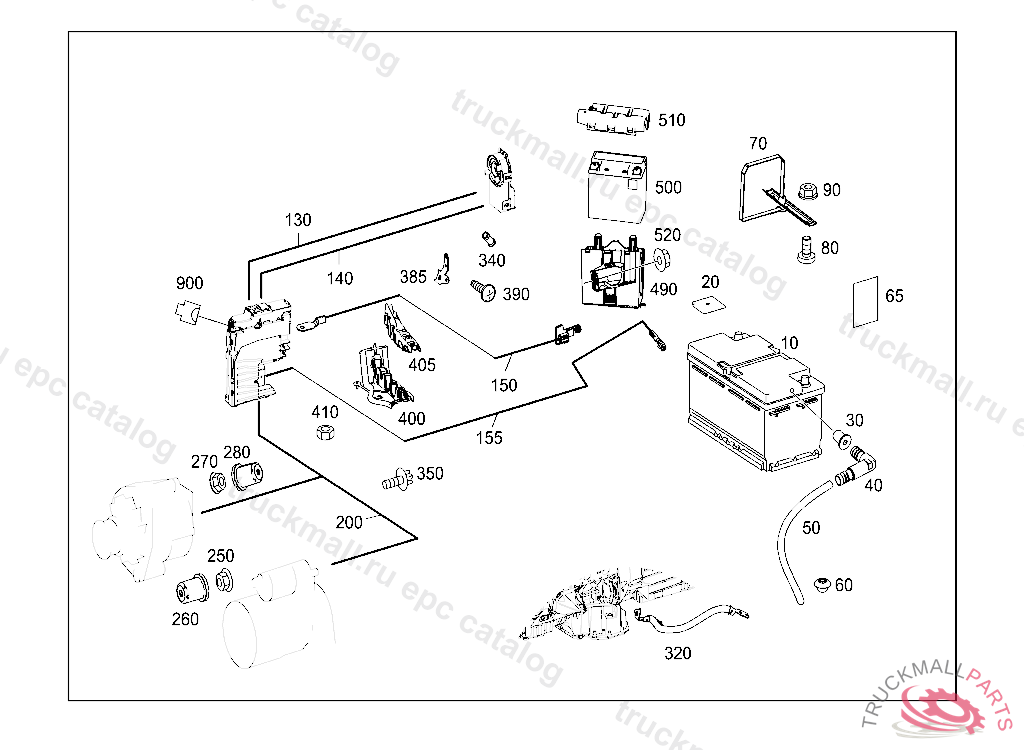

Поз.
Артикул
Описание
10
BATTERY FILLED 12V/95AH
10
STARTER BATTERY12V / 105 AH950 A AGM
20
BOOT POS. POLE
30
STOP PLUG. PLUG ON BATTERY,LATERALLY
40
ELBOW FITTING. DISTRIBUTOR
50
HOSE , ORDER BY THE METER
60
GROMMET ENGINE COMPARTMENT FEED-THROUGH
60
STOP PLUG TOP CENTER 11 MM
65
ADHESIVE TAPE PIPING
70
RETAINING STRAP FOR BATTERY IN REAR END
80
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
90
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
130
ELECTRICAL WIRING HARNESS FROM TERMINAL BLOCK TO PREFUSE BOX X4/53 - F32/3
140
ELECTRICAL WIRING HARNESS FROM STARTING MOTOR TO BATTERY POS. POLE
150
ELECTRICAL WIRING HARNESS BATTERY POSITIVE TERMINAL TO PREFUSE BOX, A 20131220
155
ELECTRICAL WIRING HARNESS FROM BATTERY TO FUSE BOX
200
ELECTRICAL WIRING HARNESS STARTER-ALTERNATOR
250
NUT , Replaced By: N913023006001
250
NUT CABLE TO ALTERNATOR,TERMINAL 30
260
PROTECTIVE CAP. BOOT NUT , M8
270
NUT CABLE TO ALTERNATOR,TERMINAL 30
280
PROTECTIVE CAP. BOOT NUT , M8
320
ELECTRICAL WIRING HARNESS GROUND LINE FRONT END/BODY
320
ELECTRICAL WIRING HARNESS GROUND
340
JUMP-START CHARGING POINT JUMP-STARTING POINT
350
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
350
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
385
BRACKET PARTITION PANEL,LEFT
385
BRACKET PARTITION PANEL,RIGHT
385
CABLE BRACKET RIGHT LONGITUDINAL MEMBER PANEL
390
FILLISTER HD SCREW MOUNTING SHIELD RIGHT 5X16
390
HEXALOBULAR BOLT BRACKET TO TRANSMISSION M6X15
390
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
400
BRACKET IN MAJ. ASS. COMP. RIGHT
400
BRACKET LEFT MAJOR ASSEMBLIES COMP.
405
CABLE DUCT COVER AT LEFT BRACKET
405
CABLE DUCT COVER TO BRACKET RIGHT
410
NUT VALVE TO BRACKET
410
NUT MOUNTING FRAME TO SUPPORT M6
490
BRACKET REAR RIGHT
500
AUXILIARY BATTERY
510
COVER BACKUP BATTERY
520
COMBINATION NUT TO MOUNTING M6
900
REP.SET CONTACT FRONT PREFUSE BOX SQUIB 2-PIN 0.5MM2,F32, ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41, CABLE TIE5 X A 002 997 24 90
