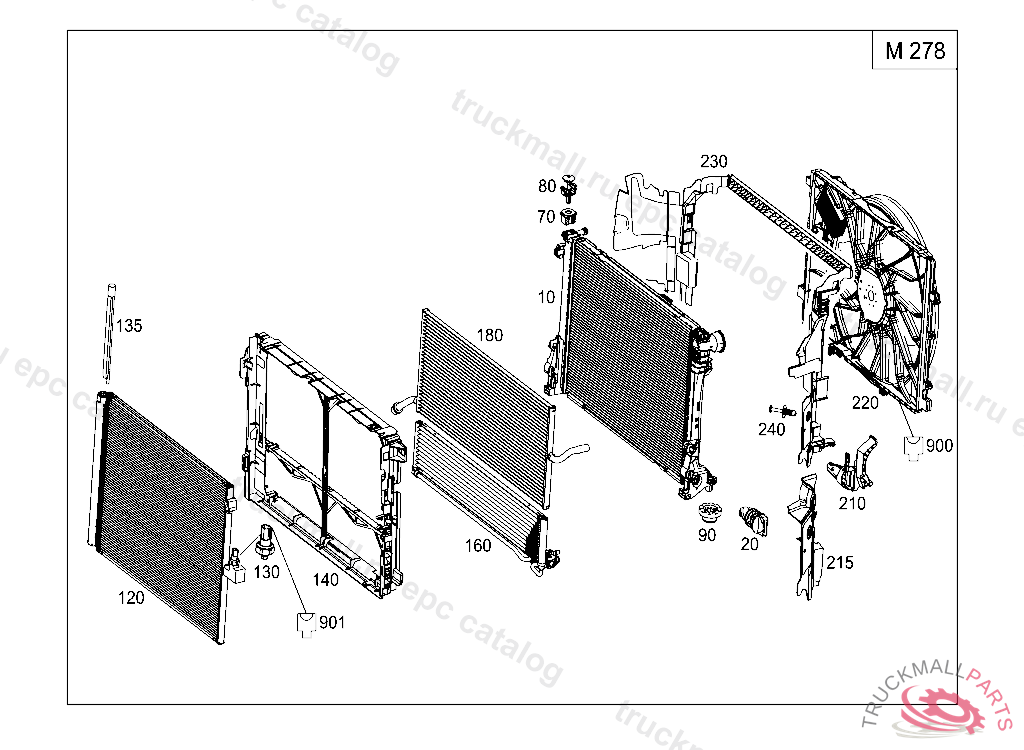

Поз.
Артикул
Описание
10
WATER COOLER
20
DRAIN PLUG DRAIN PLUG
70
BEARING TOP LEFT AND RIGHT, J 06236120041209
80
CLIP RADIATOR TO SUPPORT
90
RUBBER MOUNT BOTTOM LEFT & RIGHT
120
REFRIGERANT CONDENSER WITH PRESSURE SENSOR
130
PRESSURE SENSOR
135
REFRIGERANT DRIER F AC
140
MOUNTING FRAME FOR CONDENSER AND COOLER
160
OIL COOLER TRANSMISSION OIL
180
WATER COOLER LOW TEMPERATURE
220
BLOWER850 W
220
BLOWER600 W
230
AIR DUCT
240
RIVET SEALING LIP TO RADIATOR
900
PIN BUSHING HOUSING ENGINE CABLE HARNESS PLUG-CONNECTION 4-PIN SLK2.8, LSK8,X26/29
901
CLUTCH. PIN BUSHING HOUSING SIREN
