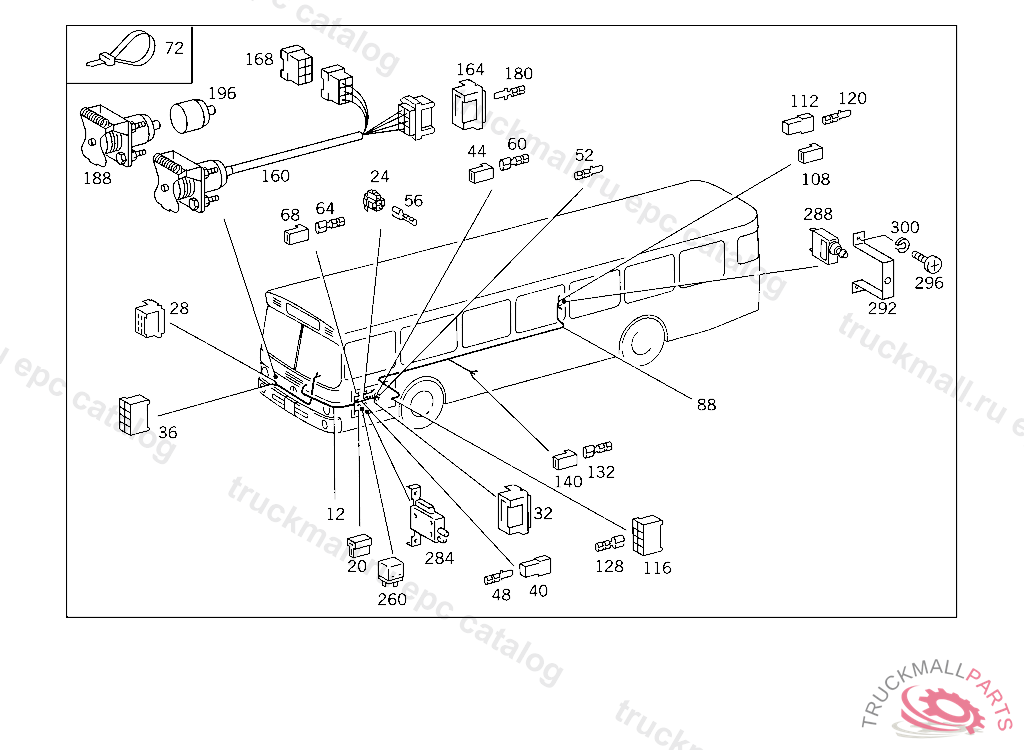

Поз.
Артикул
Описание
12
ELECTRIC CABLE FROM PLUG CONNECTION TO RELAY CONTROL BOX
20
PIN BUSHING HOUSING BIPOLAR
24
PIN BUSHING HOUSING 5-POLE
28
PIN BUSHING HOUSING 6-POLE
32
PLUG HOUSING 8-POLE
36
PIN BUSHING HOUSING 8-POLE
40
PIN BUSHING HOUSING UNIPOLAR
44
PIN BUSHING HOUSING UNIPOLAR
48
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
52
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
56
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
60
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
60
PIN BUSHING , Replaced By: A0005453726
60
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 6 MM2,5 097182
64
PIN BUSHING , Replaced By: A0075458226
64
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
68
BOOT PIN BUSHING
72
LOOM TIE LINE MOUNTING
72
LOOM TIE LINE MOUNTING 280 MM
88
ELECTRIC CABLE FROM WEBASTO HEATER TEMPERATURE FUSE TO ELECTRICAL APPARATUS COMPARTMENT
108
PIN BUSHING HOUSING UNIPOLAR
112
PIN BUSHING HOUSING UNIPOLAR
116
PIN BUSHING HOUSING 8-POLE
120
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
128
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
132
PIN BUSHING , Replaced By: A0075458226
132
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
132
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 6 MM2,5 097182
140
BOOT PIN BUSHING
160
ELECTRIC CABLE CHARGING PLUG SOCKET
164
PLUG HOUSING 8-POLE
168
PLUG HOUSING 6-POLE
180
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
180
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
180
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
188
PLUG SOCKET 12-POLE
188
PLUG SOCKET , Replaced By: N999861000000, +001N999861000001
196
GROMMET
196
CABLE SLEEVE , Replaced By: A0009976781
260
RELAYA32/K6
260
RELAYA32/K6
260
RELAYA32/K6
260
RELAY , Replaced By: A0035459605
260
RELAY , Replaced By: A0035459605
260
RELAY , Replaced By: A0035459605
260
RELAY , Replaced By: A0035459605
260
RELAY , Replaced By: A0035459605
260
RELAYA33, Replaced By: A0009822123
260
RELAY , Replaced By: A0035459605
284
FUSE TERMINAL 15 A
288
FUSE SECONDARY SWITCHBOARD 20 A
292
BRACKET SWITCH
296
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
300
LOCK WASHER BRACKET TO STEERING COLUMN END
999
BUTTON WEBASTO HEATER
999
ELECTRIC CABLE ,051000
999
999
