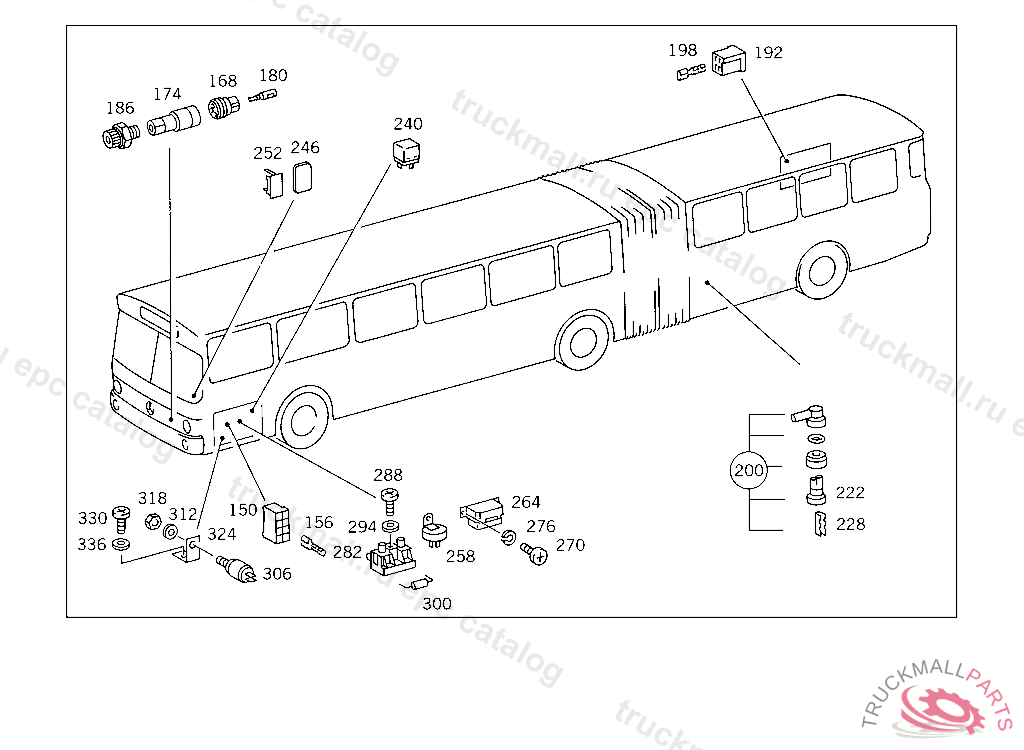

Поз.
Артикул
Описание
150
PIN BUSHING HOUSING 8-POLE
156
PIN BUSHING , Replaced By: A0075458226
168
PLUG SOCKET FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO LOCK-ANGLE SENDER UNIT
174
SHELL FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO LOCK-ANGLE SENDER UNIT
180
BUSHING 3-POLE
186
FITTING
192
PIN BUSHING HOUSING 4-POLE
198
PIN BUSHING , Replaced By: A0075458226
200
PLUG SOCKET (PARTS KIT),BIPOLAR SCREW CONNECTION, FOR CORRUGATED TUBE M 24X1
222
PLUG SOCKET PRESSURE SWITCH SCREW-CONNECTION TO M 24X1
228
ROUND PIN BUSHING REAR "ENR" SOLENOID VALVE BRANCH-OFF 0.75-2.5MM2
240
RELAYA33, Replaced By: A0009822123
240
RELAYA33
240
RELAY , Replaced By: A0035459605
246
LENS BLACK
252
BLIND CAP OPERATING UNIT
258
DIODE CASE AUXILIARY HEATER
264
DIODE BOX RELAY TYP: AK 336.1
264
DIODETYP: AK 336.7
270
SCREW STEP SWITCH AM 5X10
276
LOCK WASHER BRACKET TO STEERING COLUMN END
282
CABLE CONNECTOR
288
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
294
WASHER , Replaced By: N009021004207
294
WASHER COVERING TO CYCLONE AIR TRAP
300
RESISTORR 1.1
306
CONDENSER MAIN INSTRUMENT PANEL,027366
312
WASHER , Replaced By: N000125008443
312
WASHER EXHAUST MUFFLER TO STRAP
318
NUT , Replaced By: N304032008006
324
ANGLE CONDENSER
330
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
336
WASHER , Replaced By: N009021004207
336
WASHER COVERING TO CYCLONE AIR TRAP
999
BOOT PRESSURE SWITCH SCREW-CONNECTION TO M 27X1, M 24X1
999
PLUG SOCKET REPAIR VERSION, NOT FOR DANGER CATEGORY VEHICLES M 24X1
999
PLUG SOCKET , Replaced By: A3805402181
999
LENS COLORLESS
999
BULB TELL-TALE LAMP 24 V/1,2 W
999
TELL-TALE LAMP TELL-TALE LAMP
999
CABLE HARNESS ELECTRICAL COMPARTMENT,FRONT END/REAR END CONNECTION,DOOR CONTROL BRANCH-OFF, FROM IDENT NO. 040926 ALSO INSTALLED ON 038379,038620.
999
999
BRACKET
999
999
PLUG SOCKET FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO LOCK-ANGLE SENDER UNIT
999
LENS DOOR RELEASE
999
LENS "CANCEL BABY-CARRIAGE"
999
LENS AMBER, SYMBOL: BABY-CARRIAGE
999
SWITCH , Replaced By: A0025457307
999
SWITCH , Replaced By: A0025454407
999
SWITCH
999
RESISTOR CONDENSER
999
WASHER PRESSURE SWITCH SCREW-CONNECTION TO M 24X1,5 129167
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 24X1,5 129167
999
CONDENSER
999
RELAY , Replaced By: A0035459605
999
DIODE RELAY
999
CASETYP: AK 336.1
999
CASE , Replaced By: A0005400024
