Mercedes A1249900492 - Клипса

R 320 CDI 4MATIC / R 350 CDI 4MATIC 251.022

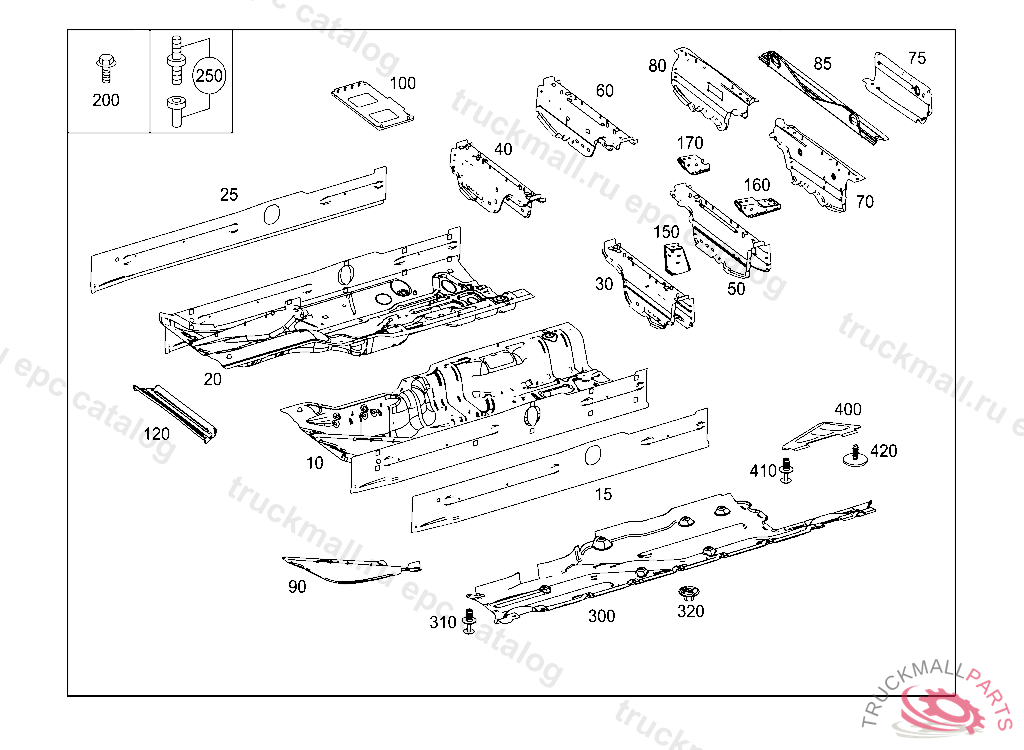

61 SUBSTRUCTURE - 015 FRONT FLOOR

Поз.
Артикул
Описание
10
A2516100960
BOTTOM LEFT
15
A2516110123
SIDE MEMBER LEFT
20
A2516101060
BOTTOM RIGHT
25
A2516110223
SIDE MEMBER RIGHT
30
A2516101720
CROSS MEMBER LEFT FRONT
40
A2516101820
CROSS MEMBER RIGHT FRONT
50
A2516101920
CROSS MEMBER LEFT REAR
60
A2516102020
CROSS MEMBER RIGHT REAR
70
A2516102320
CROSS MEMBER LEFT
75
A2516102120
CROSS MEMBER LEFT
75
A2516102220
CROSS MEMBER RIGHT
80
A2516102420
CROSS MEMBER RIGHT
85
A2516121015
CROSS MEMBER UNDERNEATH REAR SEAT
90
A2516100407
FRAME GIRDER RIGHT
90
A2516100307
FRAME GIRDER LEFT
100
A2516100073
FRAME BATTERY FRAME
120
A2516120514
CROSS MEMBER TO FRONT FLOOR, A 11496520100722801
120
A2516120034
STRUT TO FRONT FLOOR, A 10483520090930800
150
A2519100057
CONSOLE SEAT MOUNTING
160
A2519100157
CONSOLE REAR INSIDE
170
A2519100257
CONSOLE REAR OUTSIDE
200
A2029900122
BOLT FRONT SEAT TO CONSOLE M10X28
200
N000000003853
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
250
A0009901210
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
300
A2516190238
COVER MAIN FLOOR,ON THE RIGHT
300
A2516190138
COVER FLOOR,LEFT
310
A1249900492
RIVET COVERING TO SIDE MEMBER
320
A2019900050
PLASTIC NUT. NUT
400
A2516190938
COVER LEFT
410
A1249900492
RIVET COVERING TO SIDE MEMBER
420
A0019901236
SCREW PARTITION PANEL TO FRONT FENDER, 003 109847 007 098846 086 007461 093 010729 102,103 304111 105 266568 183 019766 190 024811 193 007801 200 082947 280 003503 283 008887
