Mercedes A1077580098 - ПРОКЛАДКА УПЛОТНИТЕЛЬНАЯ

500 SL 107.046 FROM 09/85

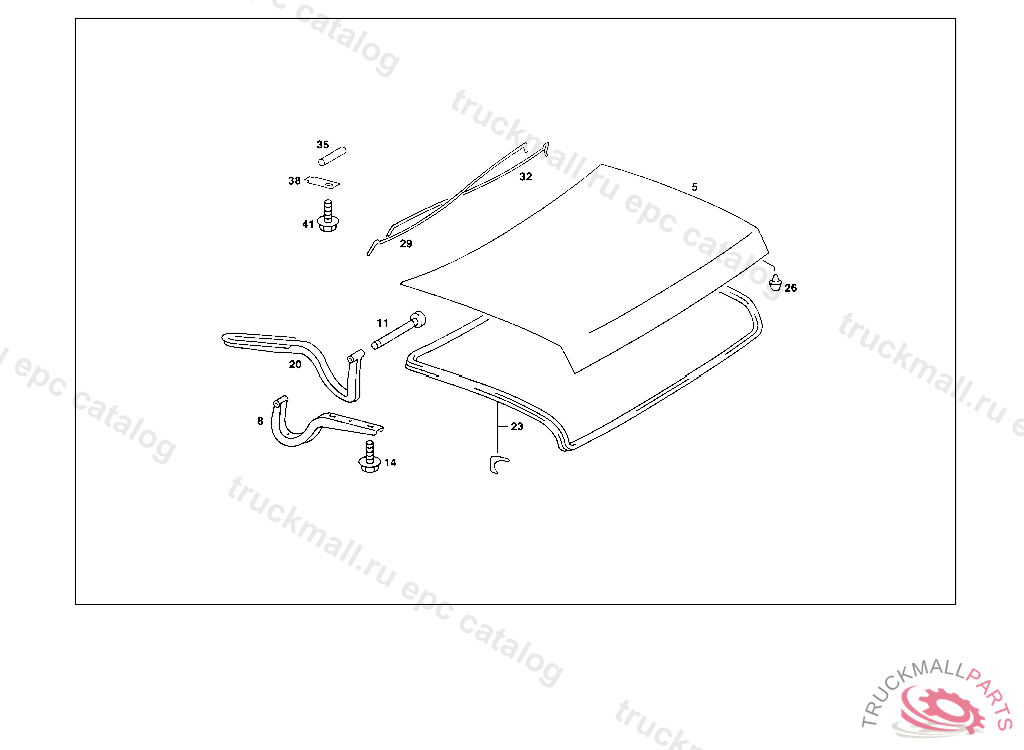

75 REAR LID - 015 REAR LID

Поз.
Артикул
Описание
5
A1077502075
REAR LID STEEL,LESS HOLES FOR TYPE DESIGNATION, TO BE ADAPTED DURING ASSEMBLY
8
A1077500887
HINGE RIGHT
8
A1077500787
HINGE LEFT
11
A1077570015
PIN
14
N914126006001
SCREW , Replaced By: N910105006002
14
N910105006002
HEXAGON HEAD BOLT
20
A1077501187
HINGE LEFT
20
A1077501287
HINGE RIGHT
23
A1077580098
SEAL
26
A1119871540
RUBBER BUFFER
29
A1077581236
SPRING REAR LID TORSION BAR
32
A1077580336
SPRING REAR-LID/FOLDING-TOP-CASE-COVER TORSION BAR
35
N916030000527
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
35
A1149971882
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
35
A0109971782
HOSE , Replaced By: A1149971882
35
A2304768726
HOSE FROM FEED LINE TO FILTER 240 MM
38
A1077580011
PLATE
41
N914007006013
COMBINATION BOLT
