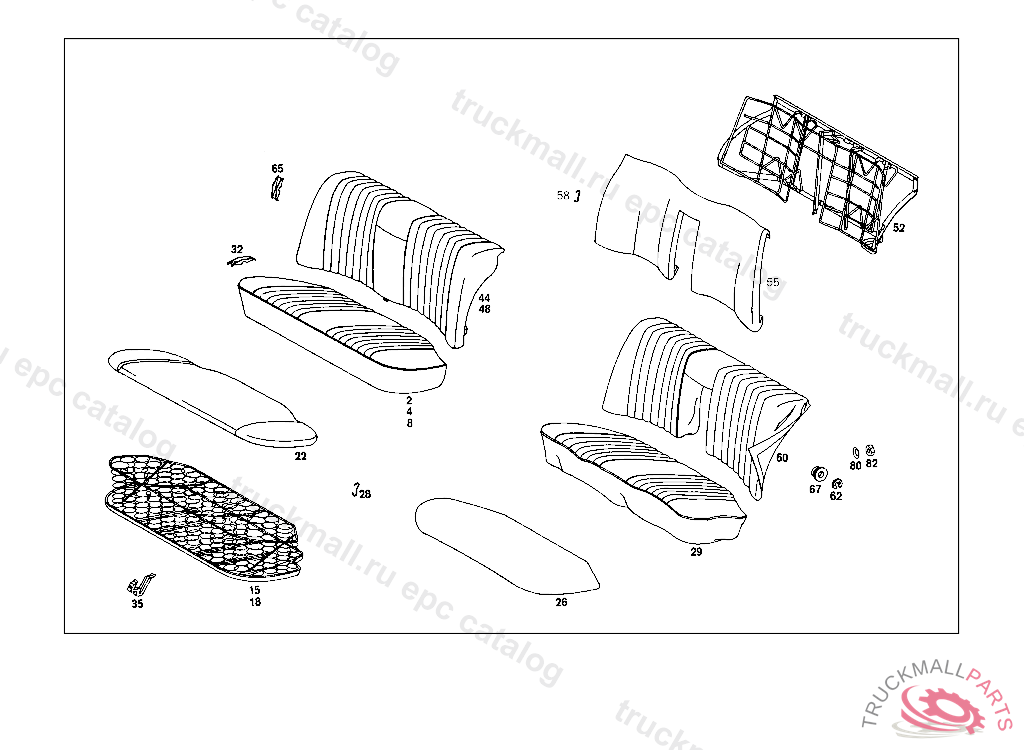

240 D - 115.119 - 92 REAR SEAT BENCH
Поз.
Артикул
Описание
18
CUSHION FRAME
26
PAD
28
CLIP COVER TO PAD
32
CLIP
35
BRACKET
48
BACKREST
52
BACKREST FRAME , 034415
55
PAD , Replaced By: A1159241516
55
PAD
58
CLIP COVER TO PAD
60
COVER , STATE COLOR NUMBER WHEN ORDERING
62
LOCK PLATE
65
CLIP
67
SUPPORT
80
WASHER
82
NUT BALL PIVOT TO LEVER
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
SCREW
999
COVER , STATE COLOR NUMBER WHEN ORDERING
999
REAR SEAT CUSHION
999
BACKREST LESS COVER
999
SEAT CUSHION LESS COVER
