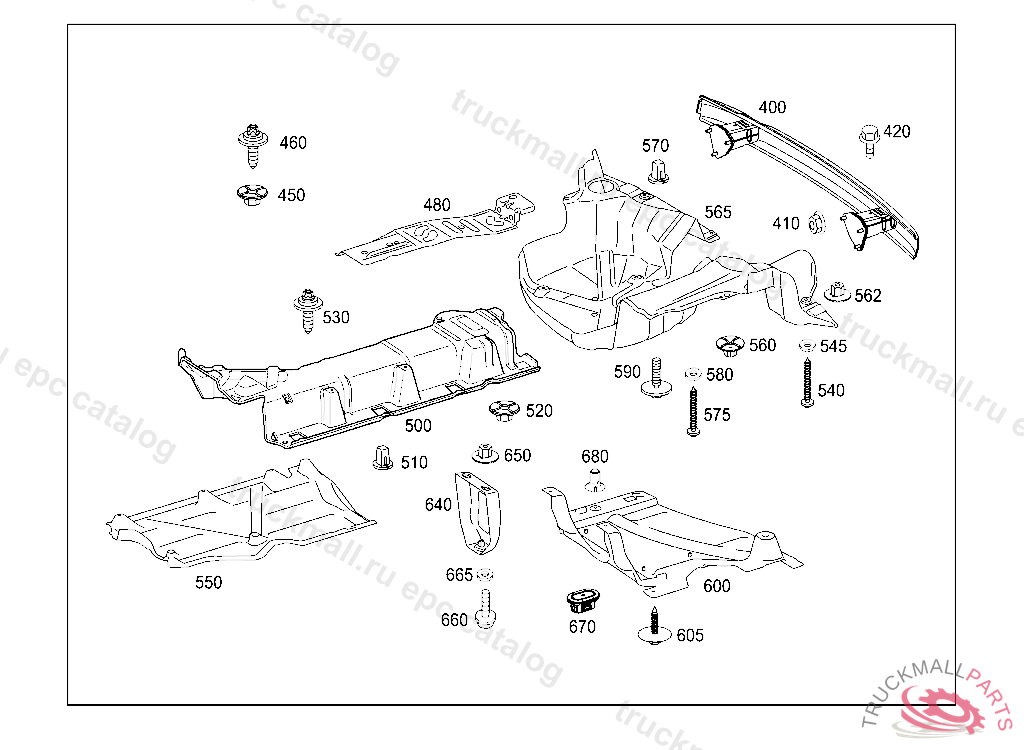

Поз.
Артикул
Описание
400
CROSS MEMBER WITH PIVOTING BALL HEAD, J 62572320080602
400
CROSS MEMBER REAR END,WITH SEALS
400
CROSS MEMBER WITH DETACHABLE BALL HEAD, J 62572220080602
400
CROSS MEMBER WITH DETACHABLE BALL HEAD, J 62572220080602, Replaced By: A1693100137
400
CROSS MEMBER WITH DETACHABLE BALL HEAD, J 62572220080602, Replaced By: A1693100237
410
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
420
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
450
PLASTIC NUT. NUT
460
HEX. ROUND SCREWS. SCREW BRACKET TO SUPPORT M5 X 20
460
BOLT BRACKET TO SUBFLOOR M8X24
480
COVER TUNNEL
500
COVER FLOOR
510
TREENAIL COVER TRIM AT SIDE WALL, LEFT
520
PLASTIC NUT. NUT
530
HEX. ROUND SCREWS. SCREW BRACKET TO SUPPORT M5 X 20
540
HEX. ROUND SCREWS. SCREW BRACKET TO SUPPORT M5 X 20
545
WASHER STOP AND TAIL LIGHTS
550
COVER BELOW MAIN FLOOR, FRONT RIGHT
560
PLASTIC NUT. NUT
565
COVER SPARE WHEEL WELL
570
TREENAIL COVER TRIM AT SIDE WALL, LEFT
575
HEX. ROUND SCREWS. SCREW BRACKET TO SUPPORT M5 X 20
580
WASHER STOP AND TAIL LIGHTS
600
COVER SPARE WHEEL WELL
605
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
640
BRACKET
650
PLASTIC NUT. NUT
660
HEX. ROUND SCREWS. SCREW BRACKET TO SUPPORT M5 X 20
665
WASHER STOP AND TAIL LIGHTS
670
COVER LEFT AND RIGHT REAR SIDE MEMBERS
670
COVER LEFT
670
COVER LEFT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 29411020060217, Replaced By: A1696180178
680
CAP COVER AT SPARE WHEEL RECESS
