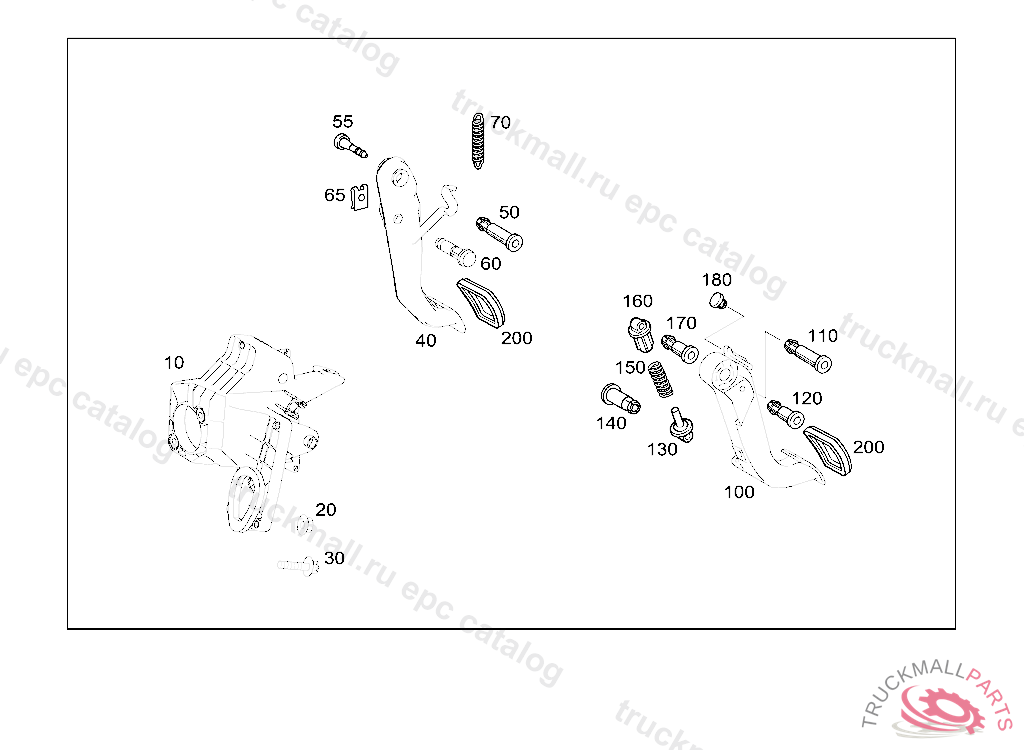

Поз.
Артикул
Описание
10
BEARING BRACKET PEDAL PLATE
10
BEARING BRACKET PEDAL BEARING BRACKET, J 54681420071024
10
BEARING BRACKET PEDAL PLATE
10
BEARING BRACKET PEDAL PLATE
10
PEDAL BEARING BRACKET PEDAL BEARING BRACKET, J 54681520071024
10
BEARING BRACKET PEDAL PLATE
10
BEARING BRACKET PEDAL BEARING BRACKET, J 54681420071024
10
BEARING BRACKET PEDAL PLATE
20
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
30
SCREW 3/2-WAY VALVE TO BRACKET
40
BRAKE PEDAL , Replaced By: A1692902018
40
BRAKE PEDAL , Replaced By: A1692902118
40
BRAKE PEDAL , Replaced By: A1692902218
40
BRAKE PEDAL
40
BRAKE PEDAL
40
BRAKE PEDAL , J 54681520071024
40
BRAKE PEDAL , J 54681420071024
40
BRAKE PEDAL
50
PIN CLUTCH PEDAL TO BEARING BRACKET
55
PLUG
60
PIN BRAKE PEDAL TO BRAKE BOOSTER
65
LOCK PULL TO FASTENER
70
TENSION SPRING BRAKE PEDAL
100
PEDAL CLUTCH PEDAL
100
CLUTCH PEDAL , J 54681420071024
100
PEDAL CLUTCH PEDAL
100
CLUTCH PEDAL , J 54681420071024
100
CLUTCH PEDAL , J 54681420071024
100
CLUTCH PEDAL , J 54681520071024
110
PIN CLUTCH PEDAL TO BEARING BRACKET
120
PIN SPRING RETAINER
130
ROD OVER-CENTER ACTING SPRING
140
PIN SPRING RETAINER
150
PUSH SPRING BETWEEN THRUST ROD AND SPRING CUP
160
SPRING RETAINER OVER-CENTER ACTING SPRING
170
PIN SPRING RETAINER
180
STOP BUFFER CLUTCH PEDAL, J 49945320070703
180
STOP CLUTCH PEDAL
180
STOP CLUTCH PEDAL
200
PAD CLUTCH PEDAL
200
PAD BRAKE PEDAL
200
PAD BRAKE PEDAL
200
PAD BRAKE PEDAL AND CLUTCH PEDAL
