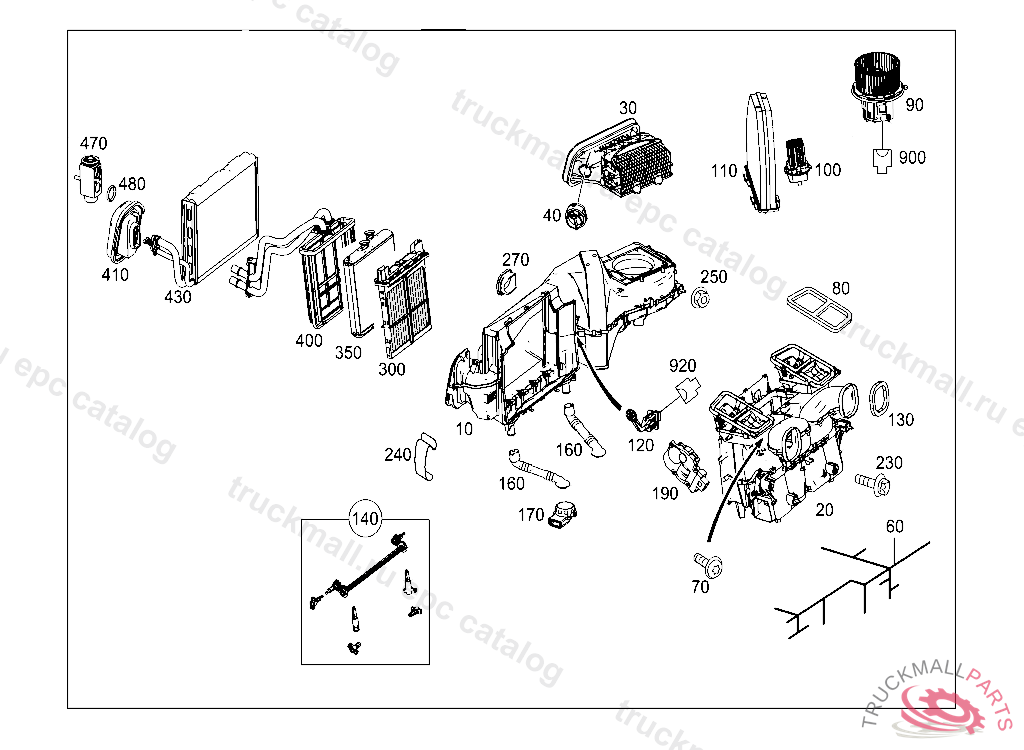

Поз.
Артикул
Описание
10
HOUSING UPPER AND LOWER HALVES
10
HOUSING UPPER AND LOWER HALVES
20
HOUSING AC HOUSING AIR CONDITIONER CASE
20
HOUSING AC HOUSING AIR CONDITIONER CASE
30
HOUSING FRESH AIR/CIRCULATING AIR
30
HOUSING FRESH AIR/CIRCULATING AIR
40
HUMIDITY SENSOR DEW POINT SENSOR, A 24600620070301
60
ELECTRICAL WIRING HARNESS
60
ELECTRICAL WIRING HARNESS
70
PAN HEAD SCREW. SCREW GROUND CONNECTION
80
TS SEALING AIR DUCT TOP
90
IMPELLER BLOWER , Replaced By: A2048200908
90
RADIAL BLOWER
100
BLOWER REGULATOR
110
COMBINATION FILTER WITH COVER, Replaced By: A2128300218
120
TEMPERATURE SENSOR EVAPORATOR
130
SEALING AIR DUCT CENTRAL NOZZLE
140
TS OPERATING LEVER PARTS KIT
160
MOLDED HOSE LEFT AND RIGHT CONDENSATION DRAIN
170
DRAIN PIPE CONDENSED WATER
190
STEPPER MOTOR SERVOMOTOR
230
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
240
SPRING
250
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
270
GROMMET HEATER CASE TO FIRE WALL
300
COVER FOR HEATER BOOSTER OPENING
350
HEAT EXCHANGER
400
PIPELINE PARTS KIT
400
PIPELINE PARTS KIT
410
SEAL FIRE WALL
410
SEAL FIRE WALL
430
EVAPORATOR
430
EVAPORATOR
470
VALVE EXPANSION VALVE
470
VALVE PIPE LINE CONNECTION 18MM, A 33977120020418 E 02000020070101
480
O-RING HOSE TO EXPANSION VALVE 17X2
480
SEAL RING FROM LIQUID TANK TO T-FITTING
900
RECEPTACLE HOUSING HEATED REAR WINDOW PANE PLUG-CONNECTION 2-PIN MCP6.3,X19
920
PIN BUSHING HOUSING INFRARED CONTROL MODULE FOR DRIVE AUTHORIZATION SYSTEM
