Поз.
Артикул
Описание

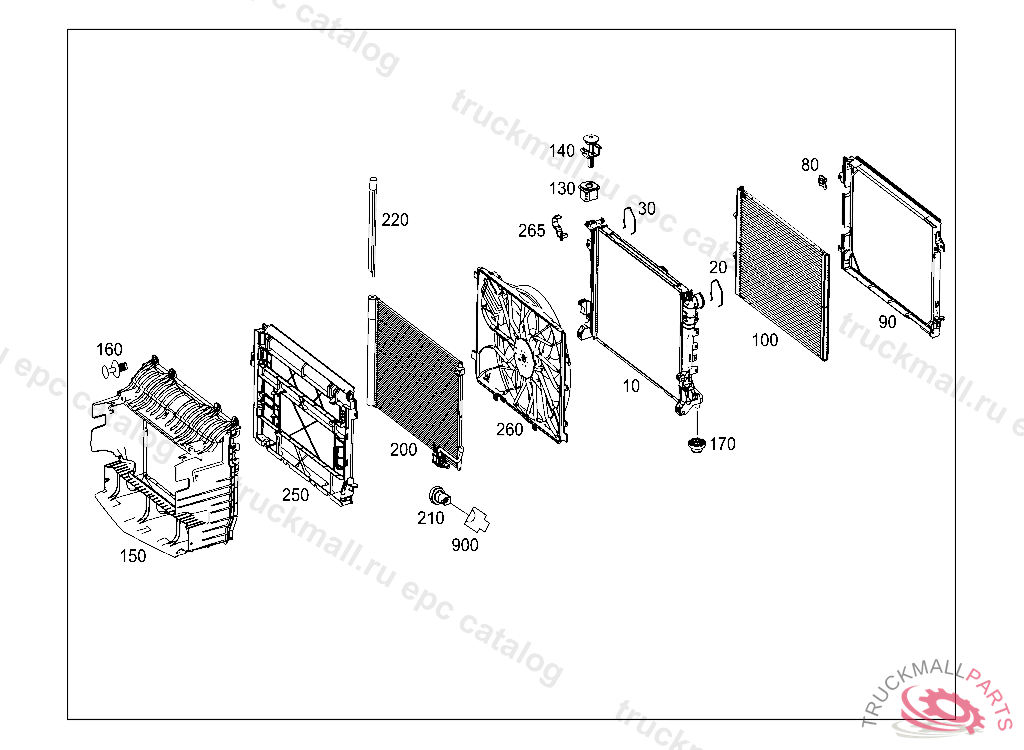

10
WATER COOLER
20
DETENT SPRING COOLANT HOSE, LEFT, TO RADIATOR SCB3646.4MM
30
DETENT SPRING COOLANT HOSE, LEFT, TO RADIATOR SCB3646.4MM
30
STOP SPRING VENT LINE AT COOLER, RIGHT 8.8 MM
30
DETENT SPRING FILLING HOSE TO RADIATOR SCB1727MM
80
SECURING FRAME AT COOLER
90
MOUNTING FRAME RADIATOR
100
WATER COOLER LOW TEMPERATURE
130
BEARING TOP LEFT AND RIGHT, J 06236120041209
140
CLIP RADIATOR TOP
150
AIR DUCT
160
RIVET BUSHING AND LEVER TO CAB
170
RUBBER MOUNT BOTTOM LEFT & RIGHT
200
CAPACITOR
210
PRESSURE SENSOR
220
REFRIGERANT DRIER F AC
250
MOUNTING FRAME CONDENSER
260
BLOWER850 W
265
BRACKET AT BRACKET
900
CLUTCH. PIN BUSHING HOUSING SIREN
