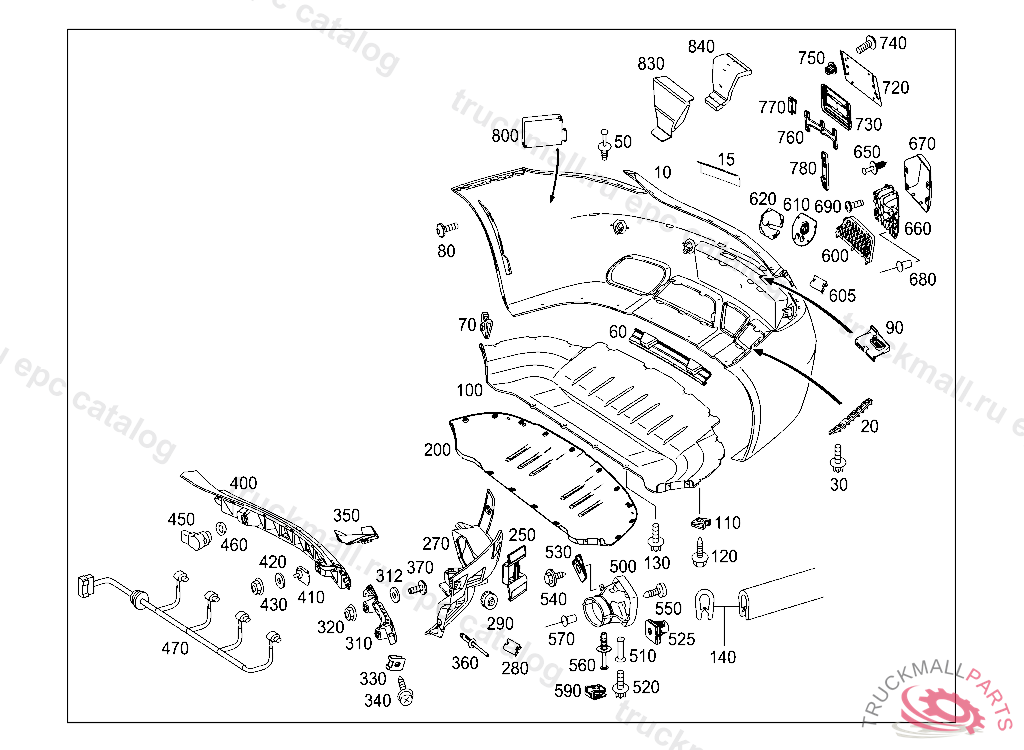

Поз.
Артикул
Описание
10
TRIM BUMPER REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT197L9000 COLORLESS
15
TRIM STRIP FINAL EDITION
20
SIDE STABILITY RIGHT
20
SIDE STABILITY LEFT
30
HEXALOBULAR BOLT SUCTION LINE TO BRACKET M6X45,V 225942 FOR DIESEL ENGINE ONLY (MS5)
50
RIVET SEALING LIP TO RADIATOR
60
BRACKET AT BUMPER
70
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
80
HEXALOBULAR BOLT BUMPER COVERING M6X20
90
BRACKET LICENSE PLATE LAMP,RIGHT
90
BRACKET LICENSE PLATE LAMP,LEFT
100
COVER SUBFLOOR
110
LOCK NUT. LOCK PANELLING TO BUMPER
120
HEXALOBULAR BOLT UNDERFLOOR PANELING TO BODYSHELL M6X16
130
BOLT SUPPORT TO CROSS MEMBER M6X16
140
EDGE GUARD BONDED TO WINDOW FRAME, LEFT
200
COVER BUMPER AREA DIFFUSER
250
BRACKET BLIND SPOT ASSIST, LEFT
250
BRACKET BLIND SPOT ASSIST, RIGHT
270
BASIC MOUNTING FOR BUMPER BOTTOM LEFT
270
BASIC MOUNTING FOR BUMPER BOTTOM RIGHT
280
CLIP
290
GUIDE BUMPER ATTACHMENT,LATERAL
310
BASIC MOUNTING FOR BUMPER RIGHT
310
BASIC MOUNTING FOR BUMPER LEFT
312
INTERMEDIATE LAYER BASIC CARRIER LEFT
320
PLASTIC NUT COVER AT LOAD COMPARTMENT WELL
330
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
340
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
350
COVER RAIL LEFT
350
COVER RAIL RIGHT
360
BLIND RIVET LOWER SECTION TO PANEL,LEFT AND RIGHT
370
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
400
BASIC MOUNTING FOR BUMPER CENTRAL
410
PLATE
420
SEALING WASHER AT PLATE
430
NUT FENDER ON SIDE PANEL M6
450
SENSOR CENTRAL, TO BE PAINTED PRIOR TO INSTALLATION
460
SPACER RING PARKTRONIC SYSTEM
470
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
470
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
500
TAIL PIPE COVER LEFT
500
TAIL PIPE COVER RIGHT
510
BRACKET TAIL PIPE COVER
520
TAPPING SCREW PROTECTIVE GRILLE 4.8X16 MM
525
NUT TAIL PIPE ON THE LEFT
530
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
540
HEXALOBULAR BOLTM 6 X 60
550
TAPPING SCREW PROTECTIVE GRILLE 4.8X16 MM
560
EXPANSION RIVET ORNAMENTAL COVER TO BUMPER
560
RIVET SEALING LIP TO RADIATOR
590
LOCK NUT. LOCK PANELLING TO BUMPER
600
VENTILATION LOUVER BOTTOM RIGHT
600
VENTILATION LOUVER BOTTOM LEFT
600
VENTILATION LOUVER BOTTOM RIGHT
605
CLIP
610
BRACKET TO BOTTOM RIGHT VENT GRILLE
620
COVER BUMPER AREA TO BOTTOM RIGHT VENT GRILLE
650
RIVET COVERING TO SIDE MEMBER
660
REINFORCEMENT RIGHT
660
REINFORCEMENT LEFT
670
COVER BUMPER AREA LEFT, 9999QFT197L9000 COLORLESS
670
COVER BUMPER AREA RIGHT, 9999QFT197L9000 COLORLESS
680
BLIND RIVET LOWER SECTION TO PANEL,LEFT AND RIGHT
690
BOLT CONTACT PLATE FASTENER M5X10
720
MOUNTING PLATE DESIGNATION
720
FASTENING PLATE DESIGNATION
730
FASTENING PLATE DESIGNATION
740
SCREW COVERING TO FRONT BUMPER
750
CLIP FASTENER. LOCK PROTECTIVE GRILLE ON CONDENSER BRACKET
760
BRACKET DESIGNATION
770
CLIP
780
BRACKET LICENSE PLATE AT LEFT
780
BRACKET LICENSE PLATE AT RIGHT
800
RADAR SENSOR LEFT AND RIGHT OUTSIDE, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
800
RADAR SENSOR LEFT AND RIGHT OUTSIDE, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
800
RADAR SENSOR LEFT AND RIGHT OUTSIDE, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 89369020130925 L 03261020130228 V 00224420130228 PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE, Replaced By: A0009054503
830
COVER BUMPER AREA BACK-UP LAMP
840
COVER BUMPER AREA HEAT GUARD
