Поз.
Артикул
Описание

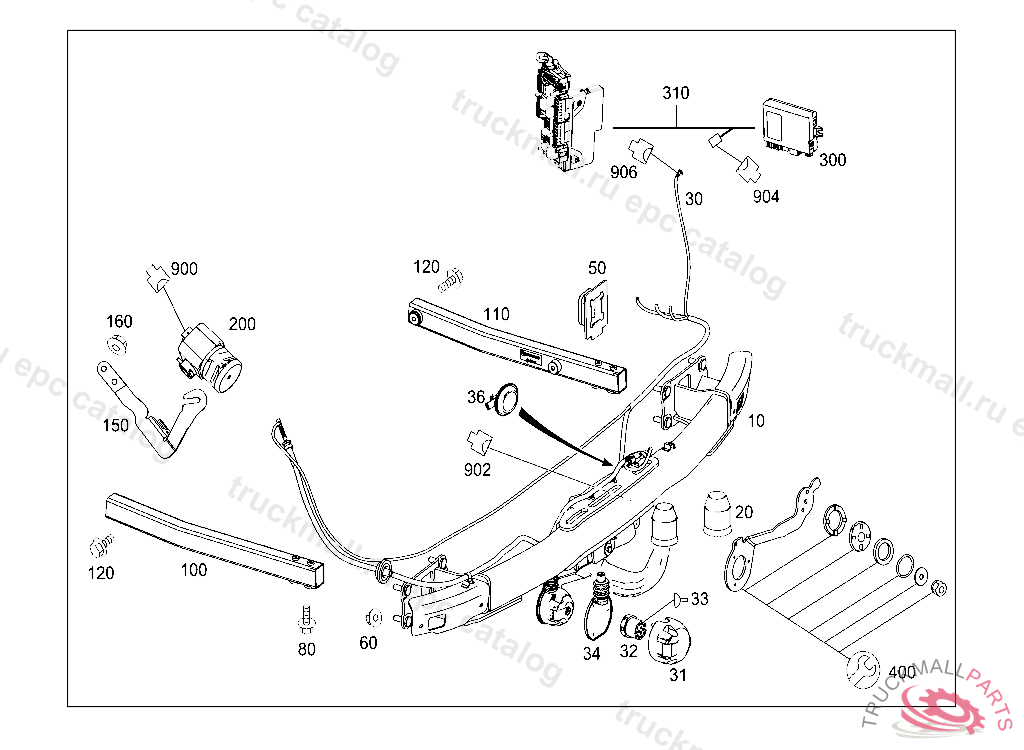

10
TRAILER HITCH
10
TRAILER COUPLING , TO BE ADAPTED DURING ASSEMBLY
10
TRAILER HITCH
10
TRAILER COUPLING , F 19870620080601
10
TRAILER COUPLING , F 24684720080831 TO BE ADAPTED DURING ASSEMBLY
10
TRAILER COUPLING , F 19870620080601
10
TRAILER COUPLING , F 19870720080601 F 24684620080831
10
TRAILER HITCH , F 19870720080601, Replaced By: A2043100904
10
TRAILER HITCH , Replaced By: A2043100400
20
CAP BALL HEAD
30
ELECTRICAL WIRING HARNESS
30
WIRING HARNESS , F 24684720080831
30
WIRING HARNESS , F 24684620080831
31
PLUG SOCKET HITCHING MECHANISM X58
32
PLUG HOUSING. PIN BUSHING HOUSING SOCKET, TRAILER COUPLING
33
FEMALE CONTACT. ROUND PIN BUSHINGTO 030 545 26 28
34
GROMMET SOCKET, TRAILER COUPLING, A 97499920070630809 E 06000020080901809
36
GROMMET
36
GROMMET , A 22807820080807 F 24684620080831 R 05546220080922
50
GASKET CROSS MEMBER TO SIDE MEMBER REINFORCEMENTS
60
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
80
HEXAGON HEAD BOLT CROSS MEMBER TO SIDE MEMBER REINFORCEMENTS M12X35
100
REINFORCEMENT LEFT
110
REINFORCEMENT RIGHT
120
SCREW-AND-WASHER ASSEMBLY REINFORCEMENT FASTENING M10X25
150
CONSOLE
160
NUT , Replaced By: N913023006001
200
HANDLE
310
ELECTRICAL WIRING HARNESS ELECTRICAL CENTER AT TRAILER CONTROL U NIT
310
ELECT. LINE ELECTRICAL CENTER AT TRAILER CONTROL U NIT
400
MOUNTING BRACKET REPAIR KIT
900
CLUTCH RELEASE FOR TRAILER HITCH 6-PIN MQS,A63
900
PLUG HOUSING DOOR SEPARATION POINT,B-PILLAR
902
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
904
HOUSING COCKPIT MOTOR PLUG-IN CONNECTOR 2-PIN SLK2.8,X18/28
906
PIN BUSHING HOUSING POWER SOCKET 2-PIN SLK2.8,X58/27
