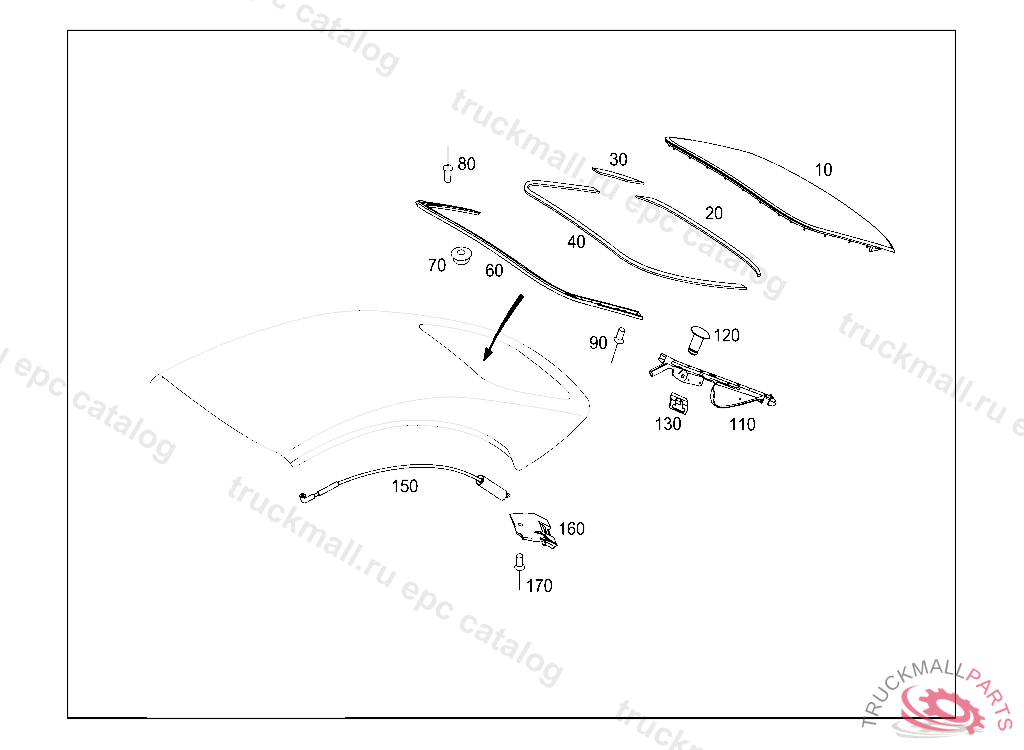

E 400 BLUE EFFICIENCY - 207.465 - 77 FOLDING TOP
Поз.
Артикул
Описание
10
REAR WINDOW
20
SEAL AT FRAME CENTRAL
30
SEAL AT FRAME,RIGHT
30
SEAL AT FRAME, LEFT
40
SEAL AT FRAME 1500 MM
60
SOFT TOP FRAME AT REAR WINDOW
70
NUT RELAY TO BRACKET M5
80
BLIND RIVET LEFT AND RIGHT 13X9.5
90
RIVET
110
GUIDE RAIL RIGHT
110
GUIDE RAIL LEFT
120
BOLT W HEAD A GROOVE GUIDE RAIL
130
LOCK PULL TO FASTENER
150
TENSIONING ROPE
160
FIXTURE REAR WINDOW TENSION CABLE,RIGHT
160
FIXTURE REAR WINDOW TENSION CABLE,LEFT
170
NIPPLE FOR CONTROL CABLE MOUNTING, SUPPORT
