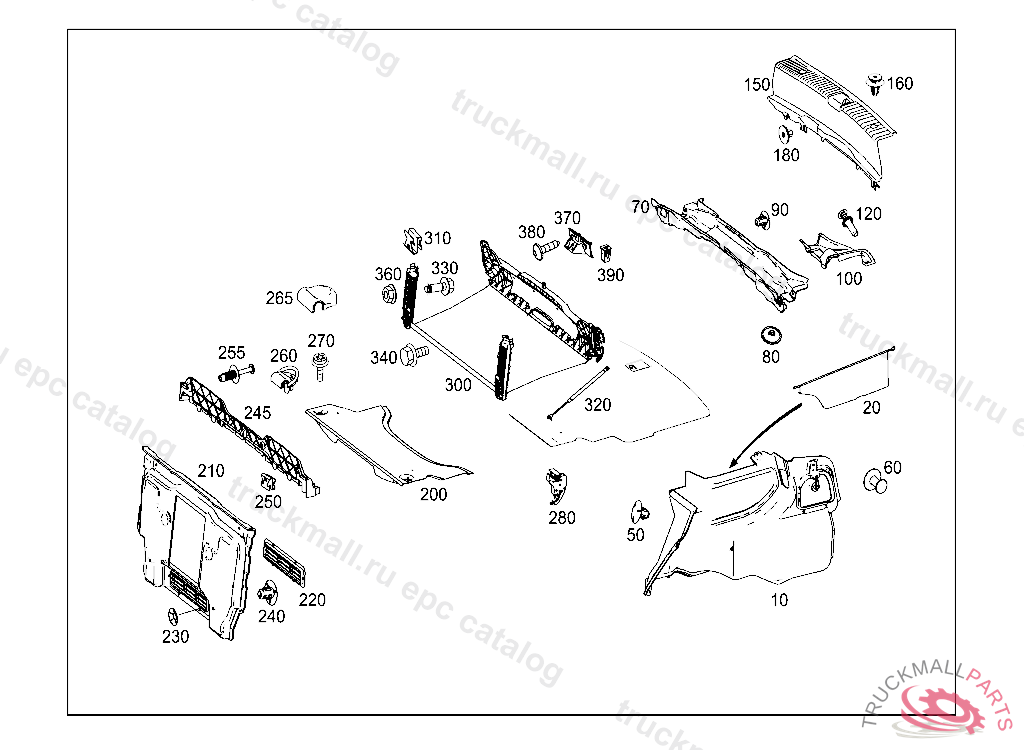

Поз.
Артикул
Описание
10
TRIM PANEL LOADING SPACE LUGGAGE COMPARTMENT,RIGHT, 9F08QFT207A0700 SINGLE TONE BLACK
10
PANELING LUGGAGE COMPARTMENT,LEFT, 9F08QFT207A0700 SINGLE TONE BLACK
20
PANELING REAR SIDE PANEL RIGHT, 9C44QFT209A0073 ANTHRACITE
20
PANELING REAR SIDE PANEL LEFT, 9C44QFT209A0073 ANTHRACITE
50
PLUG-IN MOUNTING LEFT PANELLING TO BODY, F 50004620100331
60
COVER CAP REFRIGERANT LINE
70
CROSS MEMBER PANELLING, 9F08QFT207A0700 SINGLE TONE BLACK
80
FASTENER BUTTON PANELLING TO SIDE PANEL,LEFT AND RIGHT
90
PLUG-IN MOUNTING LEFT PANELLING TO BODY, F 50004620100331
100
COVER LEFT
100
COVER RIGHT
120
EXPANSION RIVET FASTENING COVER LEFT AND RIGHT
150
PANELING LOADING EDGE, 9051QFT207A0220 BLACK
160
CLIP
180
PLASTIC NUT. NUT
200
COVER TRUNK FLOOR FRONT, 9F08QFT207A0700 SINGLE TONE BLACK
210
PANELING REAR PANEL, 9F08QFT207A0700 SINGLE TONE BLACK
210
PANELING REAR PANEL, 9F08QFT207A0700 SINGLE TONE BLACK
220
COVER LOUDSPEAKER, 9051QFT207A0220 BLACK
230
LOCK PLATE CONSOLE TO REAR PANELLING,TOP
240
PLUG-IN MOUNTING LEFT PANELLING TO BODY, F 50004620100331
245
EDGE GUARD , 9051QFT207A0230 BLACK
250
CLIP
255
RIVET SEALING LIP TO RADIATOR
260
BRACKET ANCHORING LUG, V 00190020131104 9051QFT246A0693 BLACK
265
COVER ANCHORING LUG, 9051QFT246A0693 BLACK
270
BOLT REAR BRACKET MOUNTING M8X22
280
SWITCH MICRO-SWITCH
300
PARTITION PANEL LUGGAGE COMPARTMENT FLOOR COVERING, 9051QFT207A0220 BLACK
310
CLIP
320
GAS PRESSURE STRUT PARTITION PANEL TO BODY
330
HEXALOBULAR BOLT. SCREW
340
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
360
NUT , Replaced By: N913023006001
370
BRACKET MOUNTING PARTITION PANEL, 9051QFT207A0220 BLACK
380
SHEET METAL SCREW BRACKET TO SUPPORT
390
BODY-BOUND NUT CONTROL UNIT FIXTURE
