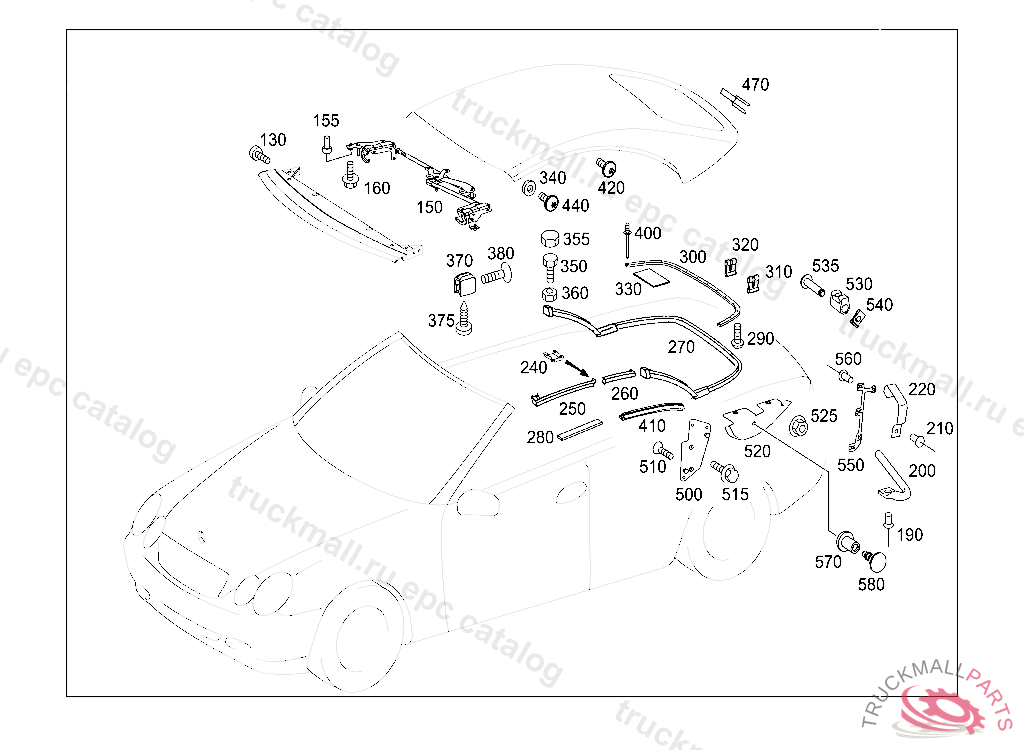

Поз.
Артикул
Описание
130
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
150
SOFT TOP LOCK TO SOFT TOP FRONT, OBSERVE WORK INSTRUCTIONS IN WIS WIS-NET#AR77.33-P-1006QA#
150
CATCH TO SOFT TOP FRONT, OBSERVE WORK INSTRUCTIONS IN WIS WIS-NET#AR77.33-P-1006QA#, Replaced By: A2097700226
155
STOP BUFFER TO SOFT TOP FRONT
160
SCREW , Replaced By: A1409842829
190
BLIND RIVET LEFT AND RIGHT 13X9.5
200
CLAMP LEFT
200
CLAMP RIGHT
210
BLIND RIVET LEFT AND RIGHT 13X9.5
220
CLAMP LEFT
220
CLAMP RIGHT
240
END CAP RIGHT REAR ROOF RAIL
240
END CAP REAR LEFT ROOF RAIL
250
SEAL FRONT LEFT
250
SEAL FRONT RIGHT
260
SEAL CENTRAL RIGHT
260
SEAL CENTRAL LEFT
270
SEAL REAR
280
SEAL MOSS TYPE RUBBER
290
HEXALOBULAR BOLT GAS CARTRIDGE TO ROOF FRAME, LEFT M5X10
290
HEXALOBULAR BOLT TURNING ANGLE SENSOR AT BRACKET M5X10
300
RAIL
310
CLIP LEVER TO BRACKET
320
LOCK PULL TO FASTENER
330
PAD REAR BOW
340
WASHER COMPRESSED AIR LINE TO BRACKET
340
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
350
SCREW BRACKET TO SIDE MEMBER
355
STOP ROOF RAIL,FRONT
360
NUT
370
STOP ROOF REAR RAIL
375
SCREW LOCK COVERING
380
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
400
RIVET
410
RETAINING RAIL REAR LEFT ROOF RAIL
410
SOFT TOP FRAME RIGHT REAR ROOF RAIL
420
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
440
BOLT. SCREW , A 843747 X 019420 EXEPT ON VEHICULES WITHOUT CODE 059 EXCEPT FOR X 010297
470
CLIP AT RETAINING RAIL
500
PLATE LEFT
500
PLATE RIGHT
510
SCREW LOCK COVERING
515
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
515
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
520
RAIL REAR WINDOW ON THE LEFT
520
RAIL REAR WINDOW ON THE RIGHT
525
NUT RELAY TO BRACKET M5
530
SLIDING SHOE GUIDE RAIL
535
COLLAR PIN SLIDE
540
CLIP LEVER
550
BRACKET RIGHT
550
BRACKET LEFT
560
BLIND RIVET BRACKET
570
FASTENER BUTTON LOWER PART
580
FASTENER BUTTON UPPER PART
