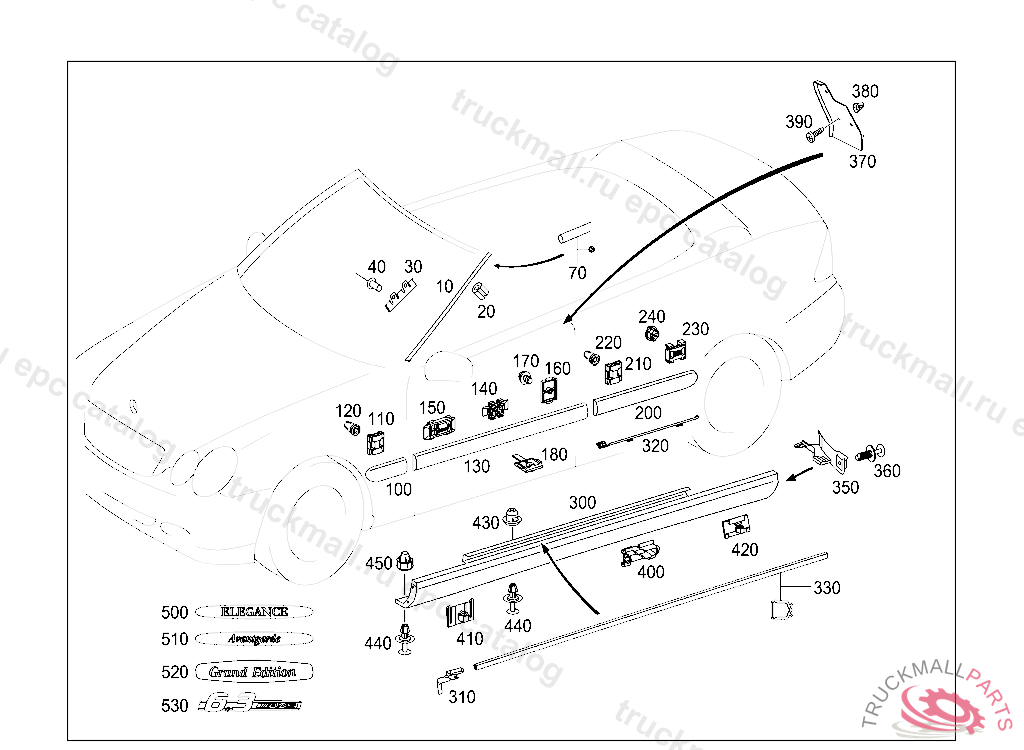

Поз.
Артикул
Описание
10
LEDGE OUTSIDE LEFT A-PILLAR
10
LEDGE OUTSIDE RIGHT A-PILLAR
20
RUBBER PAD , Replaced By: A1263280181
30
CLIP COVER ON WINDSHIELD
40
BLIND RIVET LEFT AND RIGHT 13X9.5
70
PLUG
70
PAD UNDER WATER DEFLECTOR LEFT AND RIGHT
100
LEDGE LEFT FRONT FENDER
100
LEDGE RIGHT FRONT FENDER
110
CLIP , A 97499920070630 E 06000020080801
120
FASTENER BUTTON
130
COVER STRIP CENTRAL RIGHT DOOR
130
COVER STRIP LEFT CENTRAL DOOR
140
MOUNTING CLAMP SIDE PANEL,081762
140
CLIP PROTECTIVE TRIM ON DRIVER DOOR, RIGHT 45.9 X 24.8 MM, E 02900020071206808
150
CLIP PROTECTIVE TRIM ON DRIVER DOOR, LEFT, A 97499920070630809 E 06000020080801809
160
CLIP COVER STRIP FASTENER, A 97499920070630809 E 06000020080801809
170
SCREW
180
TRIM CLIP SCHUTZLEISTE RIGHT
200
LEDGE LEFT REAR FENDER
200
LEDGE RIGHT REAR FENDER
210
CLIP , A 97499920070630 E 06000020080801
220
FASTENER BUTTON
230
CLIP UPPER PART
240
CLIP LOWER PART
300
PANELING RIGHT SIDE MEMBER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT209L9000 COLORLESS
300
PANELING LEFT SIDE MEMBER, 9999QFT209L9000 COLORLESS
300
PANELING LEFT SIDE MEMBER
300
PANELING RIGHT SIDE MEMBER
310
LEFT SEAL LEFT FRONT FENDER, F 13576220040810
310
RIGHT SEAL RIGHT FRONT FENDER, F 13576220040810
320
SEAL RIGHT REAR FENDER
320
SEAL LEFT REAR FENDER
330
SEAL LEFT
350
PANELING REAR RIGHT
350
PANELING REAR LEFT
360
RIVET COVERING TO SIDE MEMBER
370
ORNAMENTAL COVER REAR LEFT
370
ORNAMENTAL COVER REAR RIGHT
380
TREENAIL
390
BOLT ORNAMENTAL COVER TO DOOR 3.5X13
400
CLIP RIGHT PANELLING
410
CLIP ROCKER PANEL AT FENDER
420
CLIP COVERING TO FENDER,RIGHT
430
GROMMET AT SIDE MEMBER,BOTTOM RIGHT 16,8 MM
430
GROMMET AT LEFT SIDE MEMBER, BOTTOM 17,1 MM
440
EXPANSION RIVET ON TRIM,RIGHT
450
GROMMET LEFT
500
GUIDE SIGN
510
GUIDE SIGNAVANTGARDE
520
MODEL PLATE TO TRIM PANEL, LEFT GRAND EDITION
