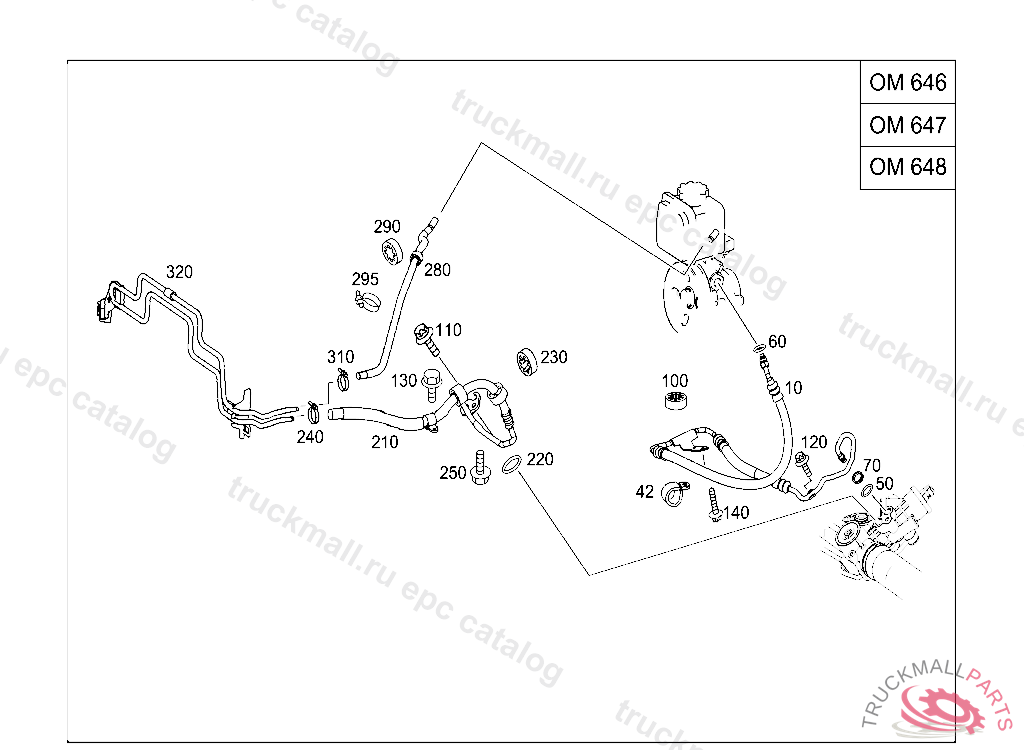

Поз.
Артикул
Описание
10
LINE FROM PUMP TO STEERING
10
LINE FROM PUMP TO STEERING
42
CLAMP DE-AERATION LINE
50
O-RING TO HP HOSE 7.65MM, A 83219320050630 E 02000020070101
60
SEAL RING HIGH-PRESSURE HOSE ON STEERING 7.65 X 1.63 MM
70
SUPPORT RING HIGH PRESSURE LINE TO STEERING, A 83219320050630 E 02000020070101
110
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
120
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
130
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
140
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
210
HOSE FROM STEERING TO COOLING PIPE, Replaced By: A2114605124
210
HOSE FROM STEERING TO COOLING PIPE
210
LINE
220
SEAL RING LOW PRESSURE LINE TO STEERING
230
RUBBER RING
240
HOSE CLAMP FUEL LINE TO SENDER UNIT
250
SCREW
280
HOSE FROM COOLING PIPE TO PUMP
290
BUFFER. RUBBER RING PROTECTION AGAINST SCORING FOR HOSE
295
HOSE CLAMP FUEL LINE TO SENDER UNIT
310
HOSE CLAMP FUEL LINE TO SENDER UNIT
320
COOLING PIPE TO COOLING MODULE
