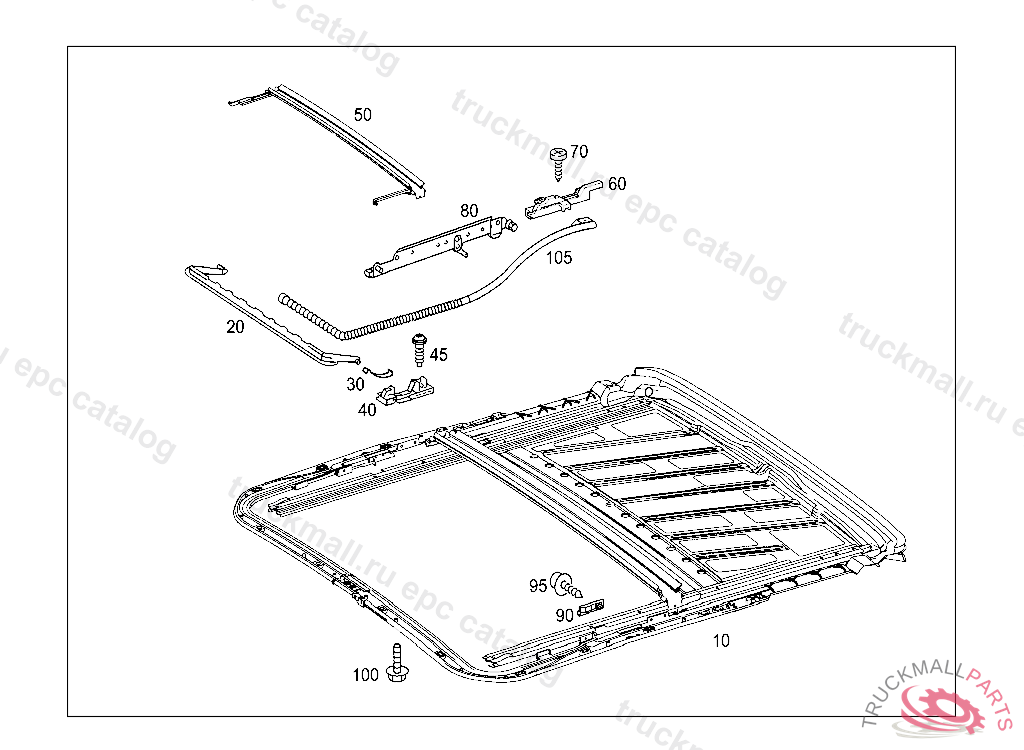

Поз.
Артикул
Описание
10
FRAME WITH DRAFT DEFLECTOR
20
BAFFLE DRAFT DEFLECTOR
30
SPRING AT BOTTOM FRAME, FOR DEFLECTOR
40
GUIDE ACTUATION SLIDING ROOF GUIDING PART AND COVER CONTROL, RIGHT
40
GUIDE ACTUATION SLIDING ROOF GUIDING PART AND COVER CONTROL, LEFT
45
SCREW MOUNTING TO DEFLECTOR,A 141900, Replaced By: N000000003307
50
RAIL WATER DRAIN
60
ANGLE LEFT, E 01872520030630 A 44988420021025 F 00000020030112 R 09958120030328
60
ANGLE RIGHT, A 03842520030604
70
SCREW
80
GUIDE AT LIFTING ANGLE LEFT
80
GUIDE AT LIFTING ANGLE RIGHT
90
COVER LEFT AND RIGHT, TO BE ADAPTED DURING ASSEMBLY
95
SCREW MOUNTING TO DEFLECTOR,A 141900, Replaced By: N000000003307
100
SCREW SELF-TAPPING,943 408671
105
PULL LEFT
105
PULL RIGHT
