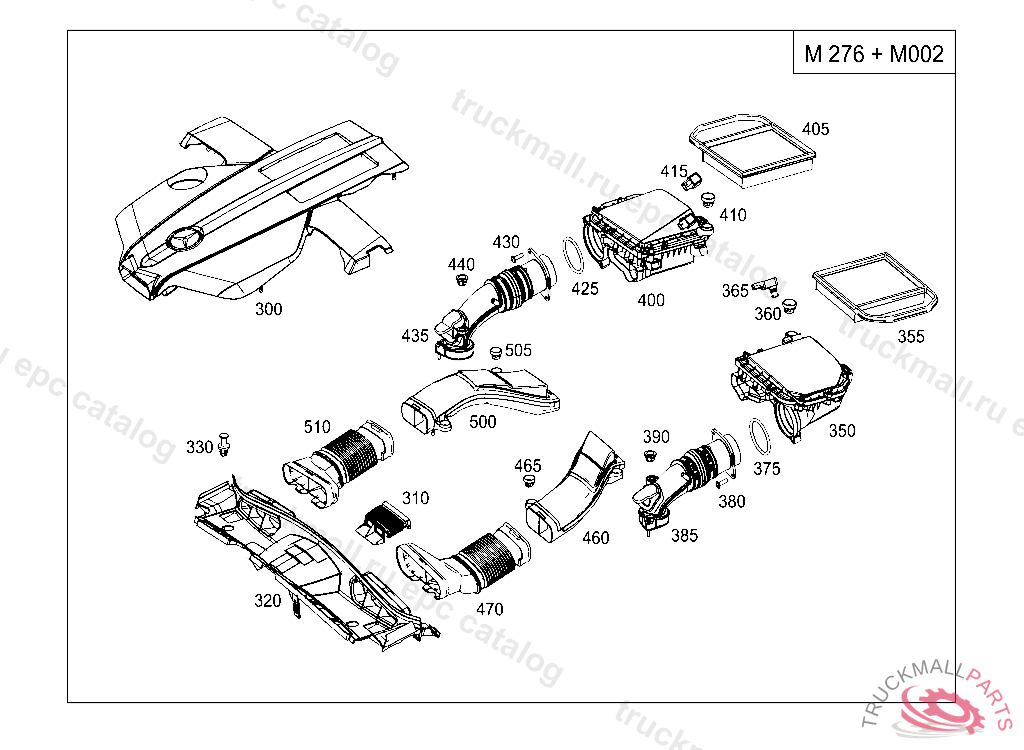

Поз.
Артикул
Описание
300
ENGINE COVER
310
AIR DUCT ON FAN SHROUD
320
COLD AIR INDUCTION TOP
330
EXPANSION RIVET MOUNTING, COVER
350
DAMPER FILTER LEFT
350
DAMPER FILTER LEFT
355
AIR FILTER INSERT RIGHT
360
ELASTOMER BEARING ENGINE COVER TO DAMPER FILTER
365
PRESSURE SENSOR ON AIR CLEANER
375
O-RING BETWEEN DAMPER FILTER AND CLEAN AIR LINE
380
HEXALOBULAR BOLT SPLASH GUARD TO FENDER M6X20
385
CLEAN AIR LINE
390
ELASTOMER BEARING AT BRACKET
400
DAMPER FILTER RIGHT
400
DAMPER FILTER RIGHT
405
AIR FILTER INSERT RIGHT
410
ELASTOMER BEARING ENGINE COVER TO DAMPER FILTER
415
PRESSURE SENSOR ON AIR CLEANER
425
O-RING BETWEEN DAMPER FILTER AND CLEAN AIR LINE
430
HEXALOBULAR BOLT SPLASH GUARD TO FENDER M6X20
435
CLEAN AIR LINE
440
ELASTOMER BEARING AT BRACKET
460
RAW AIR LINE LEFT
465
ELASTOMER BEARING ENGINE COVER TO DAMPER FILTER
470
AIR INTAKE HOSE LEFT
500
RAW AIR LINE RIGHT
505
ELASTOMER BEARING ENGINE COVER TO DAMPER FILTER
510
AIR INTAKE HOSE RIGHT
