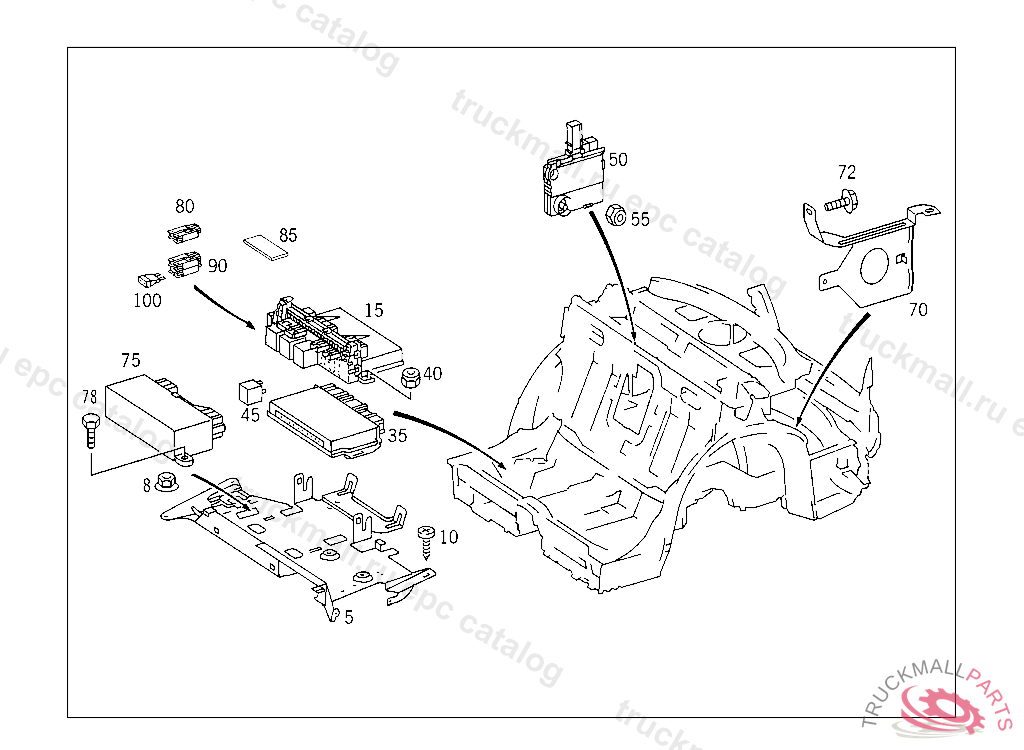

Поз.
Артикул
Описание
5
PLATE CONTROL UNIT, A 04047620030930
5
SUPPORTING PLATE , A 04047620030930
5
PLATE CONTROL UNIT IN REAR, RIGHT, A 04047620030930
8
HEXAGON NUT W COLLAR BRACKET MOUNTING
10
SHEET METAL SCREW BRACKET TO FIRE WALL
15
FUSE BOX CENTRAL ELECTRICAL SYSTEM, REAR
35
CONTROL UNIT SIGNAL EVALUATION MODULE, REAR
40
NUT , Replaced By: N913023006001
45
RELAYETS/ASR/ESP, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
45
RELAY ANTI-TOWING SENSOR (R)
45
RELAY REAR BLIND (Q)
45
RELAY , Replaced By: A0045452905
50
FUSE BOX ABOVE REAR RIGHT WHEELHOUSE
55
NUT , Replaced By: N913023006001
75
CONTROL UNIT REAR HEAD RESTRAINTS, POWER WINDOW REAR SIDE WINDOW AND ASHTRAY LIGHTING
78
SCREW. HEXALOBULAR BOLT COVER TO MOUNTING FRAME M5X12
80
FUSE BOX SINGLE, LEFT 1-SLOT,L6/14
80
FUSE BOX SINGLE, RIGHT L16/35
80
FUSE BOX SINGLE, LEFT L9/18, Replaced By: A0025456401, +001A0035450626
80
FUSE BOX SINGLE L35/64, Replaced By: A0025456501
80
FUSE BOX SINGLE, RIGHT L22/42, Replaced By: A0025456501
80
FUSE BOX SINGLE, LEFT L6/14, Replaced By: A0025456401
80
FUSE BOX SINGLE, RIGHT L16/35, Replaced By: A0025456501
80
FUSE BOX SINGLE, LEFT L5/13, Replaced By: A0025456501
80
FUSE BOX SINGLE L32/59, Replaced By: A0025456501
80
FUSE BOX SINGLE L44/76, Replaced By: A0025456501
80
FUSE BOX SINGLE L37/66, Replaced By: A0025456501
80
FUSE BOX SINGLE L38/67, Replaced By: A0025456501
85
INTERMEDIATE LAYER ANTENNA COMBINER TO LATERAL LEFT COVERING IN LUGGAGE COMPARTMENT
90
FUSE BOX , Replaced By: A0025455901
90
FUSE BOX DOUBLE L42/73-74, Replaced By: A0025455901
90
FUSE BOX DUAL, LEFT L14/26-27, Replaced By: A0025455901
90
FUSE BOX DOUBLE L29/55-56, Replaced By: A0025455901
90
FUSE BOX DOUBLE L2/8-9
90
FUSE BOX DOUBLE L33/60-61
100
FUSE LINK10A
100
FUSE70 A
100
FUSE LINK IN CASE OF SUBSEQUENT INSTALLATION
100
FUSE , Replaced By: A0025451034
100
FUSE LINK FUSE BOX 40 A
100
FUSE LINK20 A
100
FUSE LINK20 A
100
FUSE LINK30 A, Replaced By: N000000007654
100
FUSE LINKE-40
100
FUSE40A, Replaced By: N910153000000
100
FUSE LINK40 A (MAXI)
100
FUSE IN CASE OF SUBSEQUENT INSTALLATION, Replaced By: N000000004202
100
FUSE10 A
100
FUSE20 A, MINOR REPAIRS, Replaced By: N000000004206
100
FUSE25 A
100
FUSE , Replaced By: A0025451334
100
FUSE LINK60A (MAXI), Replaced By: N000000004217
100
FUSE MODULE 7.5 A
100
FUSE LINK HEATER FOR WIPER REST POSITION 30 A
100
FUSE LINK50 A
100
FUSE LINK NATURAL WHITE 25A,V 202043
