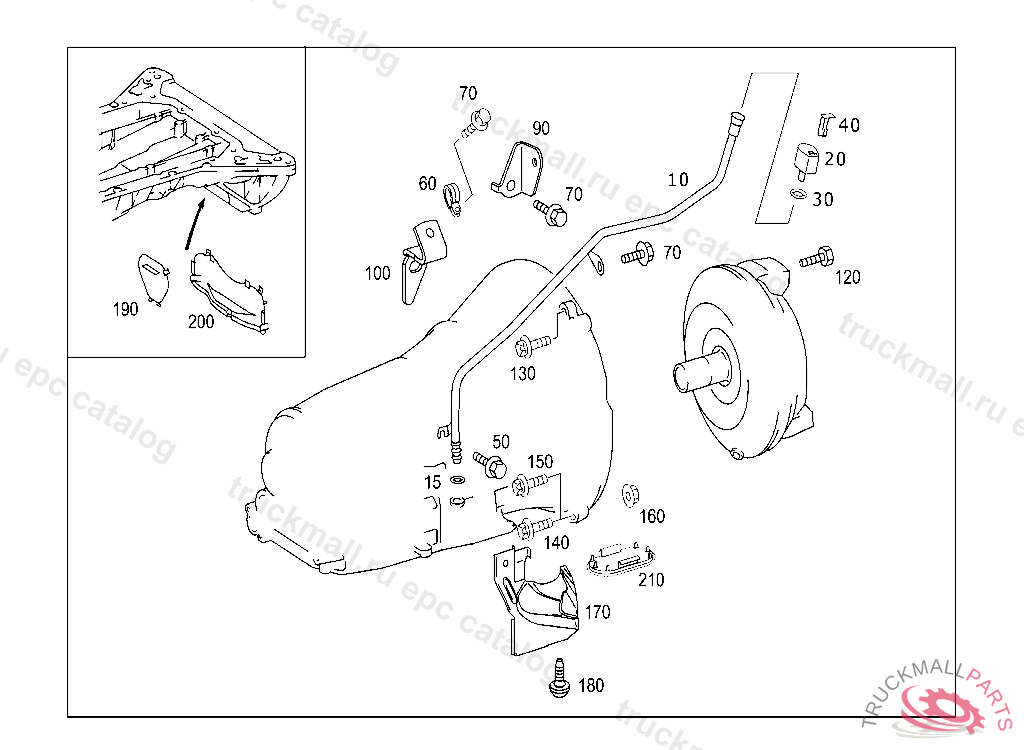

Поз.
Артикул
Описание
10
OIL FILLER PIPE TRANSMISSION
15
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
20
COVER OIL FILLER PIPE
30
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
40
DOWEL PIN OIL FILLER PIPE
50
HEXAGON HEAD BOLT
60
MOUNTING CLAMP OIL FILLER TO ENGINE
70
HEXAGON HEAD BOLT
90
BRACKET BRACKET TO ENGINE
120
SCREWM 8X18
130
SCREW PLATE TO FRAME M 10X45
140
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
150
SCREW PLATE TO FRAME M 10X45
160
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
170
COVER AT TRANSMISSION CASE, A 00008819990924
180
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
190
COVER MOUNTING HOLE IN OIL PAN
210
CAP CAP ASSEMBLY OPENING IN OIL PAN
