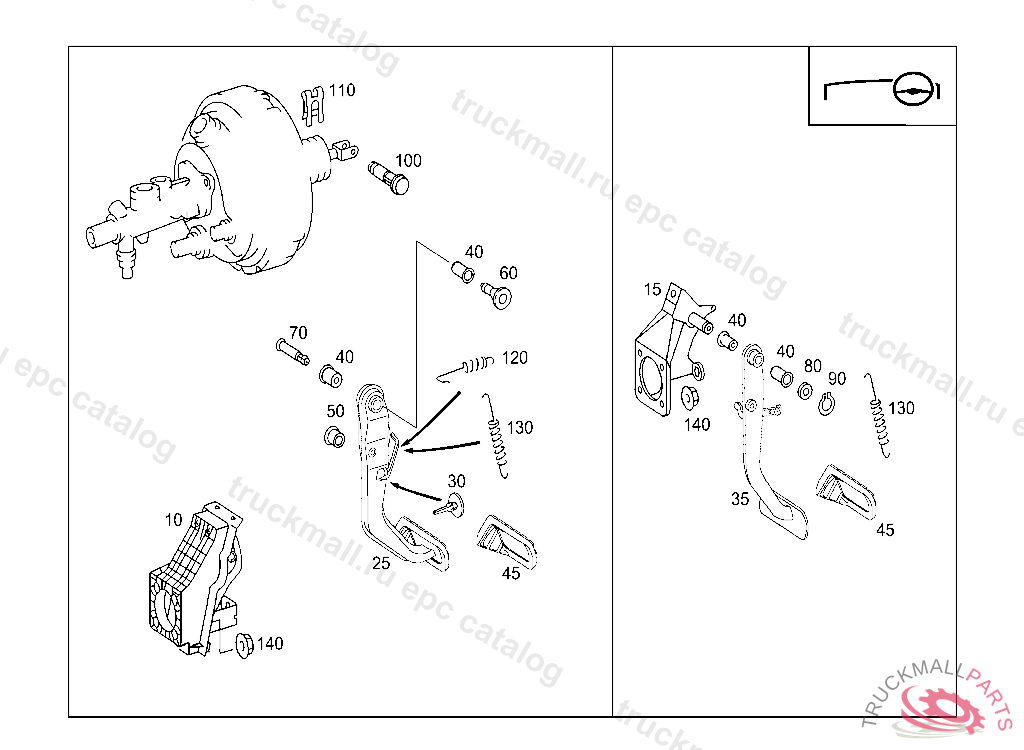

CL 55 AMG KOMPRESSOR - 215.374 - 29 PEDAL ASSEMBLY
Поз.
Артикул
Описание
10
BEARING BRACKET
15
BEARING BRACKET
25
PEDAL
25
BRAKE PEDAL
30
BUFFER STOP AT BEARING BRACKET
35
PEDAL
35
BRAKE PEDAL , A 03627320031028803
40
BUSHING BRAKE PEDAL
45
PAD BRAKE PEDAL
45
PAD TO BRAKE PEDAL
50
BUSHING PEDAL ASSEMBLY
60
PLUG
70
PIN CLUTCH PEDAL TO BEARING BRACKET
80
WASHER PEDALS TO PIVOT PINS
90
LOCK STOP TO BEARING BRACKET
100
PIN BRAKE PEDAL TO BRAKE BOOSTER
110
LOCK PULL TO FASTENER
130
SPRING BRAKE PEDAL RELEASE SPRING
130
SPRING BRAKE PEDAL RELEASE SPRING
140
NUT HORN TO BRACKET M8
