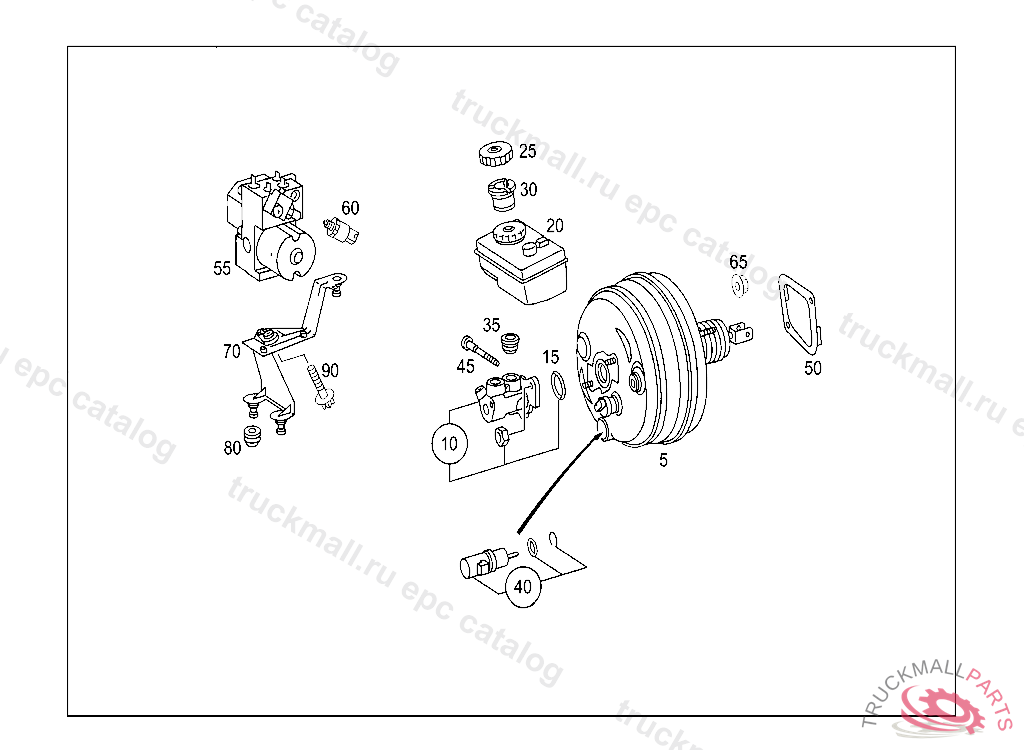

CL 55 AMG KOMPRESSOR - 215.374 - 42 BRAKES

5

BRAKE BOOSTER ASSEMBLY

10

BRAKE MASTER CYLINDER

15

SEAL RING

20

DASHPOT

25

COVER

30

STRAINER

35

BUSHING

40

SENDER UNIT DIAPHRAGM POSITION SENSOR,BAS

45

TRUNNION SCREW. SCREW TWO-WAY VALVE,CONNECTION "1.1",4 428564

50

GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL TO 004 430 00 30/08 30

55

HYDRAULIC UNITESP, A 00515420000630800

60

SENDER UNITTO A 004 431 10 12, J 48100520010301801

65

NUT HORN TO BRACKET M8

70

BRACKET HYDRAULIC UNIT

80

ELASTOMER BEARING. RUBBER BUFFER HYDRAULIC UNIT TO BRACKET, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808

90

HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME M 10X30
