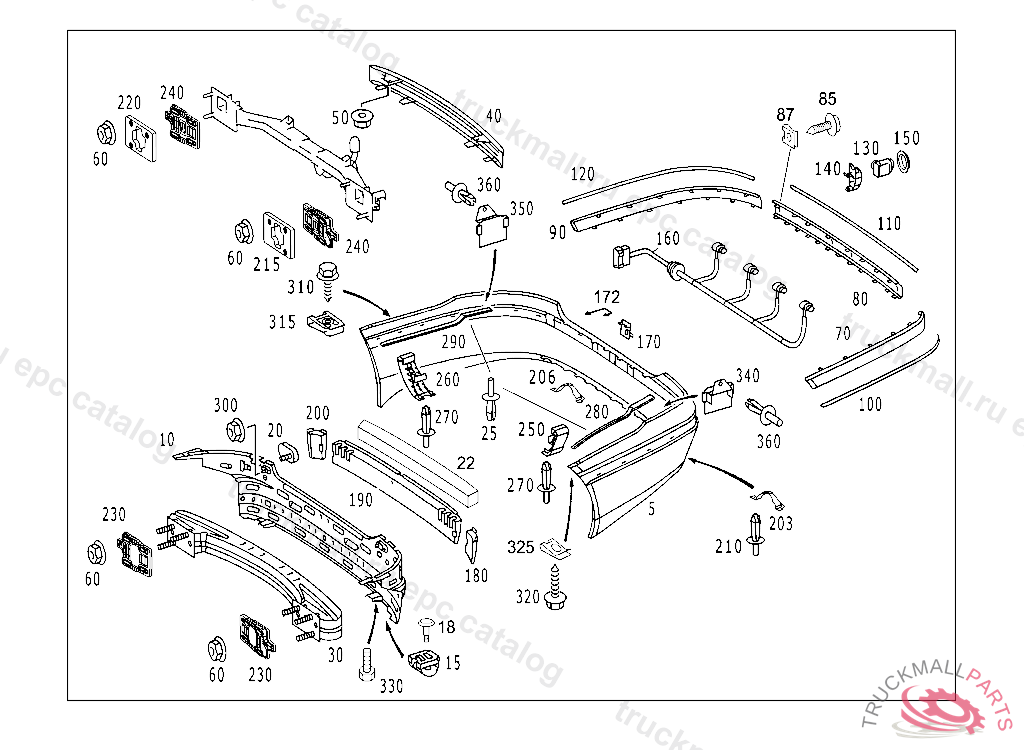

Поз.
Артикул
Описание
5
PANELING REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION
5
PANELING REAR BUMPER, TO BE PAINTED PRIOR TO INSTALLATION
10
INTERIOR PART REAR BUMPER
15
HOLDDOWN CLIP ORNAMENTAL COVER TO BUMPER
18
BOLT W HEAD A GROOVE
20
PLATE
22
INTERMEDIATE PIECE TO ENERGY-ABSORBING UNIT, E 01938620050630805 F 59396620040531805 R 15626520040630805
25
EXPANSION RIVET REINFORCEMENT FASTENING 4 MM
30
CROSS MEMBER
30
CROSS MEMBER REAR BUMPER
30
CROSS MEMBER REAR BUMPER
40
CROSS MEMBER
50
NUT-AND-WASHER ASSEMBLY RUBBER MOUNTING TO FRAME M8
60
NUT-AND-WASHER ASSEMBLY REINFORCEMENT TO SIDE MEMBER M10, A 97499920070630809 E 06000020080901809
70
RAIL LEFT
80
RAIL CENTRAL
80
PROTECTIVE STRIP CENTRAL
85
SCREW , Replaced By: N000000000521
87
NUT RETAINER
90
RAIL RIGHT
100
CHROMIUM COVER LEFT
110
CHROMIUM COVER CENTRAL
120
CHROMIUM COVER RIGHT
130
DISTANCE SENSOR , TO BE PAINTED PRIOR TO INSTALLATION 9999QFT168L9000 COLORLESS, Replaced By: A0045428718
140
HOUSING , A 37260220020930803
150
SPACER RING PARKTRONIC SYSTEM, A 55589720030630804 E 02000020070101804 A 97499920070630 E 06000020080901809
160
WIRING HARNESS PARKTRONIC SYSTEM
170
COVER
170
FLAP TOWING EYE
172
REBOUND STRAP FLAP FOR TOW HOOK
180
ENERGY-ABSORBING UNIT LEFT
180
ENERGY-ABSORBING UNIT LEFT
190
ENERGY-ABSORBING UNIT CENTRAL
200
ENERGY-ABSORBING UNIT RIGHT
200
ENERGY-ABSORBING UNIT RIGHT
215
PLATE LEFT
220
PLATE LEFT
230
KEY BETWEEN CROSSMEMBER AND REAR END CENTER ASSY., A 02192020010905
240
KEY LEFT AND RIGHT
250
GUIDE LEFT
260
GUIDE RIGHT
270
RIVET
280
REINFORCEMENT LEFT
290
REINFORCEMENT RIGHT
300
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
310
BOLT. SCREW MOUNTING PARTS 6.3X22MM
315
SHEET METAL NUT BUMPER BRACKET TO REAR END CENTRAL PART,LATERAL
320
TAPPING SCREW
320
SCREW
325
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
330
SCREW PUMP TO BRACKET
340
BRACKET LEFT
350
BRACKET RIGHT
360
RIVET AIR/WATER DUCT TO CROSS MEMBER, 1B63
