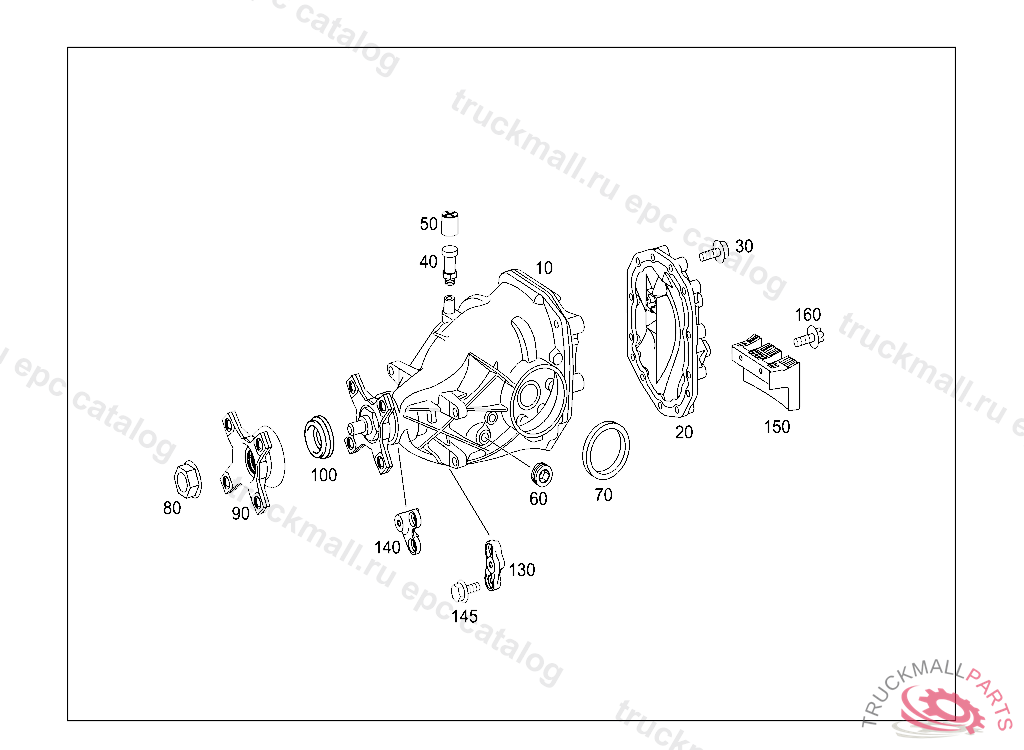

Поз.
Артикул
Описание
10
REAR AXLE DIFFERENTIAL1:2.82
20
END COVER
30
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
40
VENTILATION NECK , Replaced By: A1663510265
50
BREATHER
60
SCREW PLUG BELL HOUSING
70
SEAL RING LEFT AND RIGHT AXLE SHAFT, IMPORTANT: SEALING RING AND PROTECTIVE RING MUST ALWAYS BE EXCHANGED TOGETHER!
80
NUT JOINT FLANGE M29X1.5
90
FLANGE120 MM
100
SEAL RING FLANGE
130
ADAPTER REAR AXLE TRANSVERSE GUIDE,LEFT
140
ADAPTER REAR AXLE TRANSVERSE GUIDE,RIGHT
145
HEXAGON HEAD BOLT REAR AXLE TRANSVERSE GUIDE
