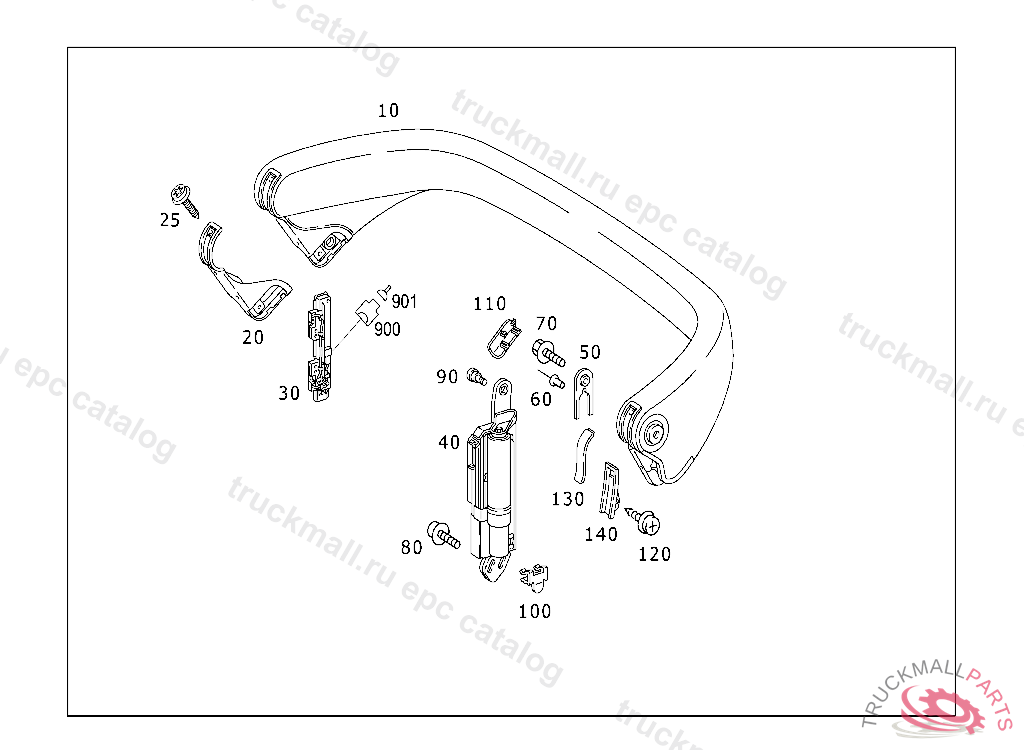

Поз.
Артикул
Описание
10
CLAMP ROLL-OVER BAR
10
CLAMP ROLL-OVER BAR
10
CLAMP ROLL-OVER BAR
20
BOOT TO ROLL BAR RIGHT
20
BOOT TO ROLL BAR LEFT
25
BOLT FOR BOOT
30
SWITCH IN COVER SUPPORTING ELEMENT
40
SUPPORT LEFT, F 12869820060929
40
SUPPORT RIGHT, F 12869820060929
40
STAY RIGHT, F 12869720060929
40
STAY LEFT, F 12869720060929
50
PLATE TO B-PILLAR
60
RIVET , Replaced By: N910003004123
70
HEXAGON HEAD BOLT AIR DEHYDRATOR TO BRACKET M12X55,V 207570
80
BOLT SUPPORTING ELEMENT TO LONGITUDINAL MEMBER
90
BOLT ROLL BAR TO SUPPORTING ELEMENT
100
CLIP WORKING CYLINDER TO SUPPORTING ELEMENT
110
CAP TO ROLL BAR RIGHT
110
CAP TO ROLL BAR LEFT
120
TAPPING SCREW BRACKET TO SUPPORT
130
COVER GUIDE TO ROLL BAR
140
GUIDE COVER TO ROLL BAR LEFT
140
GUIDE COVER TO ROLL BAR RIGHT
900
PIN BUSHING HOUSING WARNING DEVICE
901
CONTACT BUSHINGR 27, 0.75 MM2
