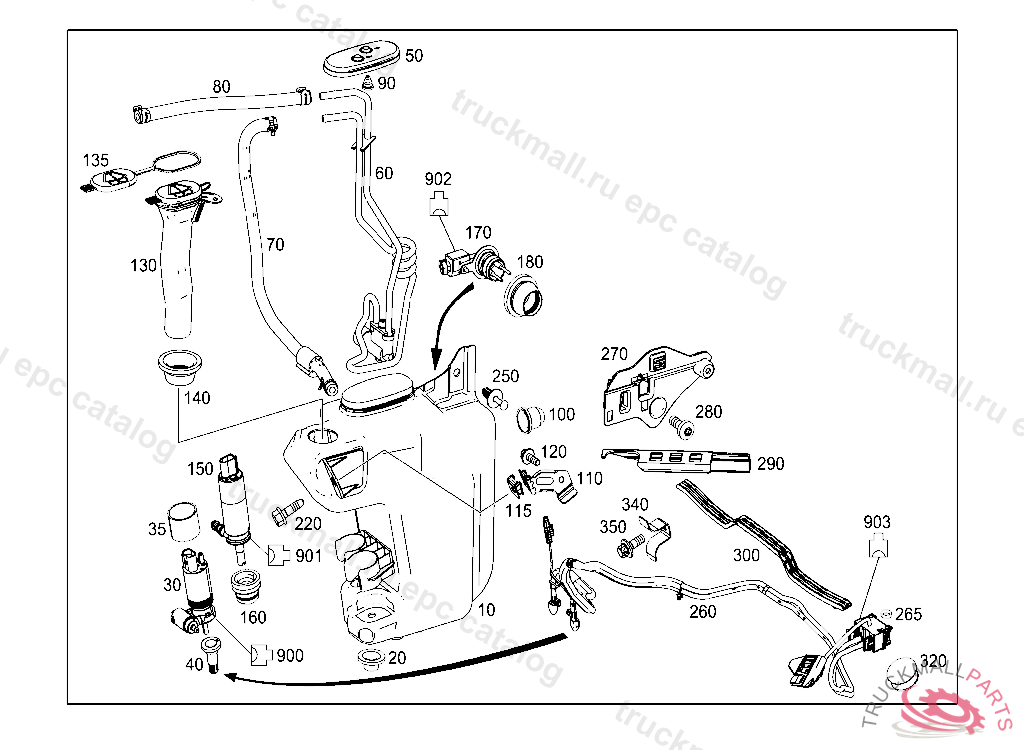

Поз.
Артикул
Описание
10
WINDSCREEN WASH BOTTLE
10
WINDSCREEN WASH BOTTLE
20
GROMMET LOWER FASTENING
30
CENTRIFUGAL PUMP FOR WINDSHIELD WASHER
35
DAMPENING PUMP
40
FORMED GROMMET BETWEEN RESERVOIR AND PUMP
50
COVER
60
HEAT EXCHANGER
70
MOLDED HOSE TO RESERVOIR
80
MOLDED HOSE TO RESERVOIR
90
GROMMET
100
GROMMET REAR FASTENING
110
RETAINING TAB MOUNTING, TANK
115
LOCK NUT. LOCK PANELLING TO BUMPER
120
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
130
FILLER NECK
135
COVER COVER, 5E52QFT246L0105 BLUE
140
SEAL FILLER NECK
150
CENTRIFUGAL PUMP HEADLAMP CLEANING SYSTEM
160
GROMMET FROM PUMP INTO RESERVOIR
170
SWITCH FOR WASHING WATER STATUS
180
SEAL FILLER PIPE
220
HEXALOBULAR BOLT. SCREW
250
RIVET COVERING TO SIDE MEMBER
260
HOSE ASSEMBLY HEATED
260
HOSE ASSEMBLY UNHEATED
260
HOSE ASSEMBLY HEATED
260
HOSE ASSEMBLY UNHEATED
265
GUIDE TUBE TO LINE, NO LONGER AVAILABLE, ORDER RANGE OF DELIVERY
270
BRACKET HOSE LINE ATTACHMENT
280
HEXALOBULAR BOLT PLATE TO FRAME-TYPE INTEGRAL SUPPORT
290
RETAINING TAB HOSE LINE ATTACHMENT
300
RETAINING PLATE FRONT PASSENGER WIPER ARM HOSE LINE
320
BRACKET DRIVER WIPER ARM HOSE LINE
340
RETAINING PLATE HOSE LINE GUIDE
340
BRACKET HOSE LINE GUIDE, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A2318240111
350
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
900
PIN BUSHING HOUSING INDICATOR SWITCH,POWER TAKE-OFF S23.2/.3, 2 PIN
901
PIN BUSHING HOUSING. PLUG SOCKET SOLENOID VALVE,POWER TAKE-OFF Y46.2/.3 2PIN
902
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
903
COUPLING HOUSING POWER CLOSING SYSTEM 4-PIN,M14/21
