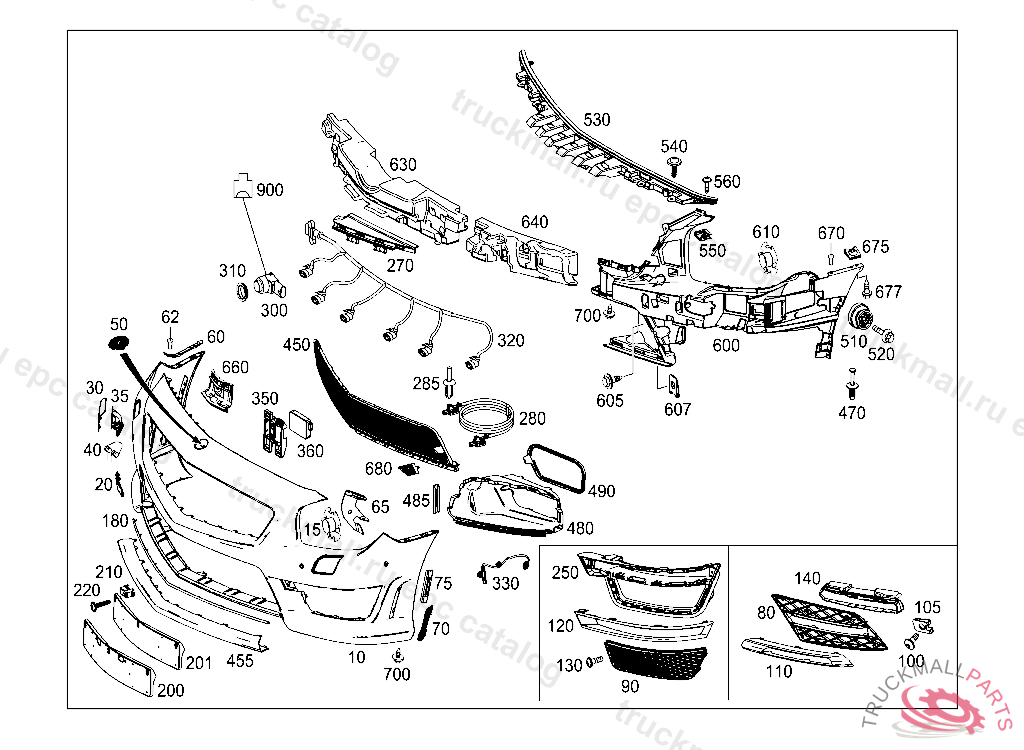

Поз.
Артикул
Описание
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT231L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, F 20121130 TO BE PAINTED PRIOR TO INSTALLATION 9999QFT231L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT231L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT231L9000 COLORLESS
20
COVER TOWING EYE TOWING EYE, 9999QFT231L9000 COLORLESS
20
COVER TOWING EYE TOWING EYE
30
COVER HEADLAMP WIPER,RIGHT
30
COVER HEADLAMP CLEANING HEADLAMP WIPER,LEFT
35
RETAINING CLIP HEADLAMP WIPER,RIGHT
35
RETAINING CLIP HEADLAMP WIPER,LEFT
50
COMPANY SIGN AT BUMPER
60
MOUNTING RAIL BUMPER ON FENDER, RIGHT
60
MOUNTING RAIL BUMPER ON FENDER, LEFT
62
BLIND RIVET AT COVERING
65
ATTACHMENT ANGLE BRACKET FASTENING, BUMPER TO RIGHT FENDER
65
ATTACHMENT ANGLE BRACKET FASTENING, BUMPER TO LEFT FENDER
80
COVER BUMPER AREA DAYTIME RUNNING LAMPS LEFT
80
COVER BUMPER AREA DAYTIME RUNNING LAMPS RIGHT
80
COVER BUMPER AREA FRONT BOTTOM RIGHT
80
COVER BUMPER AREA FRONT LEFT BOTTOM
100
TAPPING SCREW CONTROL UNIT TO FIRE WALL
105
SPRING NUT
110
COVER BUMPER AREA RIGHT
110
ORNAMENTAL MOLDING RIGHT
110
ORNAMENTAL MOLDING LEFT
110
COVER BUMPER AREA LEFT
140
FRAME SEGMENT DAYTIME RUNNING LAMPS RIGHT
140
FRAME SEGMENT DAYTIME RUNNING LAMPS LEFT
180
COVER BUMPER AREA FRONT BOTTOM,CENTER
200
LICENSE PLATE MOLDING
200
LICENSE PLATE MOLDING
201
LICENSE PLATE MOLDING
201
LICENSE PLATE MOLDING
201
LICENSE PLATE MOLDING
201
LICENSE PLATE MOLDING
201
LICENSE PLATE MOLDING
201
LICENSE PLATE MOLDING
201
LICENSE PLATE MOLDING
201
LICENSE PLATE MOLDING
201
LICENSE PLATE MOLDING
210
LOCK NUT. SPRING NUT STEP TO ENTRANCE
210
BRACKET LICENCE PLATE TRIM
220
SHEET METAL SCREW ORNAMENTAL COVER TO BUMPER
220
BOLT LICENCE PLATE TRIM
280
PRESSURE SENSOR PEDESTRIAN PROTECTION
285
EXPANSION RIVET ORNAMENTAL COVER TO BUMPER
300
DISTANCE SENSOR OUTSIDE LEFT AND RIGHT, TO BE PAINTED PRIOR TO INSTALLATION
300
DISTANCE SENSOR PARKTRONIC SYSTEM, TO BE PAINTED PRIOR TO INSTALLATION
310
SPACER RING PARKTRONIC SYSTEM
310
SPACER RING SENSOR
320
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM/ACTIVE PARKING GUIDANCE
320
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM/ACTIVE PARKING GUIDANCE
330
ELECTRICAL WIRING HARNESS ADAPTER FOR RIGHT DAYTIME RUNNING LIGHT
350
BRACKET SENSOR RIGHT
350
BRACKET SENSOR LEFT
360
RADAR SENSOR PROXIMITY-CONTROLLED CRUISE CONTROL, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
360
RADAR SENSOR PROXIMITY-CONTROLLED CRUISE CONTROL, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
450
COVER BUMPER AREA CENTRAL BOTTOM
450
COVER BUMPER AREA CENTRAL BOTTOM
470
RIVET SEALING LIP TO RADIATOR
470
EXPANSION RIVET ORNAMENTAL COVER TO BUMPER
480
AIR DUCT FRONT RIGHT
480
AIR DUCT FRONT LEFT
485
MOUNTING CLAMP BUMPER LOWER SECTION, J 53092220070910808
490
COVER MOLDING FRONT RIGHT
490
COVER MOLDING FRONT LEFT
510
GUIDE RIGHT
520
HEXALOBULAR BOLT. SCREW BATTERY CABLE TO BRACKET M6X40
530
CLAMPING RAIL TOP CENTRAL
540
FILLISTER HEAD SCREW BUMPER TO SUPPORT TOP
550
SHEET METAL NUT. NUT RETAINER
560
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
600
BASIC MOUNTING FOR BUMPER FRONT LEFT
600
BASIC MOUNTING FOR BUMPER FRONT RIGHT
600
BASIC MOUNTING FOR BUMPER FRONT RIGHT
600
BASIC MOUNTING FOR BUMPER FRONT LEFT
605
TAPPING SCREW SPLASH GUARD TO FENDER 6.3X22
605
SCREW-AND-WASHER ASSEMBLY BUMPER TO FRONT MODULE M6X30, A 02790320110228
607
LOCK NUT. SPRING NUT HEADLINER TO BODY
610
EYE AT INNER MEMBER
630
IMPACT ABSORBER CENTRAL
630
IMPACT ABSORBER CENTRAL
630
IMPACT ABSORBER CENTRAL
640
IMPACT ABSORBER FRONT LEFT
640
IMPACT ABSORBER FRONT RIGHT
640
IMPACT ABSORBER FRONT LEFT
640
IMPACT ABSORBER FRONT RIGHT
640
IMPACT ABSORBER FRONT RIGHT
640
IMPACT ABSORBER FRONT LEFT
670
BLIND RIVET AT COVERING
675
LOCK NUT BUMPER, BOTTOM SECTION 0,5-2,5MM
677
TAPPING SCREW
700
TAPPING SCREW MOUNTING PARTS 4.8X19
700
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
900
CLUTCH HOUSING FUEL SUPPLY, LEFT B4/1
900
CLUTCH VACUUM SENSOR IN BRAKE UNIT 3-PIN MLK1.2,B64/1
