Поз.
Артикул
Описание

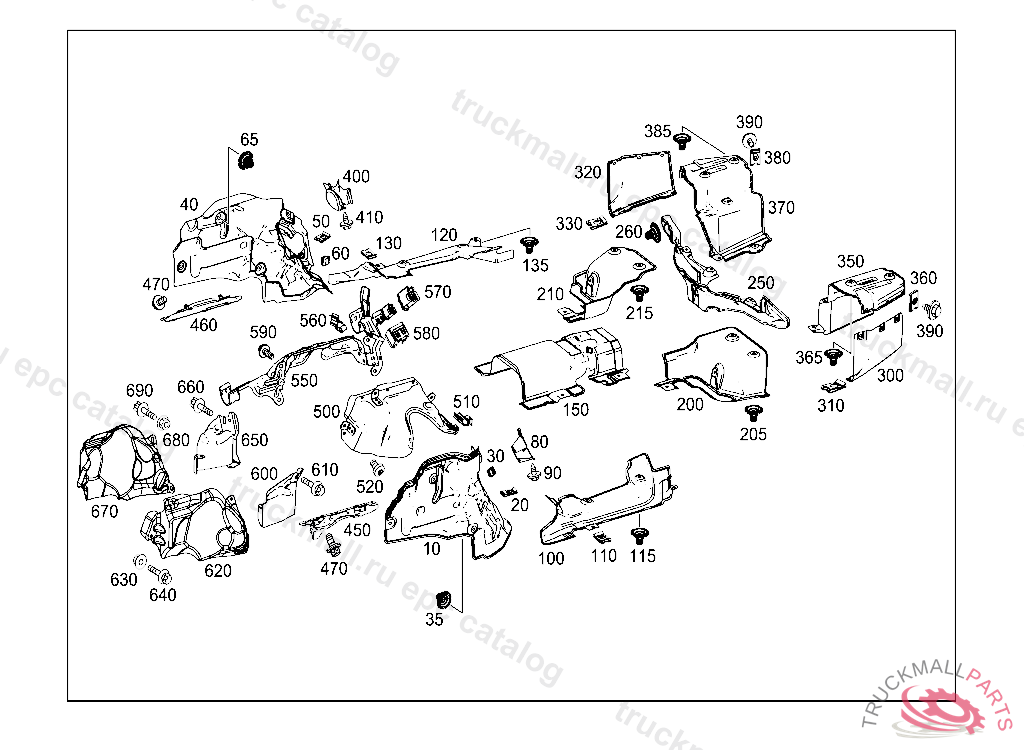

10
SHIELDING LEFT SIDE MEMBER
20
LOCK RIGHT PANELLING TO SIDE MEMBER
30
CABLE CLAMP. CLIP , Replaced By: A0009881778
35
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
40
SHIELDING RIGHT SIDE MEMBER
50
LOCK RIGHT PANELLING TO SIDE MEMBER
60
CABLE CLAMP. CLIP , Replaced By: A0009881778
65
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
80
SHIELDING STEERING COUPLING
80
SHIELDING STEERING COUPLING
90
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
100
SHIELDING TO MAIN FLOOR LEFT
110
LOCK RIGHT PANELLING TO SIDE MEMBER
115
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
120
SHIELDING FLOOR,RIGHT
130
LOCK RIGHT PANELLING TO SIDE MEMBER
135
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
150
SHIELDING OVER CATALYST
200
SHIELDING OVER LEFT CENTER MUFFLER
205
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
210
SHIELDING OVER RIGHT CENTER MUFFLER
215
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
250
SHIELDING SPARE WHEEL WELL
260
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
300
SHIELDING REAR MUFFLER, LEFT, OUTER
310
LOCK RIGHT PANELLING TO SIDE MEMBER
320
SHIELDING REAR MUFFLER, RIGHT, OUTER
330
LOCK RIGHT PANELLING TO SIDE MEMBER
350
SHIELDING REAR MUFFLER, LEFT, INSIDE
360
LOCK RIGHT PANELLING TO SIDE MEMBER
365
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
370
SHIELDING REAR MUFFLER RIGHT, INSIDE
380
LOCK RIGHT PANELLING TO SIDE MEMBER
385
HEXAGON NUT W COLLAR CENTER MUFFLER SHIELD AT MAIN FLOOR
390
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
400
SHIELDING TO LONGITUDINAL MEMBER SHIELDING
400
SHIELDING TO LONGITUDINAL MEMBER SHIELDING
410
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
500
SCREENING PLATE LEFT
510
LINE FASTENER
520
HEXAGON HEAD BOLT LINE MOUNTING M6X10
550
SCREENING PLATE RIGHT
560
CABLE HOLDER
570
SPRING CLAMP FOR SENSOR CONNECTOR 28X24 MM
580
SPRING CLAMP FOR 4-PIN SENSOR
590
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
600
SCREENING PLATE OXYGEN SENSOR SEPARATION POINT
610
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
650
SCREENING PLATE CONNECTING POINT O2 SENSOR, RIGHT
660
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
