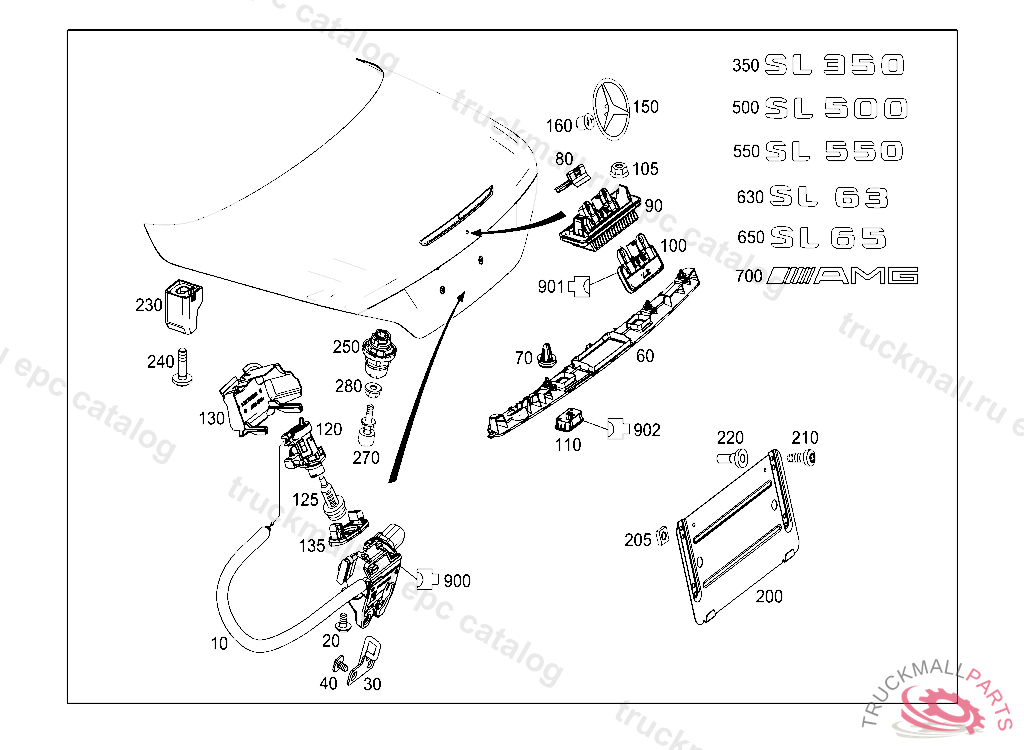

Поз.
Артикул
Описание
10
LOCK REAR LID
20
SCREW , Replaced By: A1409842829
30
U-SHAPED STRIKER TO REAR END CENTER ASSEMBLY
40
BOLT HINGE TO ENGINE HOOD M6X11
60
HANDLE MOLDING ON REAR LID
70
PANELING CLIP DOOR TRIM MOUNTING LEFT
80
BRACKET REAR-VIEW CAMERA
90
RELEASE HANDLE OUTSIDE
90
RELEASE HANDLE OUTSIDE
100
PUSH-BUTTON SWITCH MOULDING TYPE HANDLE, J 53092220070910808
105
NUT , Replaced By: N913023006001
110
SWITCH REMOTE TRUNK LOCKING
110
SWITCH REMOTE TRUNK LOCKING WITH KEYLESS GO
120
UNLOCKING MECHANICAL FOR EMERGENCY ACTUATION
120
UNLOCKING MECHANICAL FOR EMERGENCY ACTUATION
125
TUMBLER , THEFT-RELEVANT PART
130
COVER, RELEASE UNLOCKING
135
BRACKET MECHANICAL FOR EMERGENCY ACTUATION
150
MERCEDES STAR ON REAR LID
160
GROMMET MERCEDES STAR TO REAR LID
200
MOUNTING PLATE DESIGNATION
200
FASTENING PLATE AT REAR PANEL DOOR
205
NUT ATTACHMENT PLATE
210
HEXALOBULAR BOLT PLATE TO REAR LID M5X16
220
RIVETED NUT LICENSE-PLATE MOUNTING
230
SUPPORT TRUNK LID, RIGHT
230
SUPPORT TRUNK LID, RIGHT
230
SUPPORT TRUNK LID, LEFT
230
SUPPORT TRUNK LID, LEFT
240
HEXALOBULAR BOLT BUMPER COVERING M6X20
240
HEXALOBULAR BOLT BRACKET TO CONSOLE M6X16,V 224423
250
RETAINER WEDGE AT TRUNK LID, BOTTOM
270
BUFFER LEFT, FROM CHASSIS: 010 077937
280
NUT , Replaced By: N913023006001
500
TYPE DESIGNATIONSL500,F 087501
550
MODEL PLATESL 550
900
CLUTCH PLUG CONNECTION FOR FUEL PUMP WIRING HARNESS 7-PIN SLK2.8, MLK1.2,X36/3
901
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
902
PLUGBUSKNOTEN (DACH)
